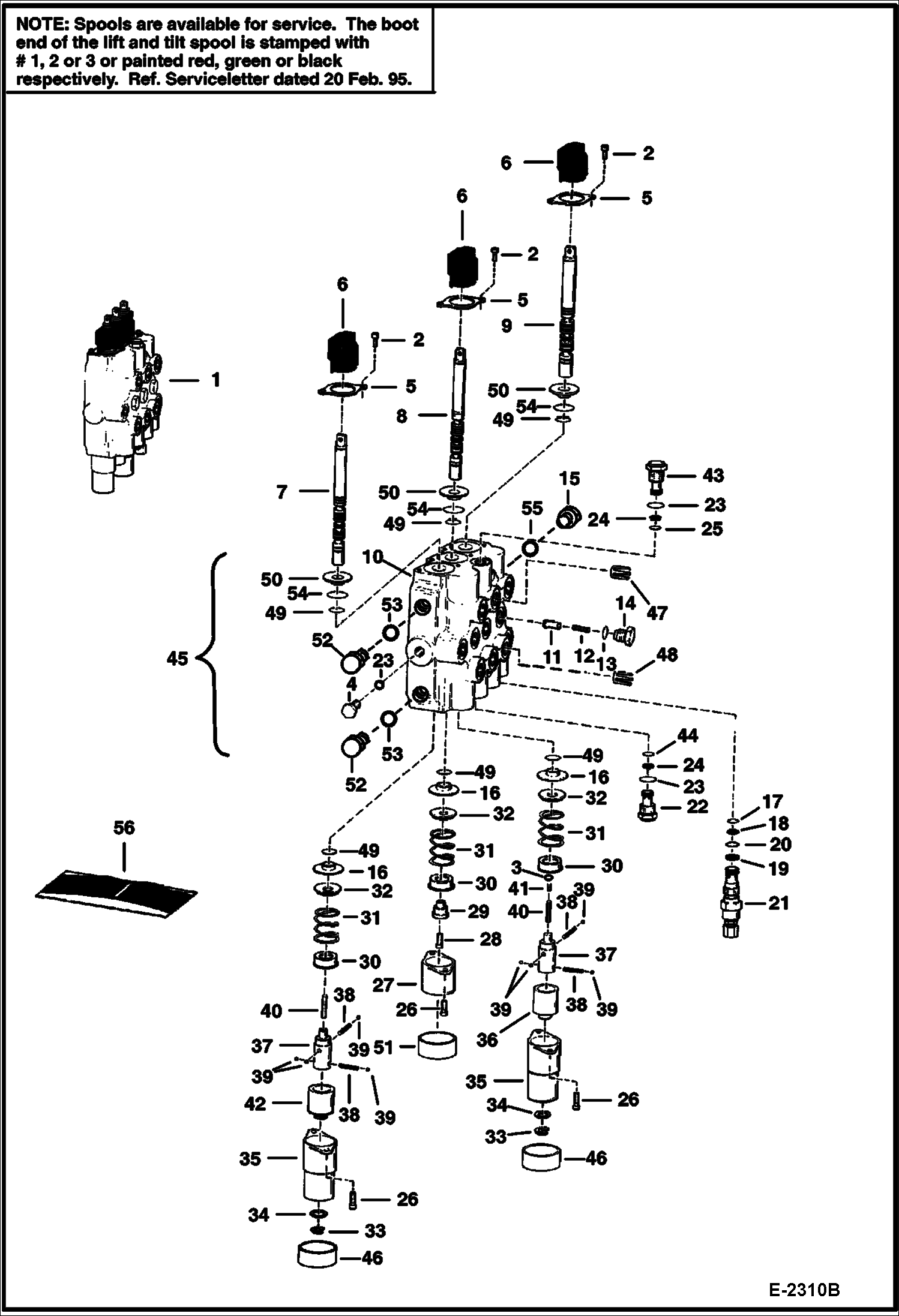

Запчасти Bobcat 500s HYDRAULIC CONTROL VALVE (Service Valve) HYDRAULIC SYSTEM

1

VALVE ASSY (SERVICE) See BTI347 NLA - Ref. 2 - 55 - Was 6815477 - A

1

7229297

VALVE, CONTROL SERVICE See BTI347 Ref. 2 - 55

2

29G412

BOLT

3

54K20002

O'RING 10

4

47K7

PLUG W/Ref. 23 - tapered boss face

5

6589564

RETAINER Was 6599564 - D

6

6587763

BOOT

7

6589663

SPOOL auxiliary

8

SPOOL NLA - Tilt - #1 or red - order 7108242 - Was 6677662 - A

8

SPOOL NLA - Tilt - #2 or green - order 7108242 - Was 6677663 - A

8

7108242

SPOOL, TILT

9

SPOOL NLA - Lift - #1 or red - order 7108251 - Was 6677660 - A

9

SPOOL NLA - Lift - #2 or green - order 7108251 - Was 6677661 - A

9

7108251

SPOOL, LIFT

10

BODY NSS

11

6592115

SEAT

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT

15

90K8

PLUG flat boss face - Was 90KV00008B - A

16

6595663

BUSHING

17

O-RING NSS

18

WASHER NSS

19

O-RING NSS

20

WASHER NSS

21

6676195

VALVE main relief - W/Ref. 17-20 - Was 6672507 - B

22

6667549

VALVE anti-cav. check - W/Ref. 23, 24 & 44

23

79K10

O RING 10 flat boss face

24

80K14

BACK-UP WASHER Was 73K000014B - B

25

58K014

O-RING 10 back-up washer required

25

6677106

O-RING back up washer NOT required

26

29G416

BOLT Was 6814021 - A

27

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

28

30G416

BOLT Was 30G000418B - D

29

6592109

ADAPTER

30

6592100

COLLAR

31

6587580

SPRING

32

7211397

WASHER, SPRING Was 6587523 - A

33

799119

RING

34

6592098

WASHER

35

6589226

COVER, END 0.63'' flange

36

6531270

SLEEVE, DETENT lift

37

6587575

ADAPTER

38

6592107

SPRING

39

6592105

BALL

40

6586918

SCREW

41

6596807

PLUG plastic - 0.46'' long

42

6595027

SLEEVE auxiliary

43

6592720

PLUG W/Ref. 23-25

44

25K20016

O RING 10

45

SHORT BLOCK NLA - Order Ref. 1

46

6660644

CAP

47

6587315

ORIFICE 0.11

48

6587304

ORIFICE 0.125

49

6683274

SEAL, SPOOL 10 See BTI374 - spool - Was 6665846 - A

50

6589565

BUSHING

51

6662848

CAP

52

6816855

PLUG Was 6534973 - A

53

79K7

O RING 10

54

1K127

O-RING 10 Was 93K127 - A

55

79K12

O RING 10 flat boss face

55

99K12

O RING tapered boss face

56

6816251

KIT, SEAL See BTI374 - Ref. 2, 3, 6, 13, 17-20, 23-25, 41, 44, 49 & 54 - Was 6803606 - A

56

6816250

KIT, SEAL See BTI374 - Ref. 2, 6, 26, 41, 49 & 54 - for one spool - Was 6803605 - A

56

6661328

SEAL KIT Ref. 17-20

56

6809425

SEAL KIT Ref. 13 & 23-25 - Was 6586461 - A
