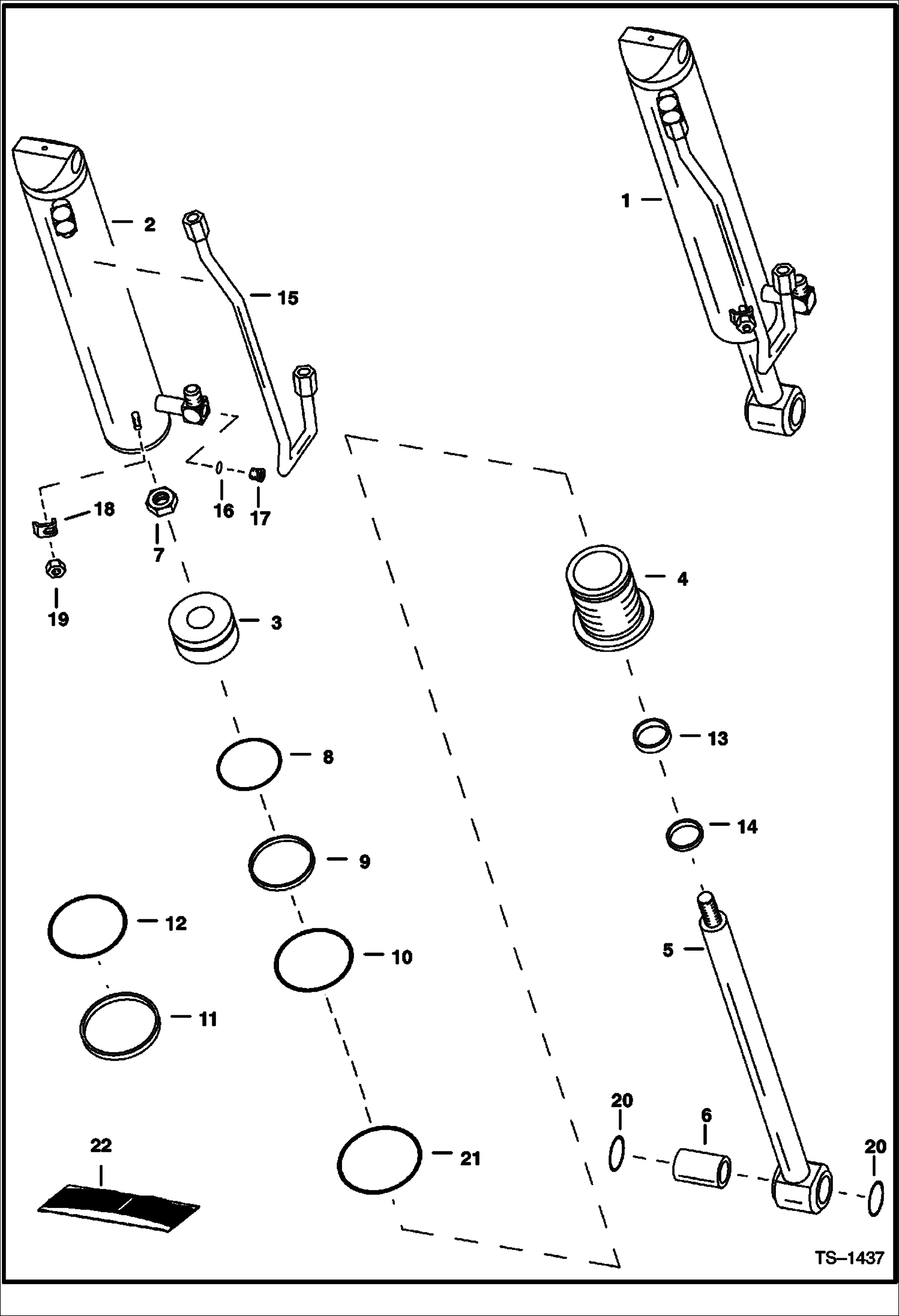

Запчасти Bobcat 500s TILT CYLINDER HYDRAULIC SYSTEM

1

6803666

CYLINDER tilt - W/Ref. 2 - 20

2

6803669

CASE

3

6803655

PISTON

4

6538367

HEAD, CYL TILT

5

6803668

ROD W/Ref. 6 & 20

6

6803575

BUSHING

7

92D16

NUT

8

25K30218

O RING 10 Was 54K030218B - B

9

947088

RING, BACK-UP

10

25K40224

O RING 10 Was 54K040224B - B

11

73K232

RING, BACK-UP backup - Was 80K000232B - A

12

58K234

O RING 10 Was 54K40300 - B

13

6667326

SEAL Was 6538141 - A

14

6690707

WIPER, ROD CYL Was 6665086 - A

15

6800652

TUBE

16

75K6

O-RING for flat boss face - Was 79K000006B - B

16

95K6

O'RING tapered boss face

17

PLUG NLA - W/Ref. 16 - flat boss face - Was 47K000005B - A

17

PLUG NLA - tapered boss face - allen socket head - Was 90KV00005B - A

17

90K5

PLUG flat boss face - allen socket head

17

6812171

PLUG flat boss face - hex head

18

6562266

CLAMP

19

95D6

NUT Was 91D000006B - A

20

6654117

SEAL, OIL 51 mm (2'') OD

20

225855

SEAL, OIL 10 38 mm (1.5'') OD

21

7008355

SEAL, QUAD

22

7135536

SEAL KIT W/Ref. 7-14 - Was 6803321 - A
