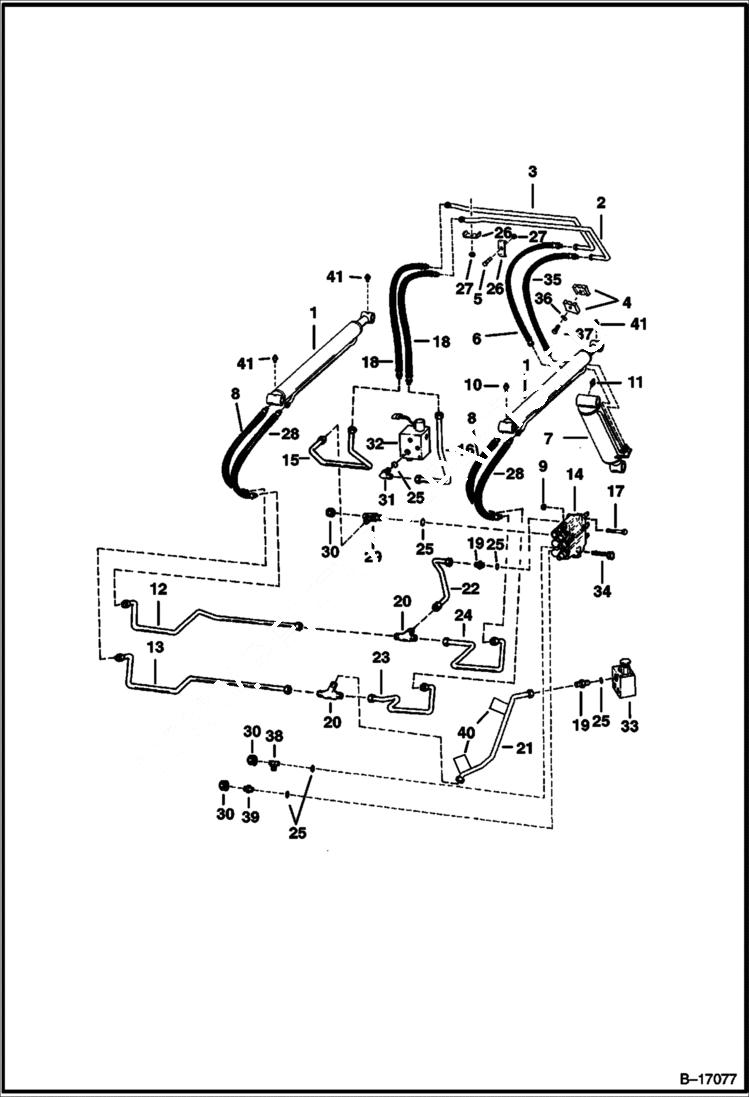

Запчасти Bobcat 500s HYDRAULIC CIRCUITRY (Without Bucket Positioning Valve) HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
CYLINDER See Illustration LIFT CYLINDER/ TS1097 lift
2
6713167
TUBE
3
6713168
TUBE
4
6701892
CLAMP Was 6553422 - B
5
84G3720
BOLT
6
6534349
HOSE Was 6713354 - A
7
CYLINDER See Illustration TILT CYLINDER/ TS1437 tilt
8
6553244
HOSE
9
91D5
NUT 5
12
6715473
TUBE Was 6715475 - D
13
6715472
TUBE Was 6715474 - D
13
6729881
TUBE
14
VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2310 hydraulic
15
6708176
TUBE
16
6715822
TUBE Was 6708175 - A
17
17C540
BOLT
18
6715571
HOSE
19
6715184
ADAPTER W/Ref. 25 - tapered boss face
19
97K8
O-RING flared end
20
10K6
FITTING
20
10K6
FITTING with o-rings - Was 10KN00006B - A
20
97K8
O-RING for flared ends
21
6708173
TUBE
21
6730970
TUBE available only as an assembly W/two danger decals installed
21
6809511
DECAL, DANGER
22
6708172
TUBE
23
6715475
TUBE Was 6715473 - D
24
6715474
TUBE Was 6715472 - D
24
6729883
TUBE
25
99K10
O'RING for tapered boss face
26
6502203
CLAMP
27
95D6
NUT Was 91D000006B - A
28
6708464
HOSE
29
TEE NLA - W/Ref. 25 - tapered boss face - Was 6715187 - A
29
97K8
O-RING flared end
29
21KB0810
FITTING, HYD TEE W/Ref. 25 - flat boss face
30
36K6
CAP
31
784568
ELBOW flat boss face
31
ELBOW NLA - flat boss face - W/Ref. 25 - Was 6715716 - A
31
97K8
O-RING flared end
31
17KB0810
FITTING, HYD ELBOW W/Ref. 25 - flat boss face
32
6664849
VALVE See Illustration TILT LOCK VALVE/ B17427 tilt lock
33
6664850
VALVE See Illustration LIFT LOCK VALVE/ B17428 lift lock
34
17C528
BOLT Was 17C532 - B
35
6713390
HOSE
36
872229
WASHER
37
84G3728
BOLT
38
6715184
ADAPTER straight - .75'' threads to tubeline
38
6731481
TEE W/.88'' threads to tubeline
39
6715184
ADAPTER W/.75'' threads to tubeline
39
15KB1010
FITTING, HYD CONNECTOR W/.88'' threads to tubeline - Was 15KV00007B - A
40
6809511
DECAL, DANGER included W/Ref. 21
