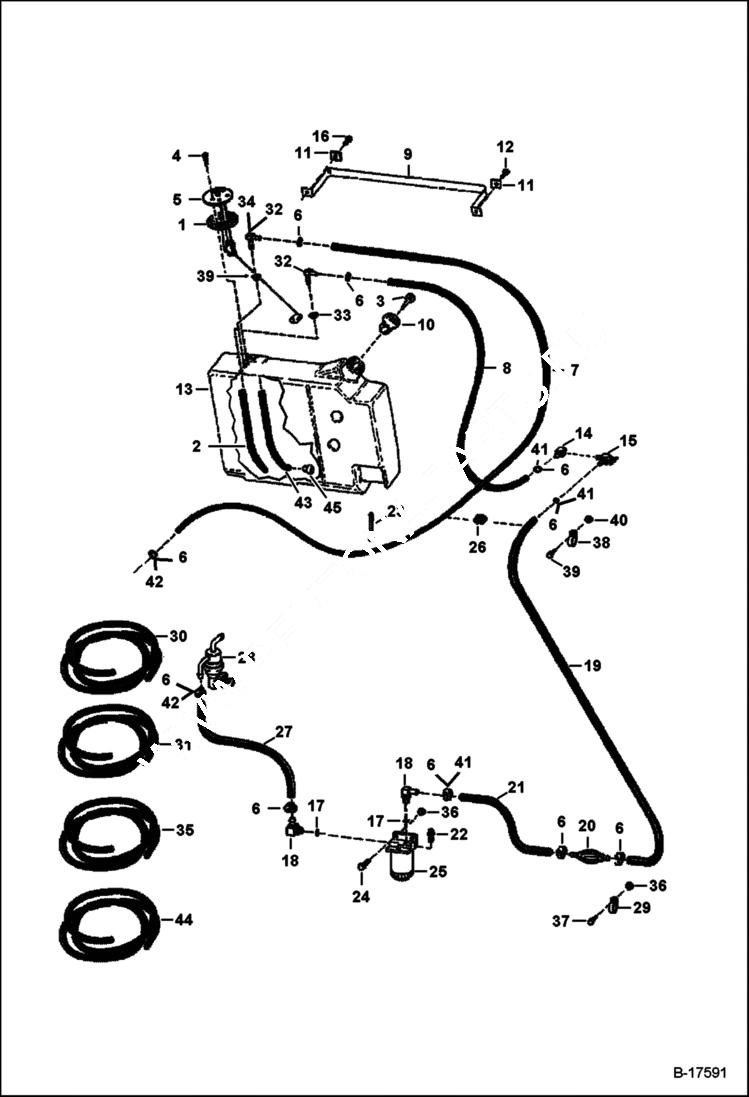

Запчасти Bobcat 500s FUEL SYSTEM MAIN FRAME

1

6630972

GASKET

2

6715001

HOSE

3

6587458

KEY

4

87G1010

SCREW

5

6568175

SENDER, FUEL

6

42HS04

CLAMP, HOSE Was 6515575 - A

6

5HM13

CLAMP constant tension

7

HOSE NLA - Order Ref. 35

8

HOSE NLA - Order Ref. 30

9

6707564

BAND

10

6661114

CAP. DIESEL Green

10

6661696

CAP, FUEL LOCKING locking - W/Ref. 3

11

6559447

WASHER square

12

84G3720

BOLT

13

6707517

TANK

14

6598753

ELBOW

15

6632593

VALVE shut-off

16

84G3712

BOLT 5

17

79K5

O RING 10 for flat boss face

17

99K5

O-RING for tapered boss face

18

ELBOW NLA - flat boss face - W/Ref. 17 - Was 6657083 - A

18

6715183

ELBOW W/Ref. 17 - check boss face to determine correct replacement o-ring

19

HOSE NLA - Order Ref. 30

20

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long

21

HOSE NLA - Order Ref. 30

22

6658180

PLUG, BLEED

23

6513471

CLAMP

24

17C516

BOLT Was 17C000512B - B

25

6667353

FILTER ASSY W/Ref. 22

25

6667352

FILTER, FUEL W/SEPARATOR 12

25

72F1

FITTING

26

6515603

GROMMET

27

HOSE NLA - Order Ref. 31

28

6672427

FUEL PUMP See Illustration INJECTION PUMP & FUEL PUMP/ B15036 FUEL

29

30H31

CLAMP 10 Was 31H000025B - B

30

6577821

HOSE bulk - sold per foot - .25'' ID

31

6577822

HOSE bulk - sold per foot - .3125'' ID

32

6598908

ELBOW Use W/return line

32

6598908

ELBOW Use W/outlet line - Was 6681462 - A

33

6553411

BUSHING 0.38'' ID

34

7101291

ELBOW Use W/return line - Was 6661382 - A

35

6578169

HOSE bulk - sold per foot - 0.19'' ID

36

61D5

NUT

37

17C512

BOLT 5

38

31H25

HOSE CLAMP

39

35C416

BOLT

40

85D4

NUT 5

41

5HM14

CLAMP constant tension

42

42HS04

CLAMP, HOSE worm gear

43

HOSE NLA - 21.5'' (546 mm) - Order Ref. 44

44

6569752

HOSE BULK/FT bulk - Sold Per Foot - Use W/6729730 window

45

6650239

SCREEN, FUEL PICKUP fuel
