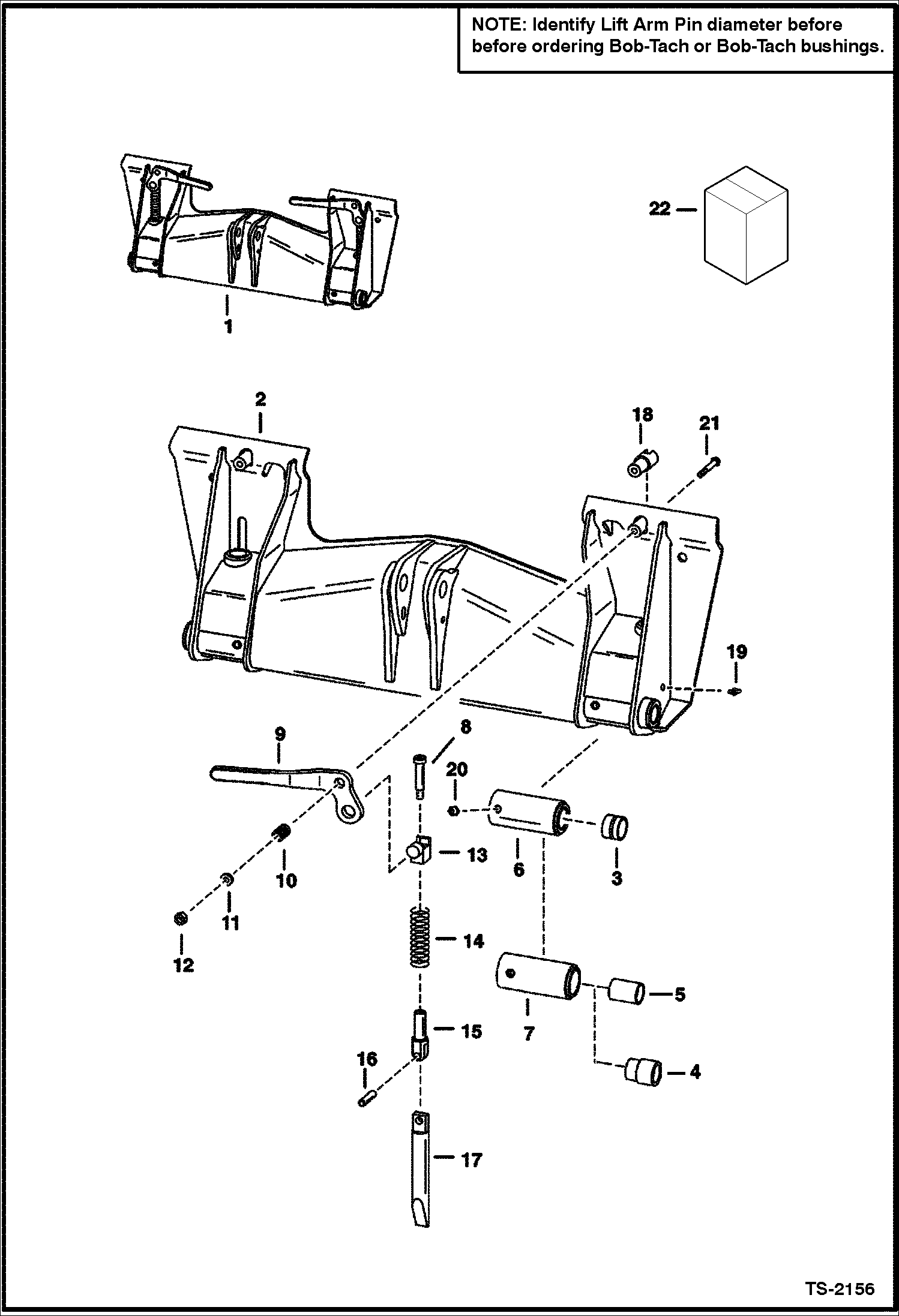

Запчасти Bobcat 500s BOB-TACH MAIN FRAME

1

6709762

BOBTACH-553F for 1.25'' (31,8 mm) dia. lift arm pin - Also Order (2) of Ref. 4 and 6561383 decal

1

6732079

BOB-TACH for 1.50'' (38,1 mm) dia. lift arm pin - W/Ref. 5

2

FRAME NLA

3

6589665

BUSHING Press Fit - 1.25'' (31,8 mm) I.D. - straight O.D.

4

6732446

BUSHING, PRESS FIT Press Fit - 1.25'' (31,8 mm) I.D. - stepped O.D.

5

6730997

BUSHING, WELD-ON Press Fit - 1.50'' (38,1 mm) I.D. - straight O.D.

6

BUSHING NLA - Weld-on - for 1.25'' (31,8 mm) dia. lift arm pin - 2.25'' (57,15 mm) O.D. - W/Ref. 3 - Was 6577445 - A

6

6731155

BUSHING Weld on - W/Ref. 5 (6730997 bushing)

6

6577446

BUSHING, WELD-ON Weld on - for 1.25'' (31,8 mm) dia. lift arm pin - 2.25'' (57,15 mm) O.D. - Also Order Ref. 3

7

6731979

BUSHING weld on - 2.5'' (63,5 mm) OD - for 1.25'' (31,8 mm) or 1.5'' (38,1 mm) dia lift arm pin - Also Order Ref. 4 & 5

8

6728473

BOLT, SHOULDER pre-applied thread locker - Was 38C1036 - A

9

6702904

LEVER, BOB-TACH RH

9

6702903

LEVER, BOB-TACH LH

10

6713040

SPRING Was 6704453 - B

11

619021

WASHER, 5 Was 6557831 - B

12

85D6

NUT, 5

13

6704240

PIVOT ASSY.

14

6578253

SPRING, COMPRESSION Was 6562018 - A

15

6704248

PIVOT, WEDGE

16

14J5032

PIN, STRAIGHT

17

6737191

WEDGE Was 6704242 - A

18

6702958

BUSHING, WELD-ON

19

10H35

FITTING, GREASE 10

20

743332

FITTING, GREASE 5

21

17C660

BOLT Was 17C000644B - B

21

17C664

BOLT production used 1200 pieces per deviation DOD012833
