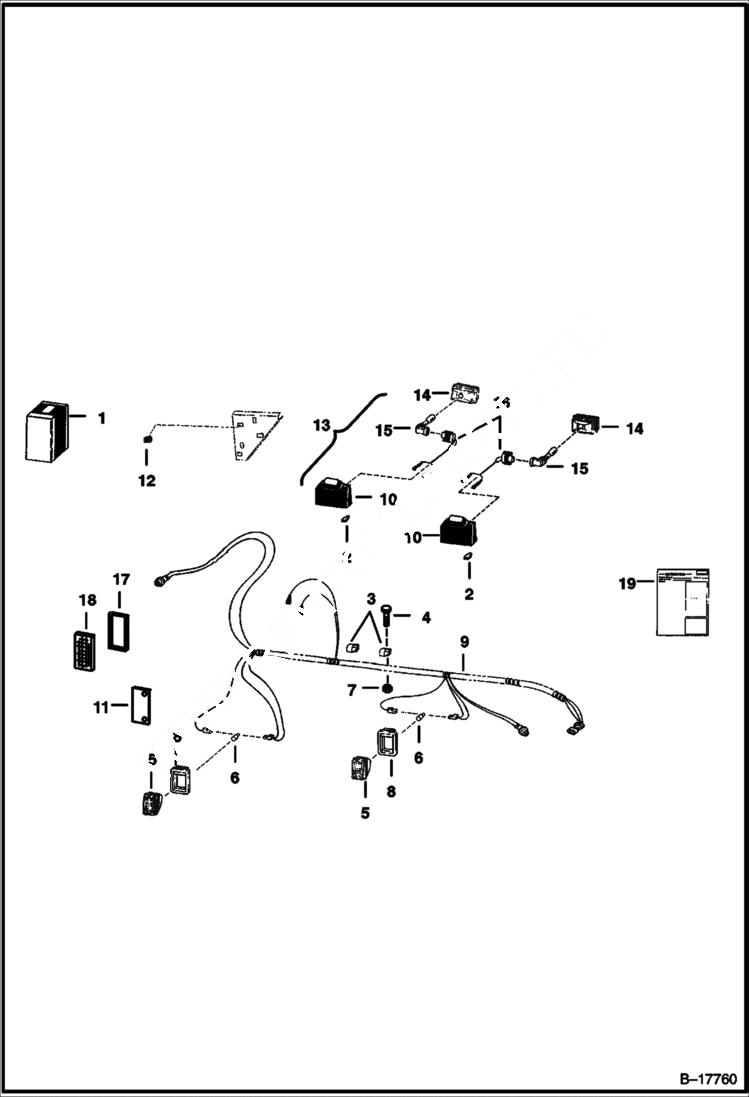

Запчасти Bobcat 500s LIGHT KIT (Front and Rear) ACCESSORIES & OPTIONS

1

6708249

LIGHT KIT front & rear - Ref. 2 - 16 & 19

2

6519548

CONNECTOR

3

30H42

CLAMP

4

7C612

BOLT

5

6665922

LAMP W/Ref. 6

5

6665431

SOCKET

6

898731

1156 BULB

7

57D6

NUT 5

8

6703796

MOUNT

9

6707669

HARNESS lights

9

6701952

SOCKET

10

6578824

HOUSING rubber

11

6708216

COVER

12

6665410

SWITCH

13

6577801

LIGHT W/Ref. 10 & 14-16

14

6649478

BULB HOUSING

15

6650111

LAMP

16

6578528

HARNESS light

17

6705774

MOUNT For outer holes - not in kit

18

6707789

LIGHT For Outer Holes - Not In Kit - Amber-Red - Also 6709048 Harness

18

6666568

BULB 21 W

18

6667887

BULB 21/5 W

18

6668007

SCREW

18

6668010

LENS Amber/ Red

19

6900652

INSTRUCTS Was 6722198 - B
