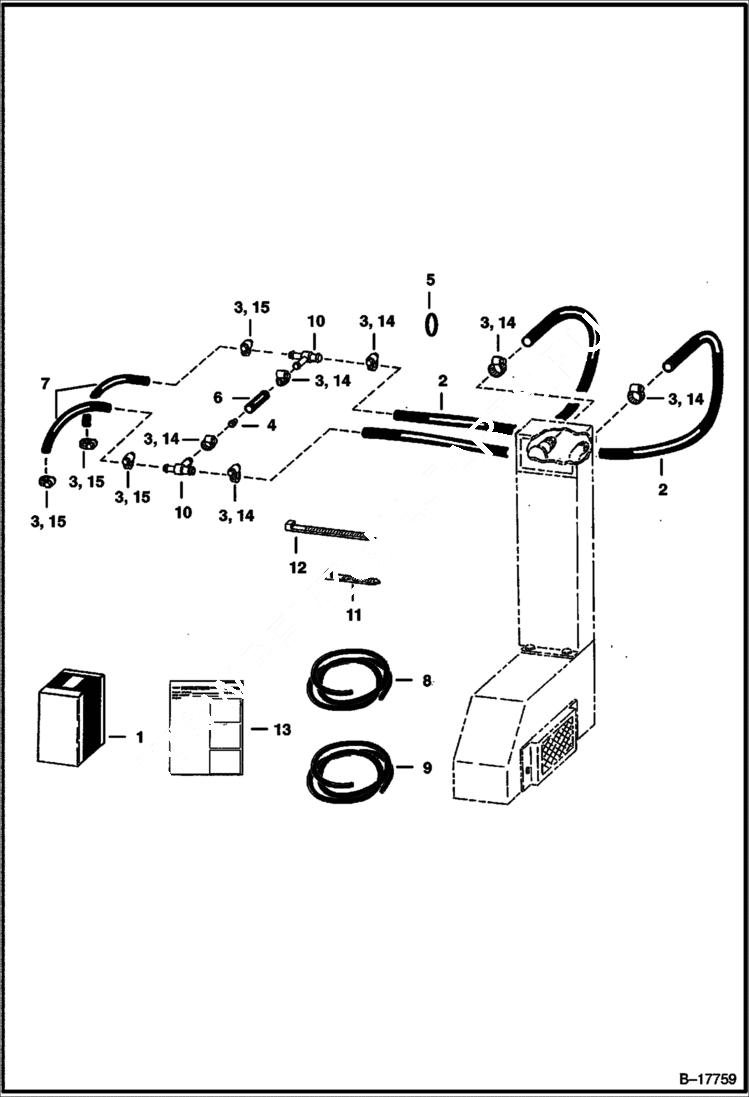

Запчасти Bobcat 500s HEATER PLUMBING KIT (Fresh Air) ACCESSORIES & OPTIONS

1

6708491

KIT See Illustration HEATER KIT/ B17757 REF. 2-13 - FOR HEATER KIT

2

HOSE NLA - 75.0 in. (1905 mm) Long - Order Ref. 8

3

42H10

HOSECLAM5

4

6585223

ORIFICE

5

6577545

GROMMET

6

HOSE NLA - 3.0''(76.2mm) long - Order Ref. 8

7

HOSE NLA - 12.0''(304.8mm) long - Order Ref. 9

8

889269

HOSE BULK/FT

9

6565977

HOSE

10

6648485

TEE Was 6564697 - A

11

6660883

TIE

12

6624289

STRAP, TIE

13

6724384

INSTRUCTIONS Was 6722058 - A

14

5HM24

CLAMP Constant Tension

15

5HM20

CLAMP Constant Tension
