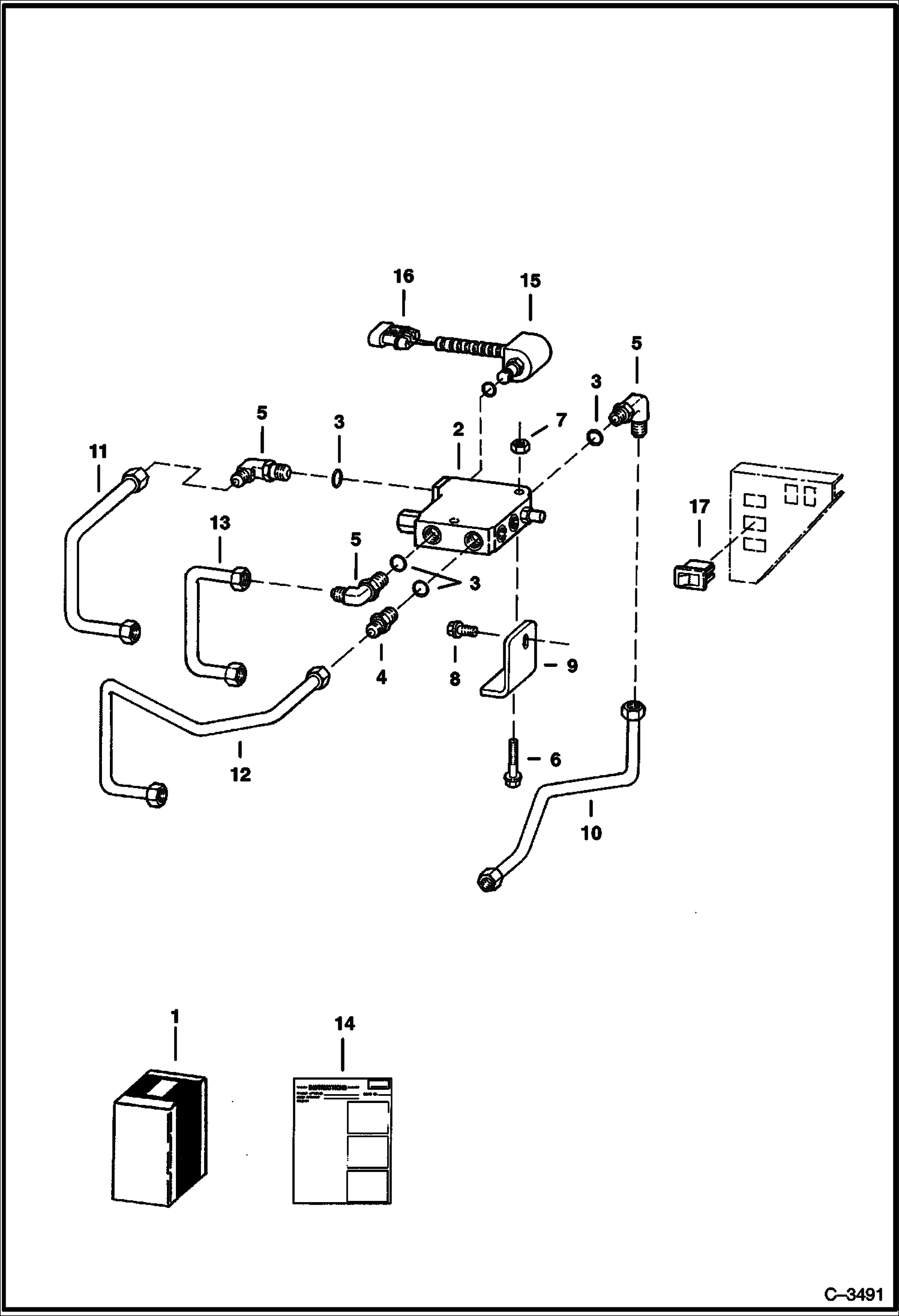

Запчасти Bobcat 500s BUCKET POSITION VALVE KIT ACCESSORIES & OPTIONS

1

6708169

KIT Ref. 2-17

2

VALVE See Illustration BUCKET POSITIONING VALVE/ MS1943 NLA - Order 6673959 valve - If loader is not equipped with an on/off switch, also order 6647784 plug, 79K8 O-ring, 6647785 spring, & 6647783 loa

3

79K10

O RING 10 For Flat Boss Face

3

99K10

O'RING For Tapered Boss Face

4

731794

CONNECTR W/Ref. 3 - Flat Boss Face

4

6715184

ADAPTER W/Ref. 3 - Tapered Boss Face

4

15KB0810

FITTING, HYD CONNECTOR Flat Boss Face

4

97K8

O-RING Flared End

5

784568

ELBOW W/Ref. 3 - Flat Boss Face

5

ELBOW NLA - W/Ref. 3 - Tapered Boss Face - Was 6715716 - A

5

17KB0810

FITTING, HYD ELBOW W/ Ref. 3 - Flat Boss Face

5

97K8

O-RING Flared End

6

17C540

BOLT

7

57D5

NUT

8

84G3716

SCREW 5

9

6708163

MOUNT

10

6708164

TUBELINE

11

6708165

TUBELINE

12

6708166

TUBELINE

13

6708167

TUBELINE

14

6724044

INSTRUCTIONS

15

6672863

VALVE, SOLENOID W/Ref. 16 - Was 6708271 - A

15

6670634

SEAL KIT

15

6671527

NUT

16

6641179

CONNECTOR 2-pin

16

6641180

LOCK Use W/ 2-pin connector

17

6668814

SWITCH
