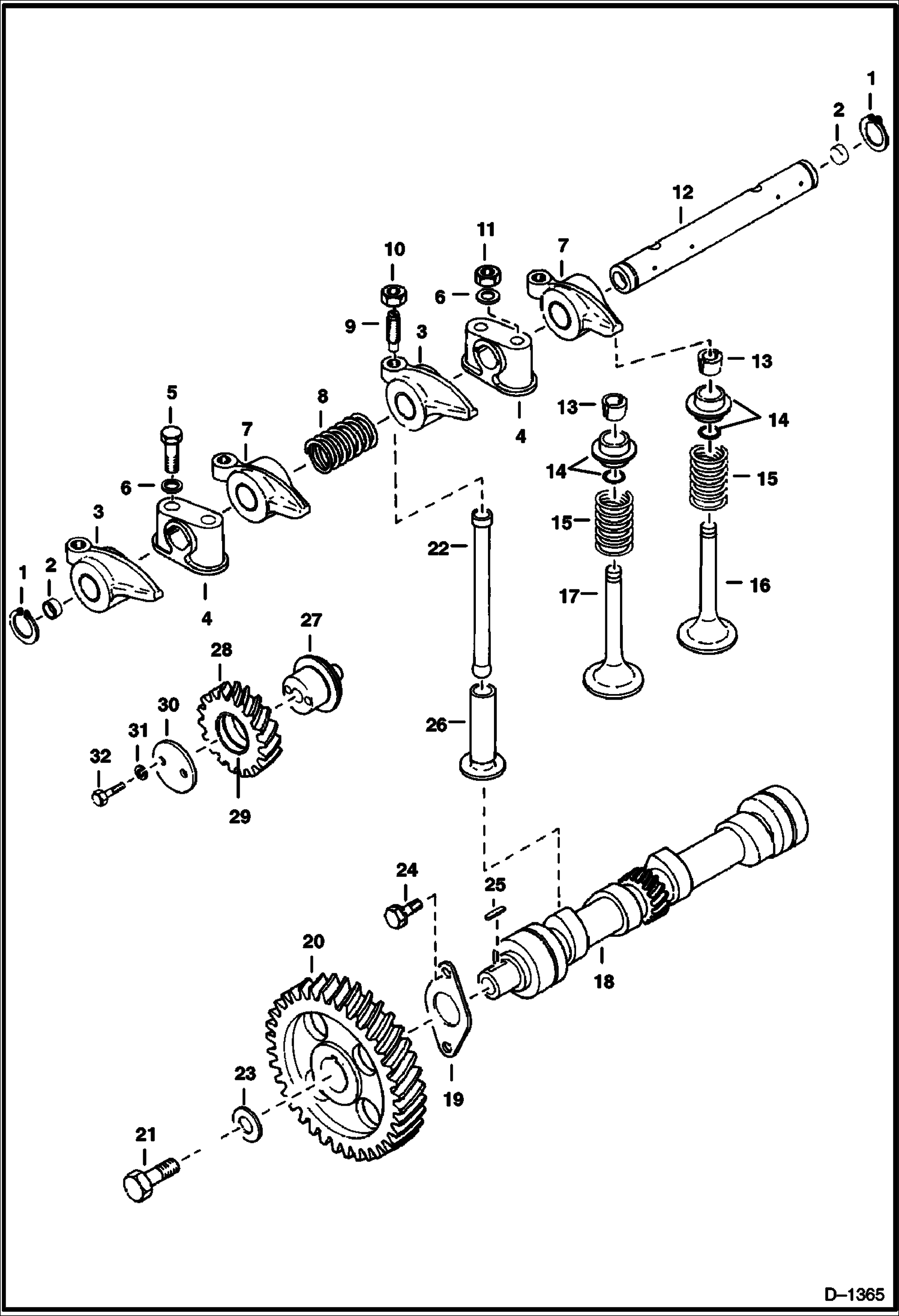

Запчасти Bobcat 500s CAMSHAFT & ROCKER ARM POWER UNIT

1

SNAP RING NLA - Was 5JM000019B - A

2

6512759

PLUG

3

6512757

ROCKER ARM

4

6512761

BRACKET rocker arm shaft

5

1CM850

BOLT Was 6513349 - A

6

6513034

WASHER

7

6512756

ROCKER ARM

8

6512762

SPRING

9

6631817

SCREW adjusting - Was 6512754 - A

10

6512755

NUT

11

6513035

NUT

12

6512758

SHAFT

13

6513139

RETAINER

14

6512752

CAP valve spring

15

6512751

SPRING valve

16

6512749

VALVE exhaust

17

6512750

VALVE intake

18

6512746

CAMSHAFT

19

6512737

PLATE thrust

20

6512739

GEAR camshaft

21

6512742

BOLT

22

6512748

PUSHROD

23

6512741

WASHER

24

6512738

BOLT

25

6512740

KEY

26

6512747

TAPPET

27

6512731

SHAFT idler gear

28

6512732

GEAR idler

29

6512733

BUSHING idler gear

30

6512734

COLLAR thrust

31

WASHER NSS - W/Ref. 31

32

6512735

BOLT W/Ref. 31
