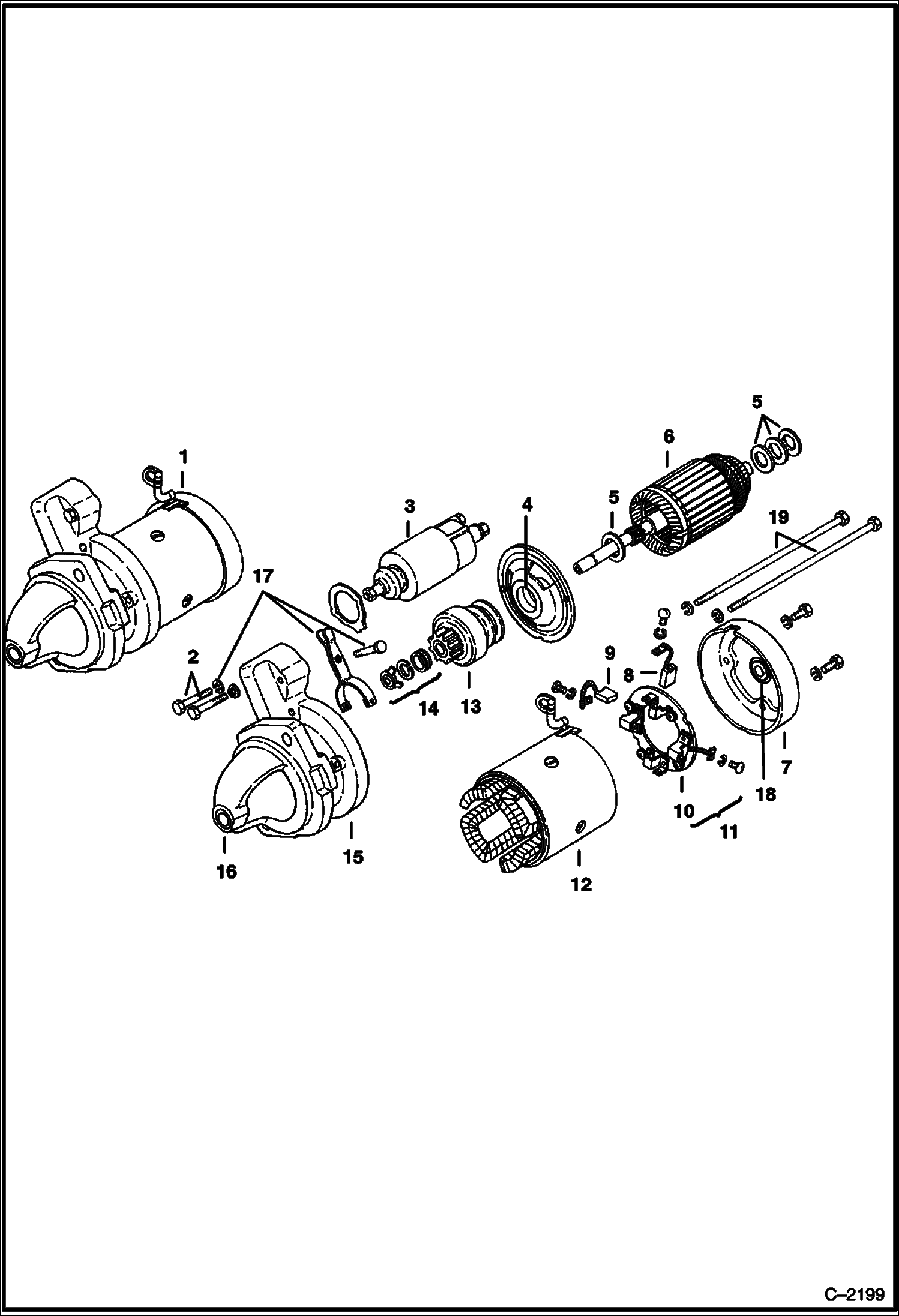

Запчасти Bobcat 500s STARTER (581100-0990) ELECTRICAL SYSTEM

1

6988699

STARTER Was 6513138 - A

2

6513348

BOLT

3

6514956

SOLENOID

4

6513342

BEARING

5

6513331

KIT thrust washer

6

6514944

ARMATURE

7

6514951

COVER W/Bushing

8

6514949

BRUSH -

9

6514948

BRUSH +

10

6514950

BRUSH spring

11

6514947

HOLDER brush - W/Ref. 8-10

12

6514945

COIL

13

6514952

DRIVE

14

6514912

DRIVE SET

15

6514955

HOUSING W/Ref. 16

16

BUSHING NSS

17

6514954

LEVER shift set

18

6514946

BUSHING

19

6649041

BOLT thru
