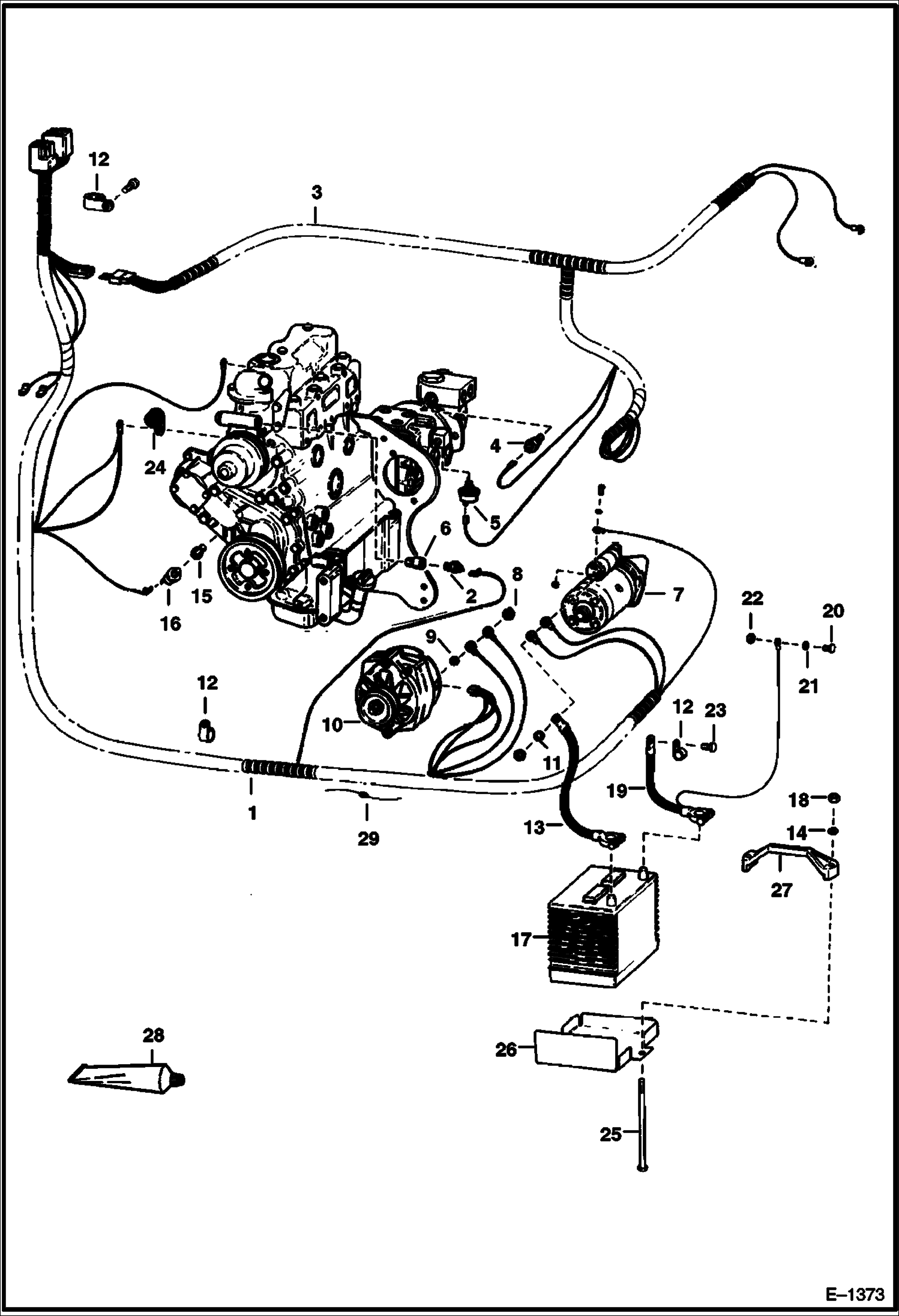

Запчасти Bobcat 500s ENGINE ELECTRICAL ELECTRICAL SYSTEM

1

6562836

HARNESS

2

6512528

SWITCH eng. temp.

3

6563359

HARNESS

4

6598384

SWITCH hydro. temp.

5

6557449

SWITCH hydro. pressure

6

19F3

BUSHING

7

6988699

STARTER See Illustration STARTER/ C2199 Was 6513138 - A

8

1DM6

NUT Was 4DM6 - A

9

6E4

WASHER 10

10

ALTERNATOR See Illustration ALTERNATOR/ C1802

11

6E6

WASHER

12

30H46

CLIP

13

6557450

CABLE positive

14

25E15

WASHER

15

6557453

ADAPTER

16

6631010

SWITCH, PRESS OIL ENG eng. oil pressure

17

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

17

6630154

CAP gang - Danger

17

6630155

CAP gang - Poison

17

6514898

CAP tilt-tite

18

59D5

NUT 5

19

6557451

CABLE negative

20

17C510

BOLT

21

6E5

WASHER

22

61D5

NUT

23

5CM1016

BOLT

24

CLIP NLA - Was 6502236 - A

25

6569623

BOLT

26

6558826

MOUNT

27

7024123

CLAMP Was 6563462 - A

28

6599360

SEALANT, ELEC .3 OZ electrical - tube - 3 oz

29

3675725

DIODE
