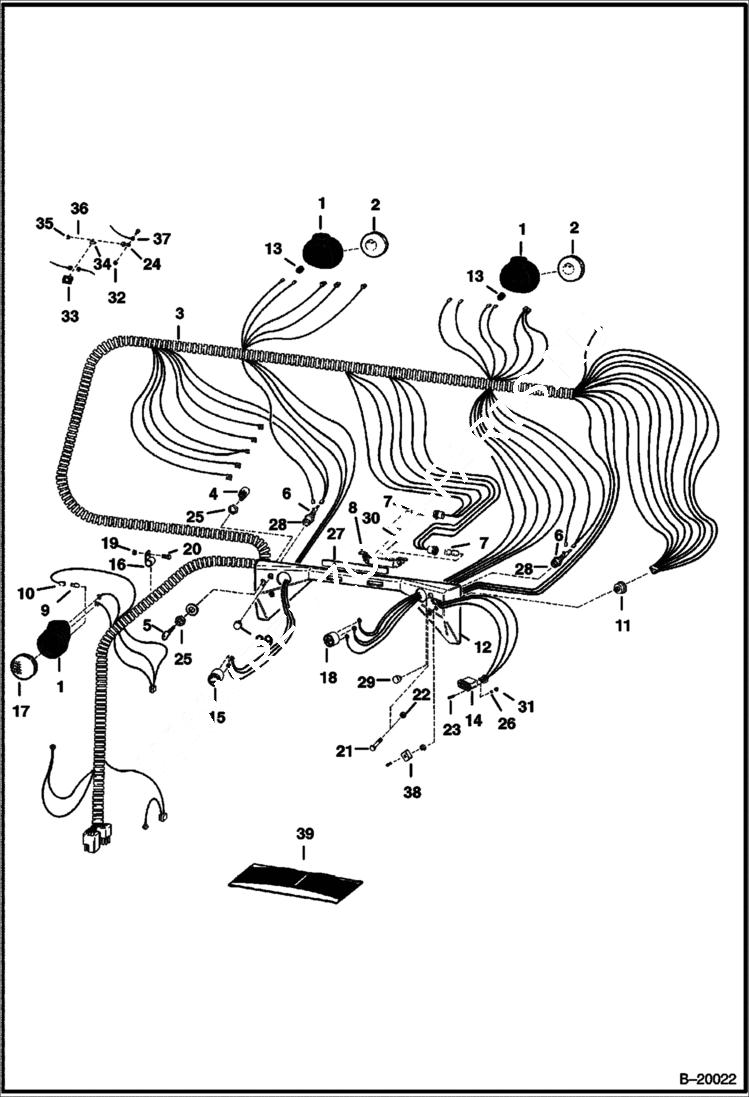

Запчасти Bobcat 500s CAB ELECTRICAL ELECTRICAL SYSTEM

1

6558142

HOUSING

2

6557486

LAMP

3

6561500

HARNESS

4

SWITCH See BTI289 NLA - ignition - Order Ref. 39 - Was 6519592 - A

4

6665606

SWITCH

5

6512809

KEY For Ref. 4 (NLA/6519592 Switch)

5

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

5

6693241

KEY 10 ignition - single key W/O ring

6

6513469

HOLDER

6

1319451

FUSE 5

7

6513468

BULB

8

6558242

BRACKET

9

960855

1003 BULB light #1003 - Use Only W/#4409 Lamp

9

898731

1156 BULB #1156-Use Only W/#4409X Lamp

10

6557504

SOCKET

11

6512808

SWITCH light

12

6560182

PANEL

13

6557493

GROMMET

14

6664886

HOURMETER Was 6631657 - A

15

6659912

VOLTMETER Was 6560354

16

30H45

CLIP Was 30H000041B - B

17

LAMP NLA - #4409 - Order 6563740 Lamp & 898731B Bulb

17

6563740

LAMP #4409X

18

6634273

GAUGE, FUEL Was 6560353 - A

19

61D5

NUT

20

10C512

BOLT Was 6553808 - A

21

17C572

BOLT

22

83D5

NUT 5

23

85G608

SCREW

24

6512963

DIODE

25

6598721

NUT For Ref. 4 (NLA/6519592 Switch)

25

6674202

NUT For Ref. 4 (6665606 Switch)

26

12E6

WASHER

27

6560699

LENS

28

6514643

GASKET

29

6514642

CAP

30

6514742

RIVET

31

12D6

NUT 10

32

12D8

NUT

33

6557458

INDICATOR glow plug

34

6558093

BUS BAR

35

62D4

NUT

36

6E4

WASHER 10

37

BOLT NLA - Was 85G000806B - A

38

6599781

KNOB light switch

39

6724282

SWITCH KIT Ref. 4 & 5
