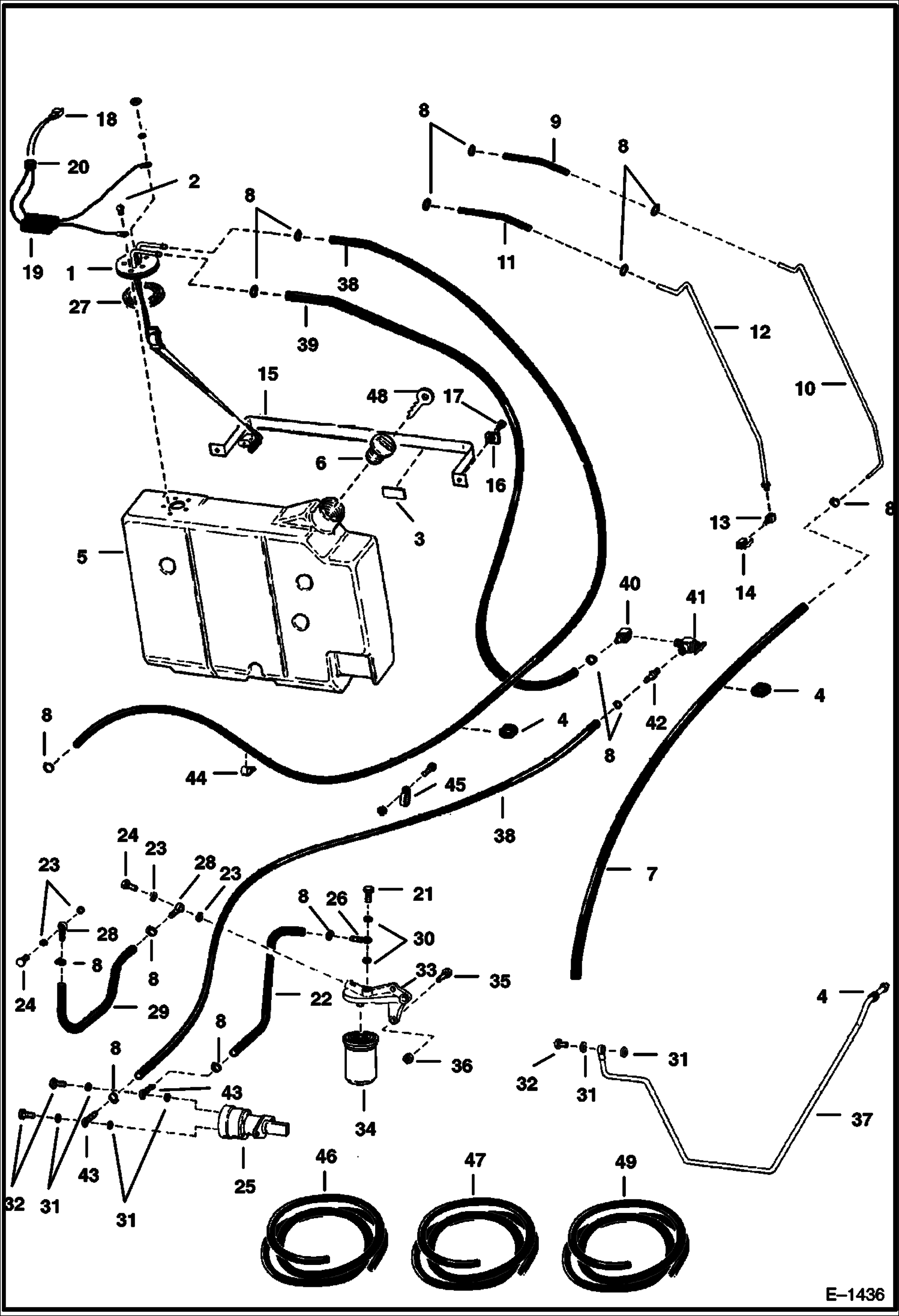

Запчасти Bobcat 500s FUEL SYSTEM MAIN FRAME

1

6563210

SENDER Fuel - includes gasket

2

87G1010

SCREW Was 85G001010B - B

3

STRIP NLA - rubber - 2.5''(63,5 mm) long - Order Ref. 49 - Was 6563233 - A

4

6515603

GROMMET

5

TANK See BTI216 NLA

6

6661114

CAP. DIESEL green - Was 6632468 - A

6

CAP NLA - locking--Code GC020 - Was 6635877 - A

6

6661696

CAP, FUEL LOCKING locking - W/Ref. 48 - Code PK510

7

HOSE NLA - 35''(889 mm) long - Order Ref. 46

8

42HS04

CLAMP, HOSE Was 6515575 - A

9

HOSE NLA - 6''(152 mm) long - Order Ref. 46

10

6562548

TUBE

11

6562546

HOSE 7''(155 mm) long - Order Ref. 47

12

6562547

TUBE

13

62F4

ELBOW

14

6562553

VALVE

15

6562559

BAND

16

6559447

WASHER

17

84G3716

SCREW 5

18

6560117

WIRE

19

6562606

SEAL

20

742876

GROMMET

21

6555921

BOLT hollow

22

HOSE NLA - 6''(152 mm) long - Order Ref. 46

23

2FM12155

WASHER

24

6514745

SCREW hollow

25

6513073

FUEL PUMP See Illustration FUEL INJECTION & LUBRICATION PARTS/ C2202

26

6511899

ADAPTER banjo

27

6630972

GASKET

28

6511033

CONNECTOR banjo

29

HOSE NLA - To Injection Pump - 10''(254 mm) long - Order Ref. 46

30

6513763

WASHER Was 2FM014180B - A

31

1FM80140

WASHER

32

6555923

BOLT hollow

33

HEAD See BTI226 NLA - filter

34

4121609

FILTER

35

17C620

BOLT

36

61D6

NUT 5

37

TUBE NLA - Order Ref. 8, 42, 43 and 6ft. (1,8 mm) of Ref. 46

38

HOSE NLA - 58''(1473 mm) long - Order Ref. 46

39

HOSE NLA - 33''(838 mm) long - Order Ref. 47

40

6598753

ELBOW

41

6632593

VALVE Was 6512138 - A

42

6505813

CONNECTOR barbed - Use W/Barbless

43

6598832

FITTING banjo fuel valve

44

30H30

CLAMP

45

31H26

CLIP

46

6577821

HOSE bulk - sold per foot - Was 672221 - A

47

6577822

HOSE bulk - Sold Per Foot - Was 6562515 - A

48

6654374

KEY Code GC020

48

6587458

KEY Code PK510

49

6591273

STRIP rubber - Bulk - Sold Per Foot - Was 6563233 - A
