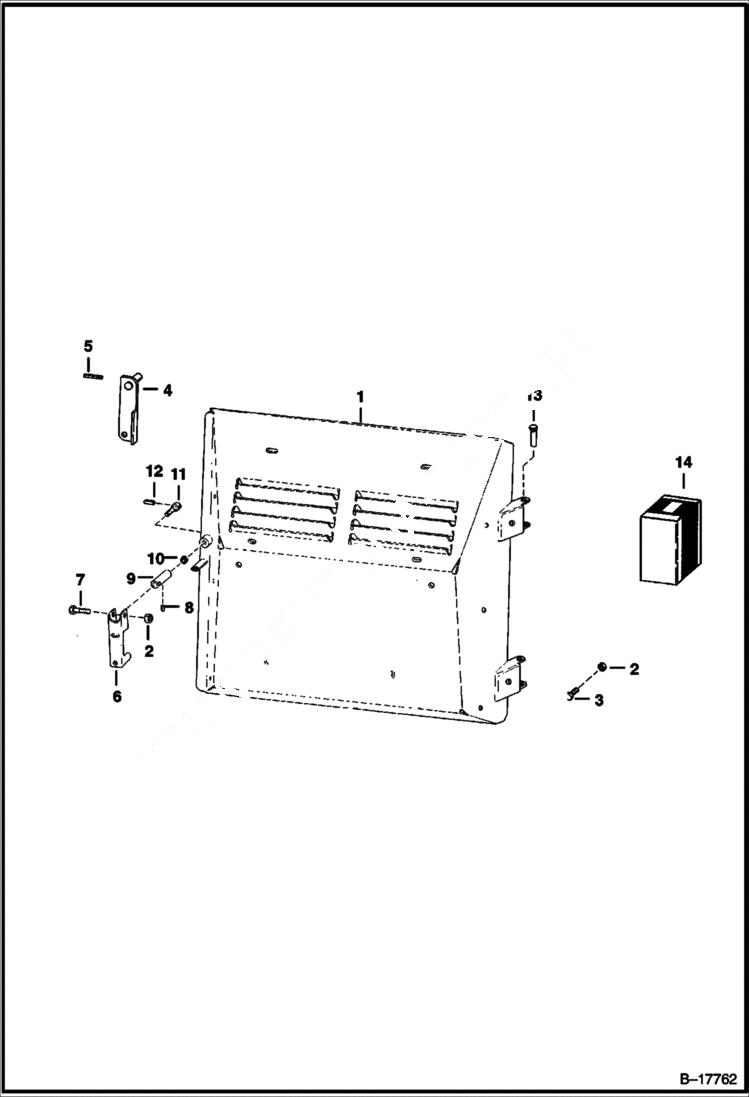

Запчасти Bobcat 500s REAR DOOR MAIN FRAME

1

REAR DOOR See BTI166 NLA

1

REAR DOOR NLA - hinged - Order 6707690 Door, 6660646 Plug, (2) of 6707725 Cover, (4) of 17C000412B Bolt & (4) of 55D000004B Nut - Was 6578827 - A

2

85D5

NUT 5

3

10C512

BOLT Was 6553808 - A

4

6553429

HANDLE

5

14J3740

PIN

6

6563681

HANDLE

7

38C624

BOLT 5 Was 6564599 - A

8

33G404

SET SCRW5

9

NUT NLA - coarse threads - Order 6565627 Nut, 6565628 Nut & 6565629 Screw

9

6565628

NUT fine threads

10

6563624

NUT coarse threads

10

6565627

NUT fine threads

11

SCREW NLA - coarse threads - Order 6565627 Nut, 6565628 Nut & 6565629 Screw

11

6565629

SCREW fine threads

12

6599361

PIN

13

6564340

PIN

14

6579448

LATCH KIT W/Ref. 2 & 6-12
