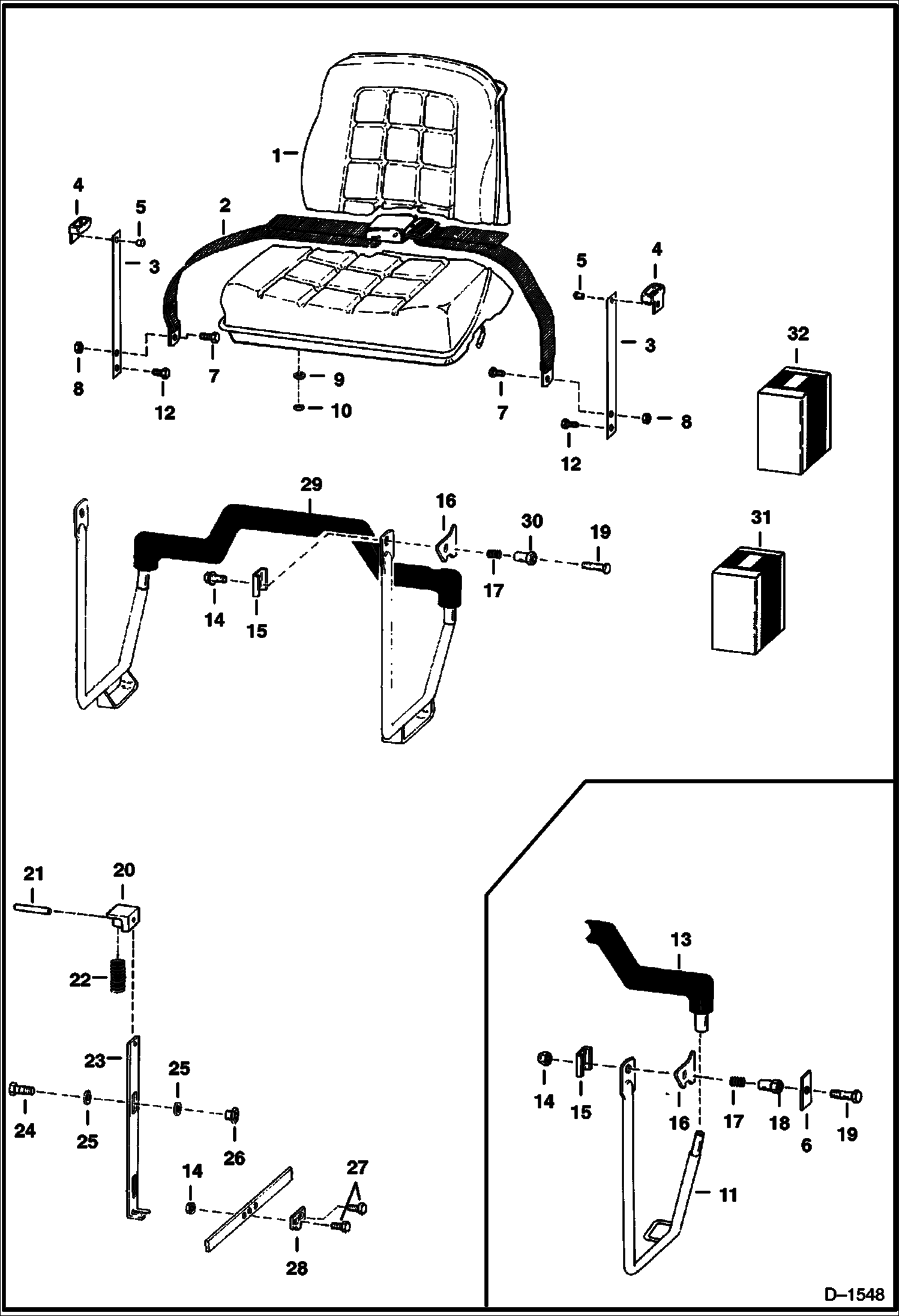

Запчасти Bobcat 500s SEAT & SEAT BAR MAIN FRAME
№
Артикул
Название
Примечание
Количество
1
6669135
SEAT, OPERATOR VINYL See Illustration SEAT/ B7185 WAS 6563140 - A
2
SEAT BELT NLA - Order 6675074 seat belt & (2) of 6725373 spring plate - Was 6563214 - A
2
SEAT BELT NLA - Order Ref. 32 - Was 6564774 - A
2
SEAT BELT NLA - Order 6675074 Seat Belt & (2) of Ref. 3 (6725373 Spring Plates) - Was 6667875 - A
2
SEAT BELT NLA - W/Spring Plates - Order 6675074 Seat Belt & (2) of Ref. 3 (6725373 Spring Plates) - Was 6725403 - A
2
6675074
SEAT BELT W/O spring plates
3
6563206
GUIDE ASSY L.H. - W/Ref. 4 & 5
3
6563207
GUIDE ASSY R.H. - W/Ref. 4 & 5
3
GUIDE ASSY. NLA - W/Ref. 4 & 5 - 13.75'' (349,3 mm) long - Use W/Ref. 2 (NLA/6564794 seat belt) - Was 6565354 - A
3
NLA - W/Ref. 4 & 5 - 12.25'' (311,15mm) long - Use W/Ref. 2 (NLA/6667875 Seat Belt) - Order 6711908 Spring Plate, Ref. 4 & (2) of Ref. 5 - Was 6711907 - A
3
6711908
SPRING PLATE Use W/Ref. 2 (NLA/6667875 Seat Belt)
3
6725373
SPRING PLATE Use W/Ref. 2 (6675074 seal belt)
4
GUIDE NLA - Order 6703703 - Was 6565355
5
6630207
RIVET 5 Was 6512797 - A
6
6564506
WASHER
7
17C716
BOLT
8
61D7
NUT
9
4E5
WASHER Was 4E000006B - B
10
61D5
NUT Was 61D000006B - B
11
ARM NLA - L.H. - Order Ref. 29 - Was 6563296 - A
11
ARM NLA - R.H. - Order Ref. 29 - Was 6563295 - A
13
SEAT BAR NLA - Order Ref. 29 - Was 6563095 - A
14
83D6
NUT 5
15
6563557
WASHER
16
6563313
RETAINER
18
BUSHING NLA - Order Ref. 6 & 30
20
6563148
BLOCK, SPRING
21
14J2512
PIN 5
22
6702430
SPRING, COMPRESSION Was 6563149 - C
23
6563150
LOCK
24
17C612
BOLT 5
25
6700170
WASHER nylon - Was 6563152 - A
26
6559479
NUT
27
17C614
BOLT
28
6563151
LINK
29
6706324
SEAT BAR 1 piece - Was 6703301 - A
30
6564507
BUSHING
31
6706796
KIT See Illustration SEAT BAR KIT/ C3341 GAS SPRING SEAT BAR
32
KIT NLA - W/Ref. 2 & 3 - Order Ref. 2 (6675074 Seat Belt) and (2) of Ref. 3 (6725373 Spring Plate) - Was 6713061 - A
