Запчасти Bobcat 500s PISTON & CRANKSHAFT POWER UNIT

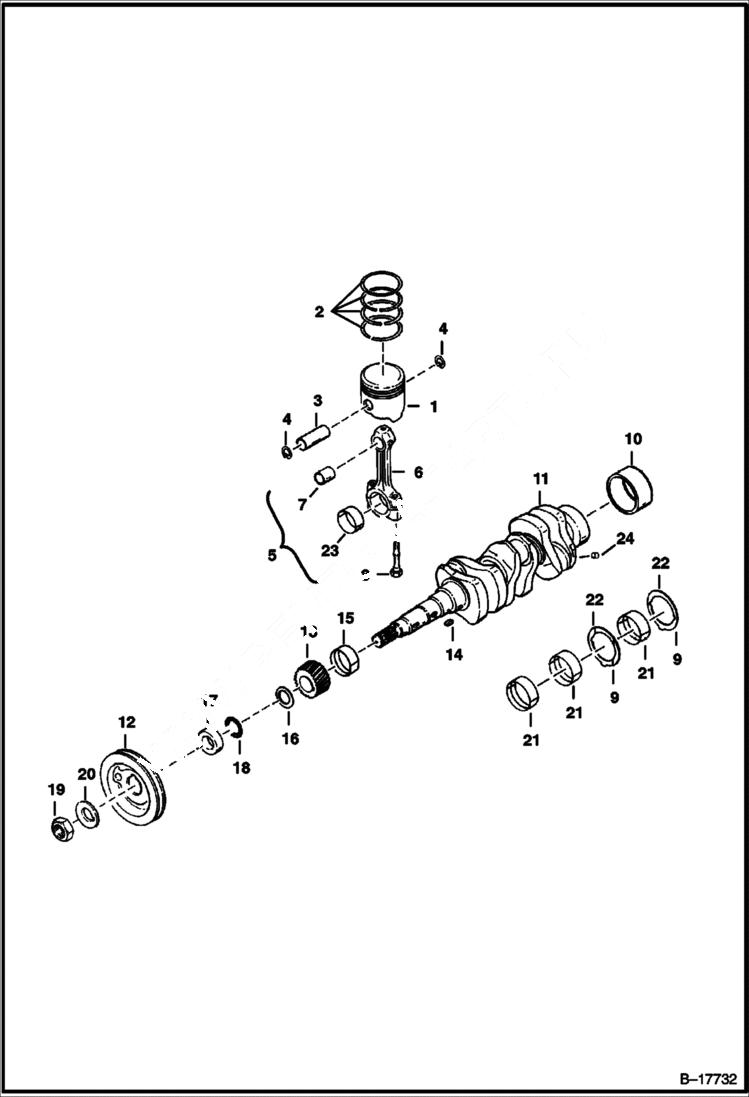

Схема запчастей Bobcat 500s - PISTON & CRANKSHAFT POWER UNIT

Артикул

Название

Примечание

Количество

1

6668142

PISTON std (15732-2111) - Was 6599018 - A

1

6668143

PISTON +.50 mm (15732-2112 OS50) - Was 6599923 - A

1

PISTON NLA - Standard - Center - Order 6668142 Piston - Was 6599019 - A

1

PISTON NLA - Oversized - Center - .0197 in. (.0.5 mm) - Piston Only Order 6668143 Piston - Was 6599924 - A

2

6668144

RING ASSY. Standard - For One Piston - Was 6599017 - A

2

6668145

RING ASSY. Oversized - .0197 in. (0.5 mm) - For One Piston-Was 6599922 - A

3

3974215

PIN

4

3974216

RING

5

6660334

ROD ASSY Ref. 6-9

6

ROD NSS

7

6513621

BUSHING Was 3974219B - A

8

6652630

BOLT

9

7000492

WASHER, THRUST SIDE Std - 1/2 thrust washer - Was 6652637 - A

10

3986830

SLEEVE

11

6652631

CRANKSHAFT Was 6630472 - A

12

6630008

PULLEY Was 6599761 - A

13

6652634

GEAR

14

3974226

KEY

15

6660328

BEARING std.

15

6660329

BEARING 0.2 mm

15

6660330

BEARING 0.4 mm

16

6598979

OIL SLINGER

17

6652635

COLLAR Was 6630004 - A

18

3966521

O'RING

19

3DM20

NUT Was 3974229B - A

20

3974230

WASH

21

7023260

BEARING, ENG CRANKSHAFT std. - 1 bearing - Was 6660335 - A

21

6660336

BEARING 0.2 mm

21

6660337

BEARING 0.4 mm

22

6652636

WASHER

23

6660331

BEARING std.

23

6660332

BEARING .079 in. (0.2 mm)

23

6660333

BEARING .0157 in. (0.4 mm)

24

3974058

PLUG

24

6652633

BALL 1/4''

Выбрано товаров: 35
