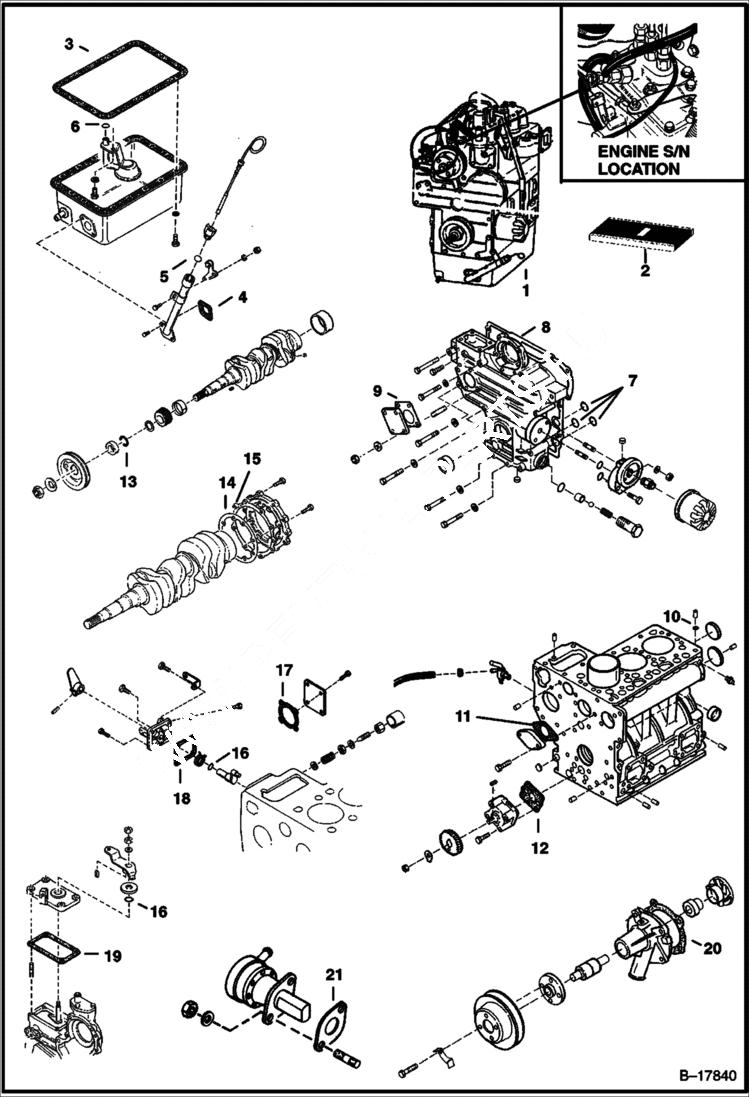

Запчасти Bobcat 500s ENGINE (Kubota D950-B) POWER UNIT

1

ENGINE NLA - Kubota D950-B - Does not include starter, alternator & flywheel - Order 6563734REM - Was 6563734 - A

1

6563734REM

ENGINE

1

SHORT BLOCK NLA

2

6630550

GASKET KIT Upper - Does not include shim

2

6630551

GASKET KIT Lower - Does not include rear oil seal - Ref. 3-21

3

6666798

GASKET See Illustration OIL PAN/ B17727 Ref. 2

4

6599142

GASKET See Illustration OIL PAN/ B17727 Ref. 5

5

25K40100

O RING 10 See Illustration OIL PAN/ B17727 Ref. 12

6

3966514

O'RING See Illustration OIL PAN/ B17727 Ref. 8

7

6599081

O-RING See Illustration GEARCASE/ B17729 Ref. 3

8

6666795

GASKET See Illustration GEARCASE/ B17729 Ref. 2

9

6714543

GASKET See Illustration GEARCASE/ B17729 REF. 29

10

3974038

O RING See Illustration CRANKCASE/ B17730 REf. 15

11

6666778

GASKET See Illustration CRANKCASE/ B17730 Ref. 17

12

6666773

GASKET See Illustration CRANKCASE/ B17730 Ref. 21

13

3966521

O'RING See Illustration PISTON & CRANKSHAFT/ B17732 Ref. 18

14

6599106

GASKET See Illustration MAIN BEARING CASE/ B17733 Ref. 4

15

6599107

GASKET See Illustration MAIN BEARING CASE/ B17733 REf. 6

16

3974280

O RING See Illustration SPEED CONTROL PLATE/ C2564 See Illustration STOP LEVER/ C2722 Ref. 9 & Ref. 8

17

6666779

GASKET See Illustration STOP LEVER/ C2722 Ref. 18

18

6666769

GASKET See Illustration STOP LEVER/ C2722 Ref. 19

19

6666775

GASKET See Illustration SPEED CONTROL PLATE/ C2564 Ref. 13

20

6666797

GASKET See Illustration WATER PUMP/ B17740 Ref. 10

21

3974502

GASKET See Illustration FUEL & INJECTION PUMP/ B17748 Ref. 2
