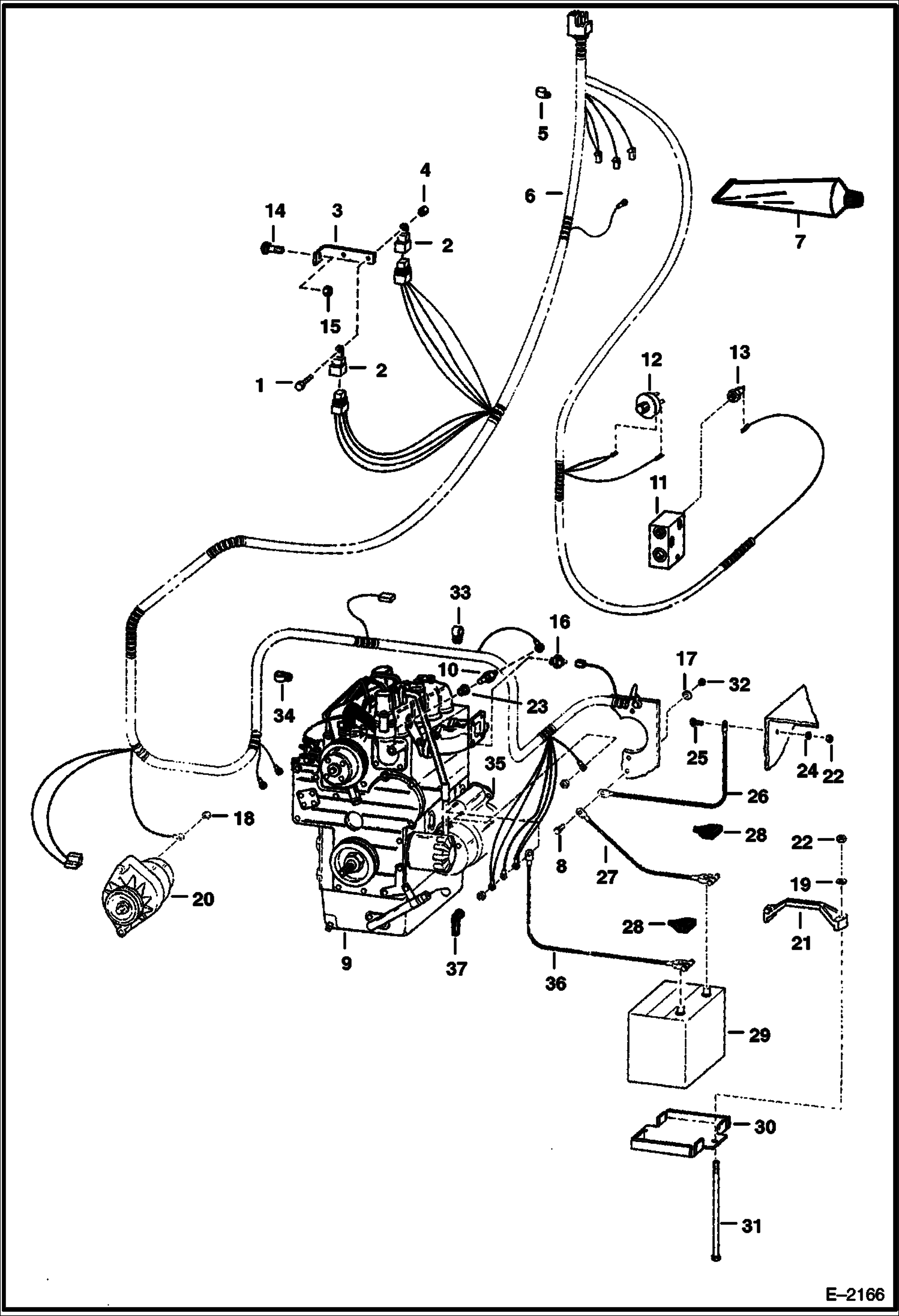

Запчасти Bobcat 500s ENGINE ELECTRICAL SYSTEM ELECTRICAL SYSTEM

1

17C412

BOLT 5

2

6651975

SWITCH

3

6702650

MOUNT

4

85D4

NUT 5

5

30H42

CLAMP

6

6703692

HARNESS

7

6599360

SEALANT, ELEC .3 OZ electrical - tube - 3 oz

8

17C616

BOLT 5

9

ENGINE See Illustration ENGINE/ B17840

10

6658818

SENDER eng temp - threaded connector

11

6565550

PORT BLOCK Was 6564222 - A

12

6671062

SWITCH hydrostatic pressure - Was 6664577 - A

13

6632633

SWITCH hyd temp

14

7C512

SCREW

15

85D5

NUT 5

16

6969775

SWITCH, OIL PRESSURE engine oil pressure - Was 6652576 - A

17

6E6

WASHER

18

1DM6

NUT Use W/Delco Alternator - Was 4DM6 - A

19

25E15

WASHER

20

ALTERNATOR See Illustration ALTERNATOR/ C3312

21

6569203

CLAMP

22

61D5

NUT

23

19F4

BUSHING Use W/Ref. 10 - If engine has 1/2

24

6E5

WASHER

25

17C512

BOLT 5

26

6563025

CABLE

27

6562905

CABLE W/Ref. 38

28

2356058

BOOT neg. post

28

6599652

BOOT pos. post

29

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

29

6630154

CAP gang - Danger

29

6630155

CAP gang - Poison

29

CAP NLA - gang - Tilt Tite - Was 6514898 - A

30

6558826

MOUNT

31

6569623

BOLT

32

61D6

NUT 5

33

30H55

CLIP

34

30H45

CLIP

35

STARTER See Illustration STARTER/ B1192

36

6557450

CABLE

37

6560172

COVER
