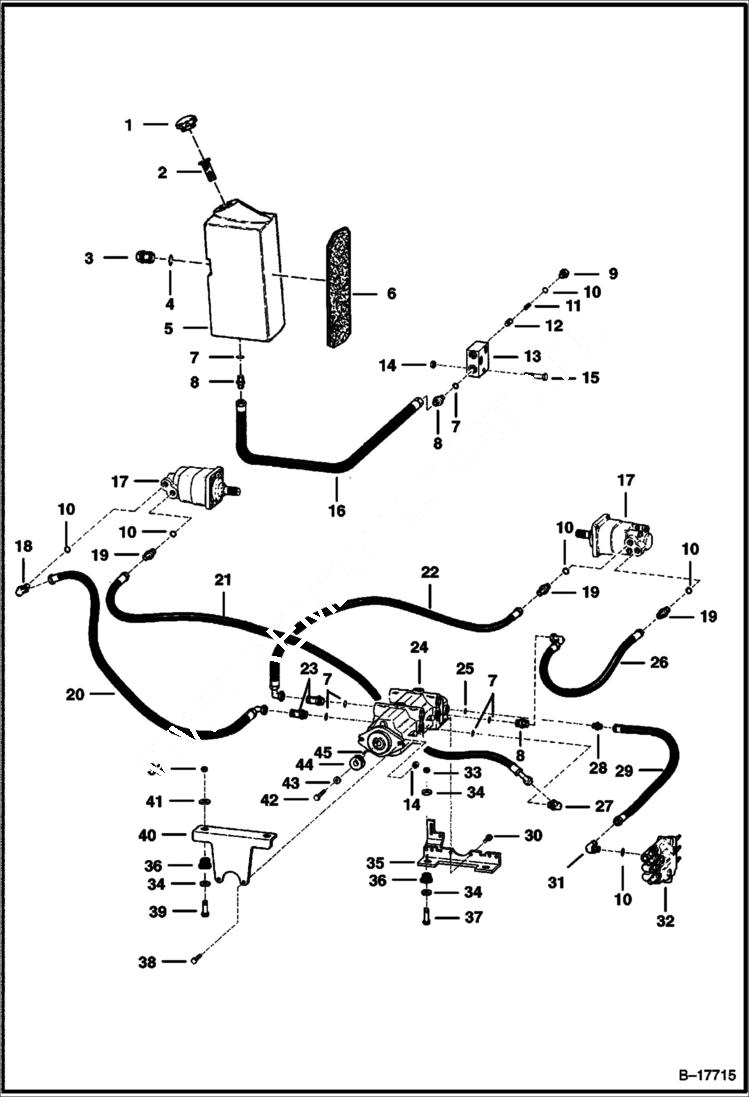

Запчасти Bobcat 500s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

6727475

CAP, OIL HYD Was 6577785 - A

2

7120881

SCREEN, FILLER Was 6569219 - A

3

6665915

GAUGE Steel - Was 6656338 - A

4

79K12

O RING 10

5

6569220

TANK nylon

6

6565012

INSULATION

7

79K12

O RING 10

8

15K8

FITTING W/Ref. 7

9

6561811

PLUG W/Ref. 10

9

VALVE NLA - Order Ref. 9-12 - Charge pressure relief valve

10

79K10

O RING 10

11

6562691

SPRING

12

6565620

POPPET

13

6565550

PORT BLOCK

14

85D6

NUT, 5

15

17C644

BOLT

16

6559007

HOSE

17

MOTOR See Illustration HYDROSTATIC MOTOR/ D1678 HYDRO.

18

18K7

FITTING W/Ref. 10

19

730963

CONNECTR W/Ref. 10

20

6565449

HOSE

21

6565725

HOSE

22

6565448

HOSE

23

16K8

CONNECTOR W/Ref. 7

24

PUMP See Illustration HYDROSTATIC PUMP/ D1607 HYDRO.

25

79K8

O RING 10

26

6578270

HOSE

27

17K8

FITTING W/Ref. 7

28

15K6

ADAPTER W/Ref. 25

29

1577507

HOSE

30

17C536

BOLT

31

6532179

ELBOW W/Ref. 10

32

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17835 HYD.

33

85D8

NUT, 5

34

6564692

WASHER

35

6706536

MOUNT Was 6576754 - A

36

6560633

DAMPENER

37

17C836

BOLT

38

35C620

BOLT 5

39

35C840

BOLT

40

6563917

MOUNT

41

6560899

WASHER

42

18C616

BOLT 5

43

616783

WASHER

44

7106572

ADAPTER, SHAFT splined - Was 6558924 - B

45

6598880

KEY
