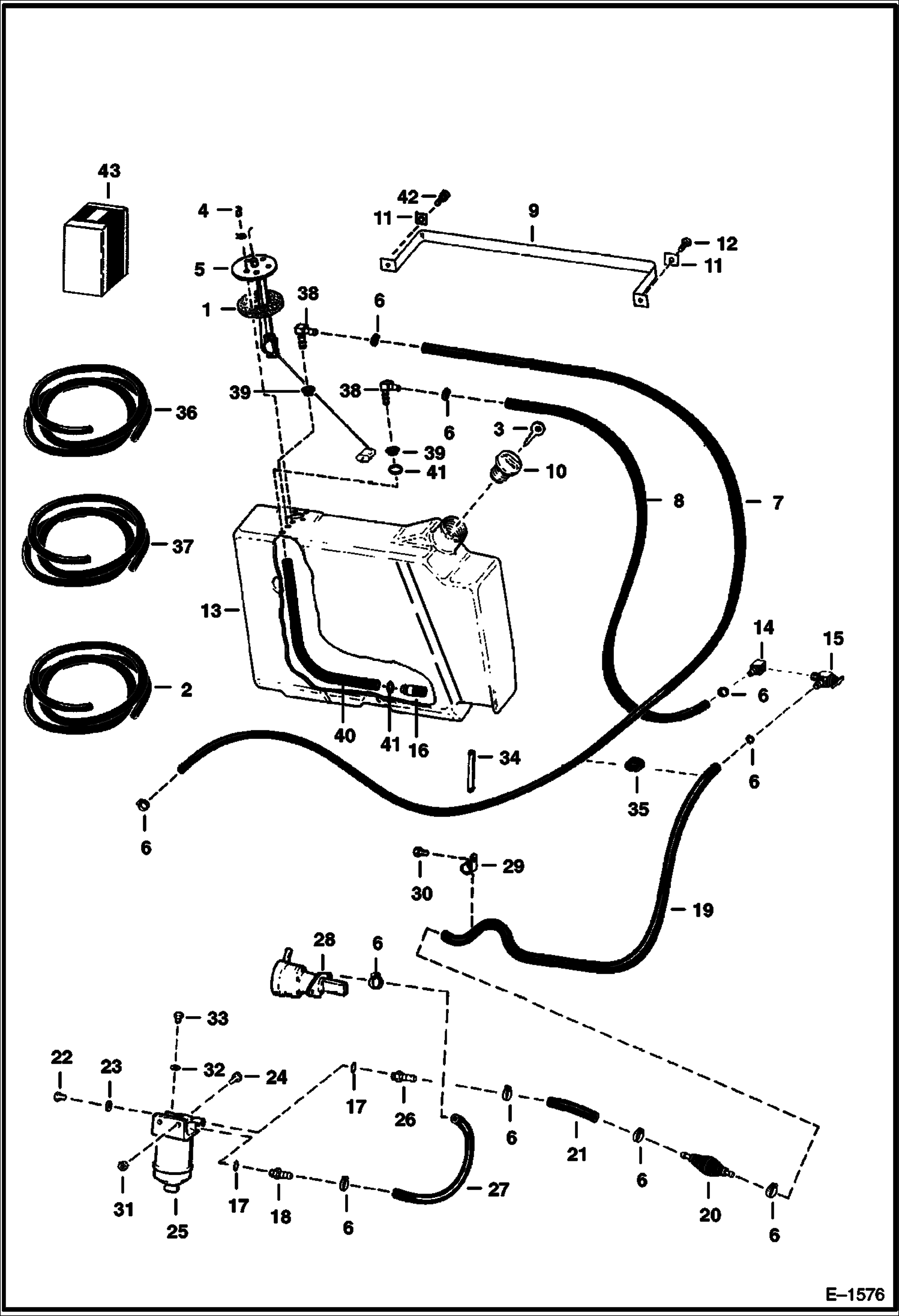

Запчасти Bobcat 500s FUEL SYSTEM MAIN FRAME

1

6630972

GASKET

2

6569752

HOSE BULK/FT bulk - sold per foot

3

6587458

KEY

4

87G1010

SCREW

5

6568175

SENDER, FUEL

6

42HS04

CLAMP, HOSE Was 6515575 - A

7

HOSE NLA - 58'' (1473 mm) - Order Ref. 36

8

HOSE NLA - 35'' (889 mm) long - Order Ref. 37

9

6562559

BAND

10

6661114

CAP. DIESEL Green

10

6661696

CAP, FUEL LOCKING locking - W/Ref. 3

11

6559447

WASHER square

12

84G3720

BOLT

13

6567909

TANK

14

6598753

ELBOW

15

6632593

VALVE shut-off

16

6650239

SCREEN, FUEL PICKUP

17

79K5

O RING 10

18

1324240

CONNECTOR

19

HOSE 38'' (965 mm) long - Order Ref. 36

20

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long

21

HOSE NLA - 3''(76 mm) long - Order Ref. 36

22

6515682

PLUG

23

6515466

WASHER

24

17C616

BOLT 5

25

FILTER See Illustration FUEL FILTER/ B5653

26

6560355

FITTING

27

HOSE NLA - 12'' (305 mm) long - Order Ref. 37

28

6598121

FUEL PUMP See Illustration FUEL & INJECTION PUMP/ B17748 FUEL

29

30H31

CLAMP 10

30

5CM1012

BOLT

31

61D6

NUT 5

32

6515468

WASHER

33

6515676

PLUG

34

6513471

CLAMP

35

6515603

GROMMET

36

6577821

HOSE bulk - sold per foot

37

6577822

HOSE bulk - sold per foot

38

6598908

ELBOW

39

6553411

BUSHING 0.38'' ID

40

HOSE NLA - 21'' (533 mm) long - Order Ref. 2

41

6661213

RING, COMPRESSION

42

84G3712

BOLT 5
