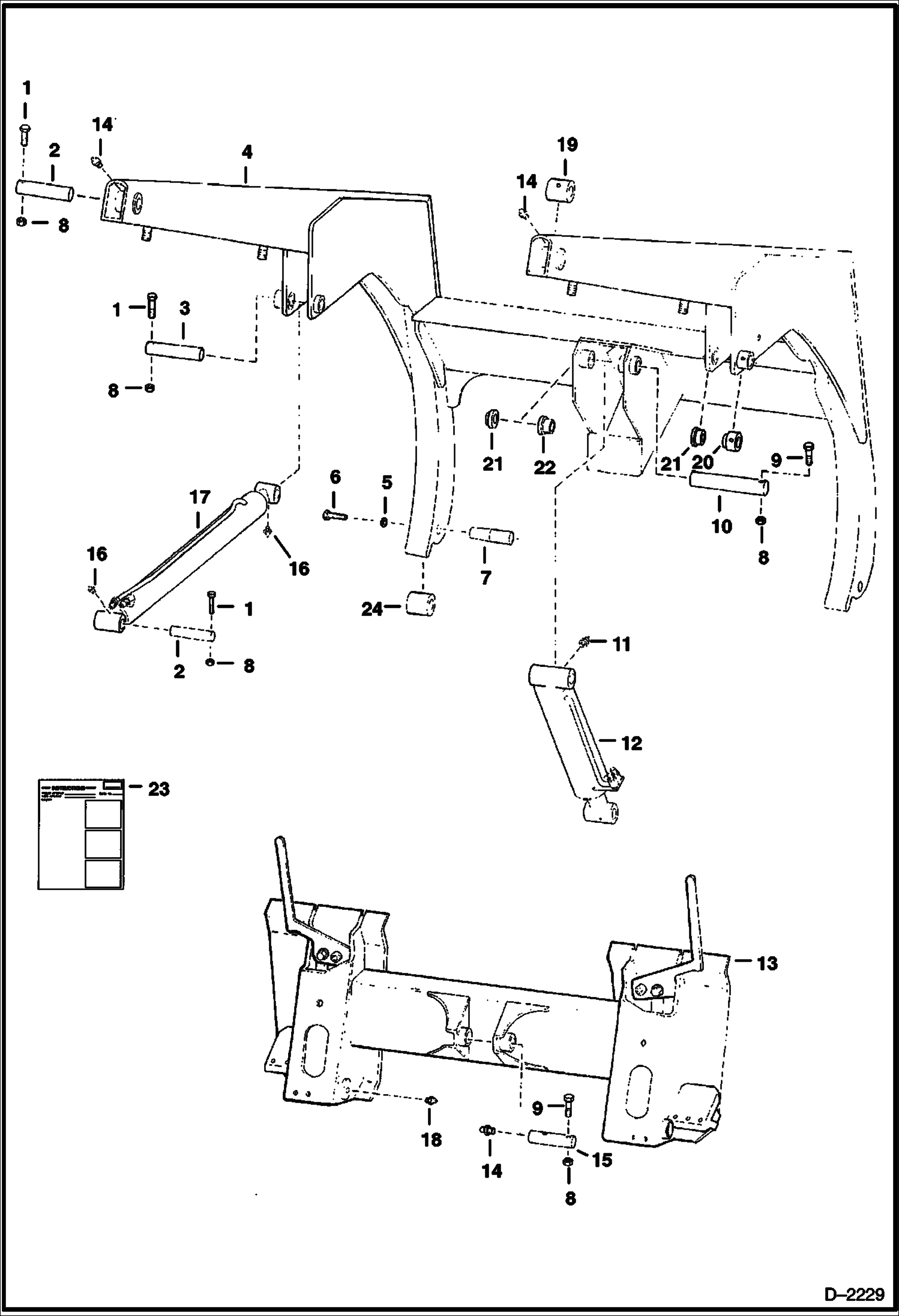

Запчасти Bobcat 500s LIFT ARMS & BOB-TACH (S/N 11146 & Above) MAIN FRAME

1

17C640

BOLT 5

2

6547595

PIN

3

6547593

PIN, PIVOT

4

LIFT ARM NLA - Order 6711780 Lift Arm & 6565503 Mount - Was 6705115 - A

5

6555455

WASHER

6

17C1020

BOLT 5 1.25'' (31,8 mm) long

6

31C1064

BOLT 4'' (101,6 mm) long - Was 17C001064B - B

7

PIN NLA - Order 6707521 Pin Kit W/6732012 Pin, 31C001064B Bolt & Ref. 23 - Was 6700301 - A

7

6707521

PIN KIT

7

6732012

PIN, PIVOT Was 6707042 - A

8

85D6

NUT, 5

9

17C632

BOLT 5

10

6704288

PIN, PIVOT Was 6553061 - A

11

10H35

FITTING, GREASE 10

12

CYLINDER See Illustration TILT CYLINDER/ C2868 TILT

13

BOB-TACH See Illustration BOB-TACH/ C2658 SALES

14

10H25

FITTING, GREASE 5

15

6703572

PIN, PIVOT Was 6560704 - A

16

11H25

FITTING10

17

CYLINDER See Illustration LIFT CYLINDER/ B6942 LIFT

18

743332

FITTING, GREASE 5

19

6578356

BUSHING Weld On

20

6555987

BUSHING weld on

21

6555989

BUSHING Weld On

22

6557095

BUSHING Weld On

23

6722967

INSTRUCTIONS for 6707521 Pin Kit

24

6714874

BUSHING, WELD-ON weld-on-W/tapered hole - 1.25''(31,8 mm)
