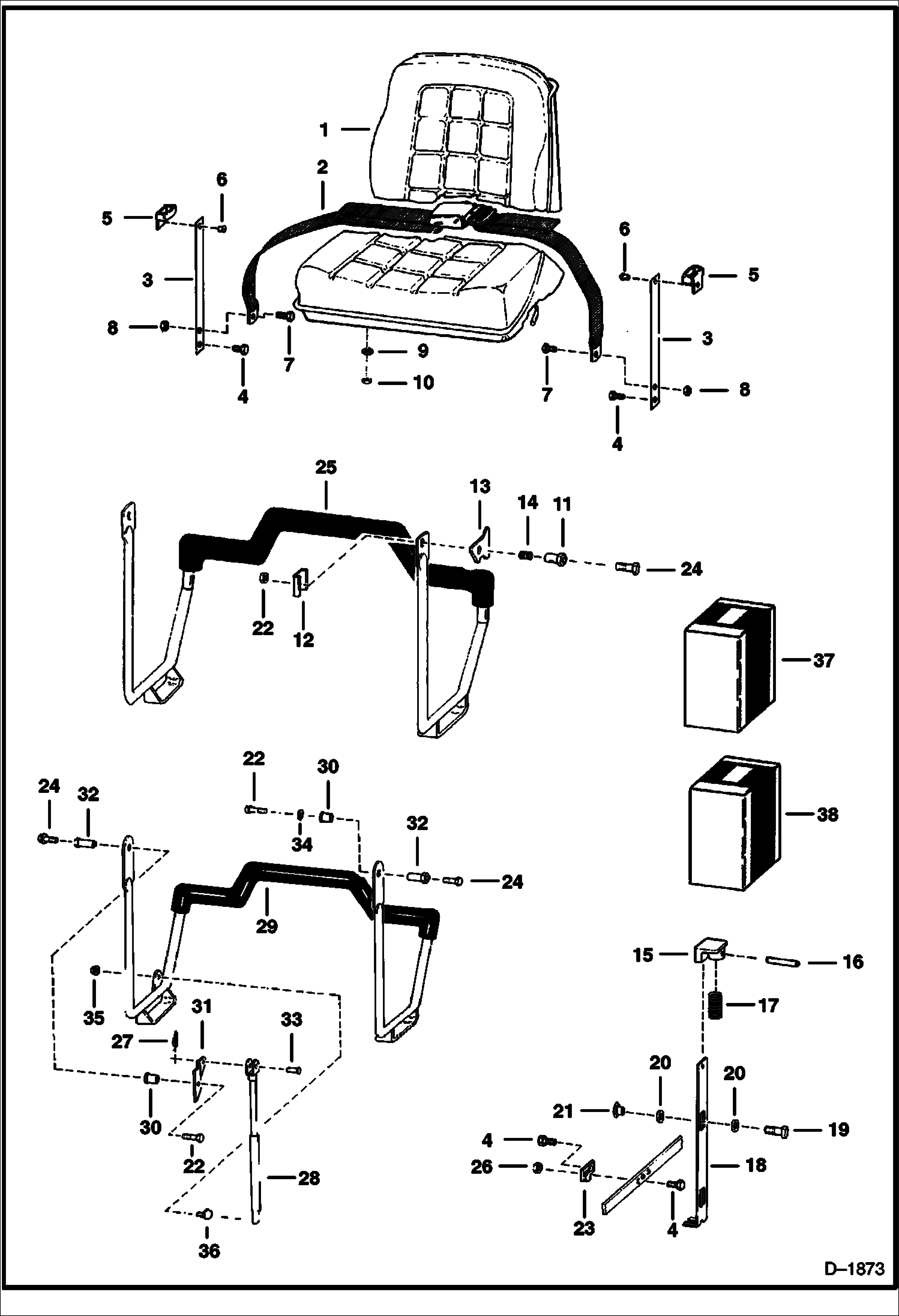

Запчасти Bobcat 500s SEAT & SEAT BAR MAIN FRAME

1

SEAT See Illustration SEAT/ B7185 NLA - Was 6665401 - A

2

SEAT BELT NLA - Order Ref. 38 Kit - Was 6564774 - A

2

SEAT BELT NLA - Order 6675074 Seat Belt & (2) of Ref. 3 (6725373 spring plates) - Was 6667875 - A

2

SEAT BELT NLA - w/spring plates - Order 6675074 Seat Belt & (2) of Ref. 3 (6725373 spring plate) - Was 6725403 - A

2

6675074

SEAT BELT W/O spring plates

3

GUIDE ASSY. NLA - W/Ref. 5 & 6 - 13.75 (349,3 mm) Use W/Ref. 2 (NLA/6564774 Seat Belt) - Was 6565354 - A

3

GUIDE ASSY. NLA - W/Ref. 5 & 6 - 12.25 (311,2 mm) Use W/Ref. 2 (NLA/6667875 Seat Belt) - Order 6711908 spring plates Ref. 5 & (2) of Ref. 6 - Was 6711907 - A

3

6711908

SPRING PLATE Use W/Ref. 2 (NLA/6667875 Seat Belt)

3

6725373

SPRING PLATE Use W/Ref. 2 (6675074 seal belt)

4

84G3712

BOLT 5

5

GUIDE NLA - Order 6703703 - Was 6565355

6

6630207

RIVET 5 Was 6512797 - A

7

17C716

BOLT

8

61D7

NUT

9

4E5

WASHER

10

61D5

NUT

11

6568742

BUSHING

12

6563557

WASHER

13

6563313

RETAINER

14

6503387

SPRING

15

6563148

BLOCK, SPRING

16

14J2512

PIN 5

17

6702430

SPRING, COMPRESSION

18

6563150

LOCK

19

17C612

BOLT 5

20

6700170

WASHER nylon

21

6559479

NUT

22

17C616

BOLT 5

23

6563151

LINK

24

35C608

BOLT

25

6706324

SEAT BAR 1 piece - Was 6703301 - A

26

83D6

NUT 5

27

6631418

RING, RETAINING

28

6664207

GAS SPRING

29

6716778

SEAT BAR For Use W/ gas spring - Was 6706358 - A

30

6706387

BUSHING

31

6706388

BRACKET

32

6706389

BUSHING

33

4F5062

PIN

34

25E21

WASHER 5

35

83D5

NUT 5

36

6649244

BALL STUD

37

6706796

KIT See Illustration SEAT BAR KIT/ C3341 GAS SPRING SEAT BAR

38

KIT NLA - W/Ref. 2 & 3 - Order Ref. 2 (6725403 Seat Belt) - Was 6713061 - A
