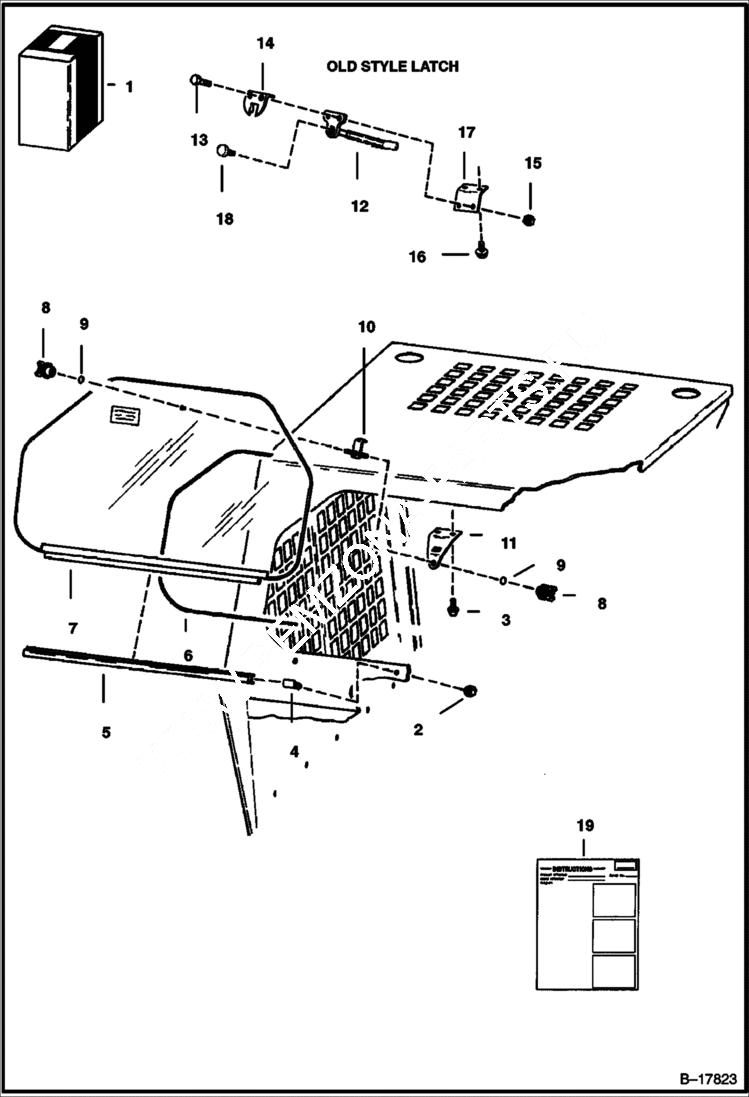

Запчасти Bobcat 500s CAB WINDOWS ACCESSORIES & OPTIONS

1

KIT See Illustration CAB WINDOW KIT/ B17825 NLA

2

59D4

NUT 5

3

84G3112

BOLT 5

4

6576513

BOLT

5

6630926

HINGE

6

6555351

SEAL bulk - sold per foot

7

6630925

WINDOW

8

6571529

KNOB

9

58K109

O RING 10

10

6571532

BRACKET

11

6571533

MOUNT

12

LATCH NLA - Order Ref. 3, 8-11

13

85G1014

SCREW

14

CLIP NLA - Order Ref. 3, 8-11

15

50D10

LOCKNUT

16

84G3112

BOLT 5

17

6568540

MOUNT

18

KNOB NLA - Was 6631665 - A

19

6566955

INSTRUCTIONS Rear Window
