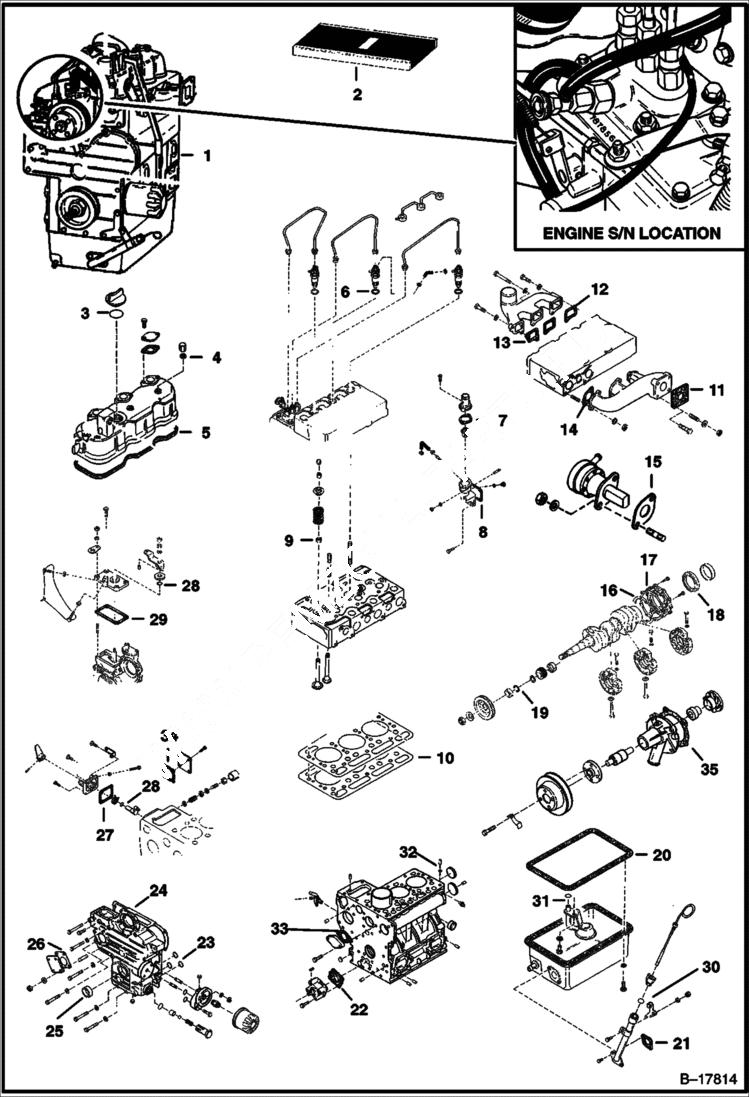

Запчасти Bobcat 500s ENGINE & GASKET KITS (Kubota D950-B) POWER UNIT

1

ENGINE NLA - Kubota D950-B - Does not include starter, alternator & flywheel - Order 6563734REM - Was 6563734 - A

1

6563734REM

ENGINE

1

SHORT BLOCK NLA

2

6630550

GASKET KIT Upper - Does not include shim - Ref. 7 - 14

2

6630551

GASKET KIT Lower - Does not include rear oil seal - Ref. 15 - 35

3

6684782

O-RING See Illustration ROCKER ARM COVER/ B17815 - oil fill plug - Was 3966602 - A

4

6599116

GASKET See Illustration ENGINE & GASKET KITS/ B17814 Ref. 4

5

6599112

GASKET See Illustration ENGINE & GASKET KITS/ B17814 Ref. 2

6

3974255

WASHER See Illustration INJECTOR NOZZLES/ B17749 Ref. 2

7

6681757

GASKET THERMOSTAT See Illustration WATER FLANGE & THERMOSTAT/ B17741 W/Ref. 12 - Was 6666813 - A

8

6666777

GASKET See Illustration WATER FLANGE & THERMOSTAT/ B17741 Ref. 2 - WAS 6599110 - A

9

3974162

SEAL See Illustration ROCKER ARM & VALVES/ C2650 Ref. 6

10

6666794

GASKET See Illustration CYLINDER HEAD/ B17726 Ref. 10 - WAS 6599113 - A

11

6575580

GASKET See Illustration MANIFOLDS/ C2725 - muffler - A

12

6666771

GASKET See Illustration MANIFOLDS/ C2725 Ref. 12 - WAS 3974148B - A

13

6666770

GASKET See Illustration MANIFOLDS/ C2725 Ref. 2 - WAS 3974147B - A

14

6666796

GASKET See Illustration MANIFOLDS/ C2725 Ref. 4 - WAS 3974152B - A

15

3974502

GASKET See Illustration FUEL & INJECTION PUMP/ B17748 Ref. 2

16

6599106

GASKET See Illustration MAIN BEARING CASE/ B17733 Ref. 4

17

6599107

GASKET See Illustration MAIN BEARING CASE/ B17733 Ref. 6

18

3986831

OIL SEAL See Illustration MAIN BEARING CASE/ B17733 Ref. 9

19

3966521

O'RING See Illustration PISTON & CRANKSHAFT/ B17732 Ref. 18

20

6666798

GASKET See Illustration OIL PAN/ B17816 Ref. 2 - WAS 6599111 - A

21

6599142

GASKET See Illustration OIL PAN/ B17816 Ref. 5

22

6666773

GASKET See Illustration CRANKCASE/ B17730 Ref. 21 - WAS 6599108 - A

23

6599081

O-RING See Illustration GEARCASE/ B17729 Ref. 3

24

6666795

GASKET See Illustration GEARCASE/ B17729 Ref. 2 - WAS 6652623 - A

25

6631475

SEAL See Illustration GEARCASE/ B17729 Ref. 24

26

6714543

GASKET See Illustration GEARCASE/ B17729 Ref. 28 - WAS 6666785 - A

27

6666769

GASKET See Illustration STOP LEVER/ C2722 Ref. 19 - WAS 3974108B - A

28

3974280

O RING See Illustration SPEED CONTROL PLATE/ C2564 See Illustration STOP LEVER/ C2722 Ref. 8 & 9

29

6666775

GASKET See Illustration SPEED CONTROL PLATE/ C2564 Ref. 13 - WAS 6599109 - A

30

25K40100

O RING 10 See Illustration OIL PAN/ B17816 Ref. 12

31

3966514

O'RING See Illustration OIL PAN/ B17816 Ref. 8

32

3974038

O RING See Illustration CRANKCASE/ B17730 Ref. 15

33

6666778

GASKET See Illustration CRANKCASE/ B17730 Ref. 17

34

6666779

GASKET See Illustration STOP LEVER/ C2722 Ref. 18

35

6666797

GASKET See Illustration WATER PUMP/ B17740 Ref. 10
