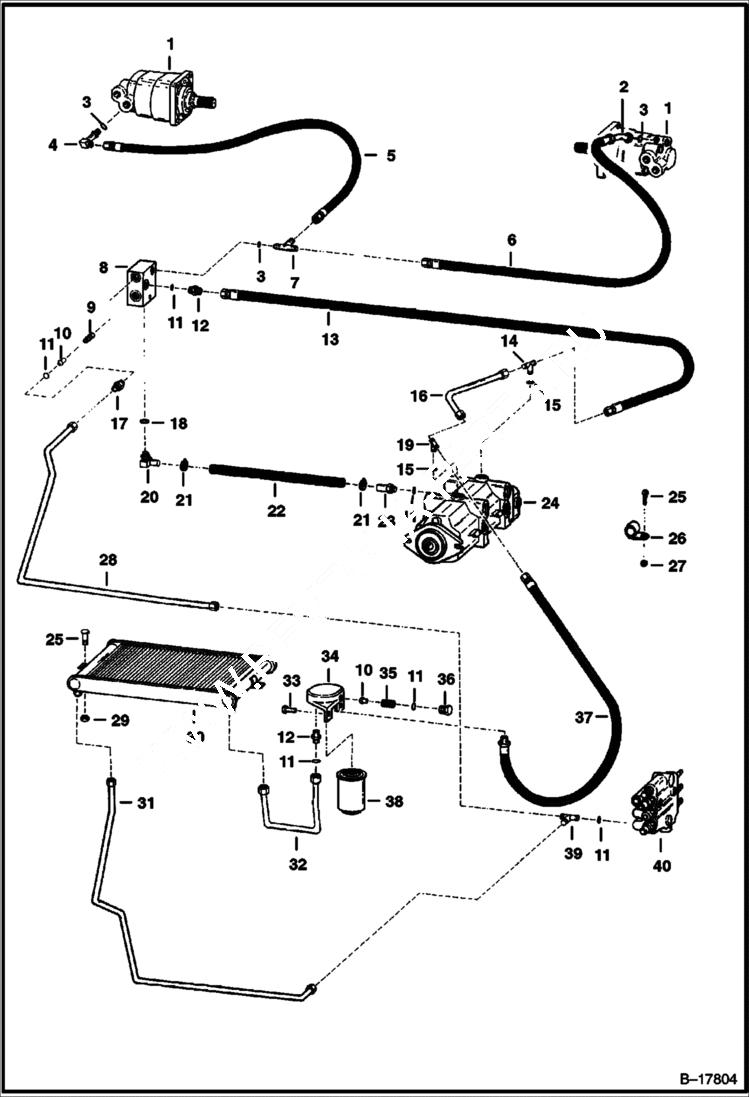

Запчасти Bobcat 500s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

MOTOR See Illustration HYDROSTATIC MOTOR/ B17678

2

15K5

FITTING W/Ref. 3

3

79K6

O RING 10 Was 91F000005B - B

4

6558510

ELBOW W/Ref. 3

5

6577892

HOSE Was 6564148 - A

6

6577891

HOSE Was 6564717 - A

7

21K5

TEE W/Ref. 3

8

6565550

PORT BLOCK port

9

6559896

SPRING

9

6564884

SPRING

10

6515078

POPPET

11

79K10

O RING 10 Was 91F000007B - B

12

15K7

FITTING W/Ref. 11

13

6564150

HOSE Use W/O Backup Alarm

13

6702181

HOSE Use W/Backup Alarm

14

19K6

FITTING W/Ref. 15

15

79K8

O RING 10 Was 91F000006B - B

16

6563645

TUBE

17

6559518

ADAPTER W/Ref. 11

18

79K12

O RING 10 Was 91F000008B - B

19

6563653

TEE W/Ref. 15

20

6567886

ELBOW W/Ref. 18

21

42H12

CLAMP 10

22

6567888

HOSE

23

6567885

ADAPTER W/Ref. 11

24

PUMP See Illustration HYDROSTATIC PUMP/ D1607

25

37C616

BOLT Was 6514537 - A

26

30H50

CLIP

26

30H56

CLIP

27

61D6

NUT 5

28

6564786

TUBE

28

6564514

TUBE

29

83D6

NUT 5

30

6560954

OIL COOLER

31

6563915

TUBE

31

6564484

TUBE

32

6563916

TUBE

33

84G3712

BOLT 5

34

6564877

HEAD

34

HEAD NLA - Was 6567863 - A

35

6553897

SPRING

36

6561811

PLUG

37

6565960

HOSE

38

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long - Was 6599543 - A

38

6630494

ELEMENT

39

21K7

TEE W/Ref. 11

40

VALVE See Illustration HYDRAULIC VALVE/ C2012
