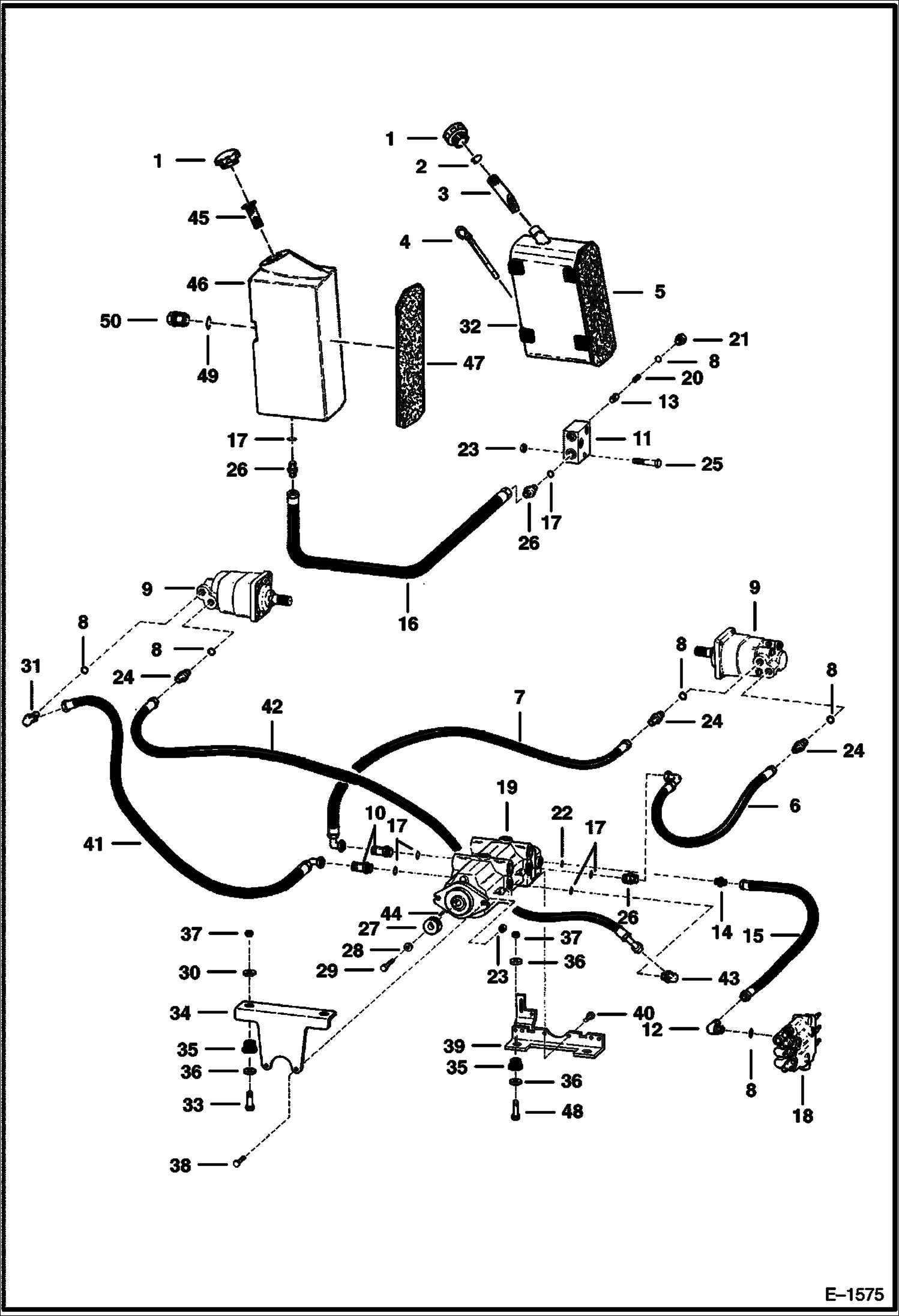

Запчасти Bobcat 500s HYDROSTATIC CIRCUITRY (S/N 13001 & Above) HYDROSTATIC SYSTEM

1

BREATHER CAP NLA - Pack of 12 - Was 1779011B - A

1

6577785

CAP breather - Qty. of 1

2

713133

SNAP RING

3

6558604

SCREEN

4

6563979

DIPSTICK

5

TANK NLA - steel - Order Ref. 2, 3, 4 & 5 - Was 6563981 - A

5

6568197

TANK steel - Less Rubber Strip and Insulator - Was 6568196 - A

6

6578270

HOSE Was 6564367 - A

7

6565448

HOSE

8

79K10

O RING 10

9

MOTOR See Illustration HYDROSTATIC MOTOR/ B17678 HYDRO.

10

16K8

CONNECTOR W/Ref. 17

11

6565550

PORT BLOCK port

12

6532179

ELBOW W/Ref. 8 - Was 17K000007B - A

13

6565620

POPPET

14

15K6

ADAPTER W/Ref. 22

15

1577507

HOSE

16

6559007

HOSE

17

79K12

O RING 10

18

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2402 HYD.

19

PUMP See Illustration HYDROSTATIC PUMP/ D1607 HYDRO.

20

6562691

SPRING

21

6561811

PLUG W/Ref. 8

22

79K8

O RING 10

23

85D6

NUT, 5

24

730963

CONNECTR W/Ref. 8

25

17C644

BOLT

26

15K8

FITTING W/Ref. 17

27

6558924

ADAPTER *SEE NOTES* splined

28

616783

WASHER

29

18C616

BOLT 5

30

6560899

WASHER

31

18K7

FITTING W/Ref. 8

32

6559448

SEAL rubber - Order 12''(304,8 mm) - Was 6562555 - A

33

35C840

BOLT

34

6563917

MOUNT

35

6560633

DAMPENER

36

6564692

WASHER

37

85D8

NUT, 5

38

35C620

BOLT 5

39

6706536

MOUNT See Illustration HAND CONTROLS/ E1401 WAS 6576754 - A

40

17C536

BOLT Was 17C000532B - B

41

6565449

HOSE

42

6565725

HOSE

43

17K8

FITTING W/Ref. 17

44

6598880

KEY

45

7120881

SCREEN, FILLER Was 6569219 - A

46

6569220

TANK nylon

47

6565012

INSULATION

48

17C836

BOLT

49

25K40030

O RING 10 for plastic sight guage

49

79K12

O RING 10 for steel sight guage

50

SIGHT GUAGE NLA - plastic - Order 6656338 Sight Guage & 79K000012B O-ring - Was 6631610 - A

50

6656338

SIGHT GAUGE steel - Also Order 79K000012B O-ring
