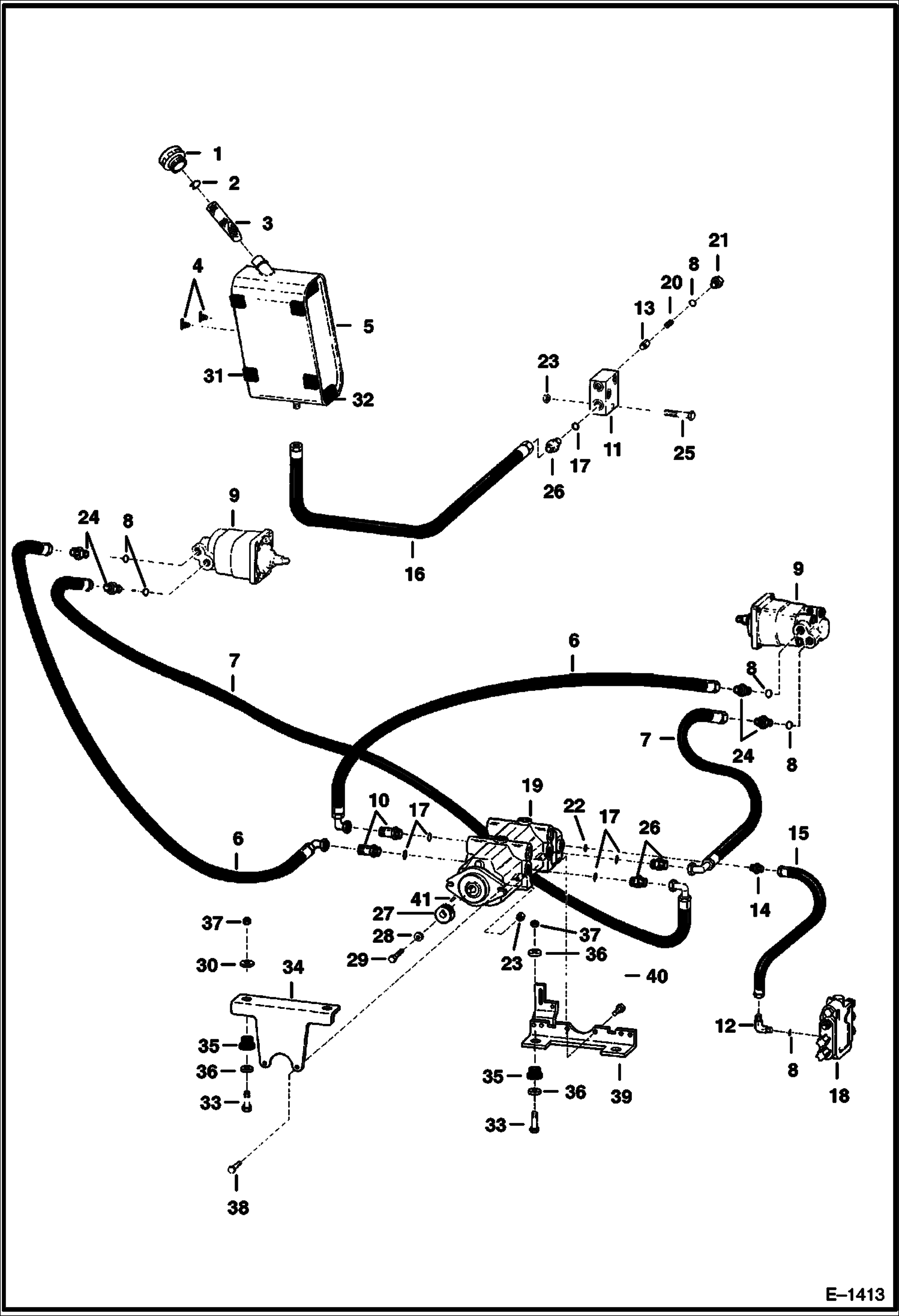

Запчасти Bobcat 500s HYDROSTATIC CIRCUITRY (S/N 12999 & Below) HYDROSTATIC SYSTEM

1

BREATHER CAP NLA - Pack of 12 - Was 1779011B - A

1

6577785

CAP breather - Qty. of 1

2

713133

SNAP RING

3

6558604

SCREEN

4

72F1

FITTING

5

TANK See Illustration HYDROSTATIC CIRCUITRY/ E1575 NLA - Order Ref. 2, 3, (6563979) DIPSTICK & 6568197 TANK - WAS 6562624 - A

6

6578270

HOSE Was 6564367 - A

7

6564805

HOSE

8

79K10

O RING 10

9

MOTOR See Illustration HYDROSTATIC MOTOR/ B17678 HYDRO.

10

16K8

CONNECTOR W/Ref. 17

11

6565550

PORT BLOCK port

12

17K7

ELBOW W/Ref. 8

13

6565620

POPPET

14

15K6

ADAPTER W/Ref. 22

15

6564150

HOSE

16

6559007

HOSE

17

79K12

O RING 10

18

VALVE See Illustration HYDRAULIC VALVE/ C2012 HYD.

19

PUMP See Illustration HYDROSTATIC PUMP/ D1607 HYDRO.

20

6562691

SPRING

21

6561811

PLUG W/Ref. 8

22

79K8

O RING 10

23

85D6

NUT, 5

24

730963

CONNECTR W/Ref. 8

25

17C644

BOLT

26

15K8

FITTING W/Ref. 17

27

7106572

ADAPTER, SHAFT splined - Was 6558924 - A

28

616783

WASHER

29

18C616

BOLT 5

30

6560899

WASHER

31

6559444

BLOCK rubber

32

6559448

SEAL rubber - Order 12''(304,8 mm) - Was 6562555 - A

33

35C840

BOLT

34

6563917

MOUNT

35

6560633

DAMPENER

36

6564692

WASHER

37

85D8

NUT, 5

38

31C620

BOLT

39

6706536

MOUNT Was 6576754 - A

40

17C536

BOLT Was 17C000532B - B

41

6598880

KEY
