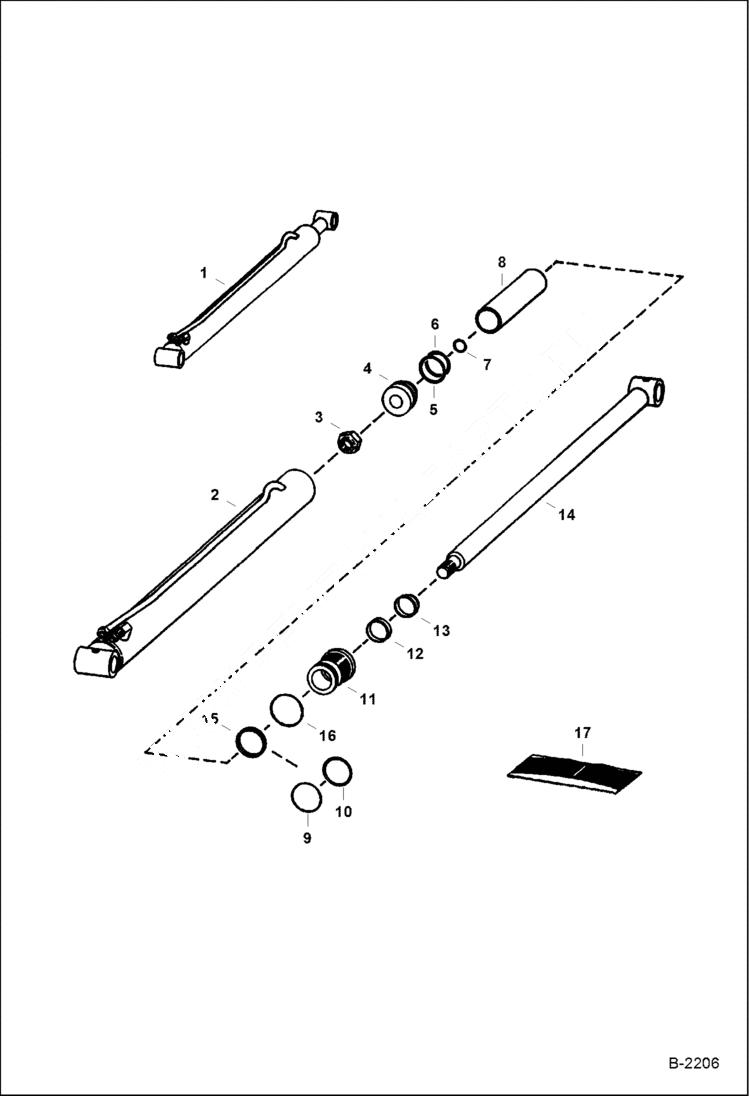

Запчасти Bobcat 500s LIFT CYLINDER (W/Welded On Tube) HYDRAULIC SYSTEM

1

CYLINDER NLA - Ref. 2-14 - Order 6586671 Cyl.

2

CASE NLA - Order 6586674 Case & 6529384 Tube - Was 6592615 - A

3

92D12

NUT Was 86D000012B - B

4

6558196

PISTON

5

54K30118

O-RING Was NSS - D

6

6516231

SEAL Was NSS - D

7

O-RING NSS

8

6514501

SPACER

9

54K40124

O-RING Was NSS - D

10

73K224

RING Was NSS - D

11

6539323

HEAD Was 6532702 - A

12

6667324

SEAL Was NSS - D

13

6665208

SEAL Was NSS - D

14

6539304

SHAFT, ROD CYL LIFT Was 6592884 - A

15

7008781

SEAL, QUAD

16

82K136

O-RING

17

7137769

KIT, SEAL Ref. 3, 5-7, 12, 13, 15, & 16 - Was 6803329 - A
