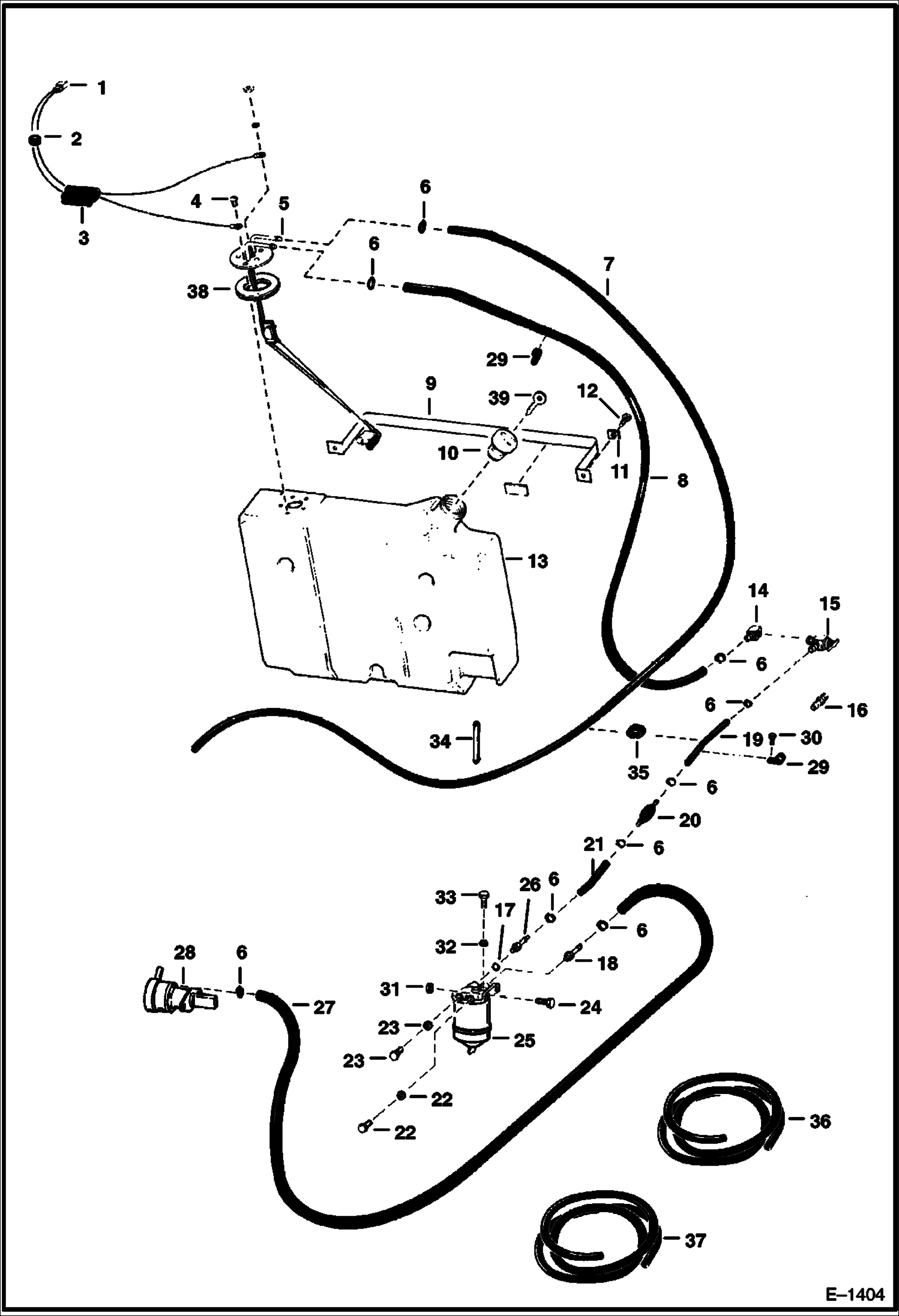

Запчасти Bobcat 500s FUEL SYSTEM (S/N 13005 & Below) MAIN FRAME

1

6560117

WIRE

2

742876

GROMMET

3

6562606

SEAL

4

87G1010

SCREW Was 85G001010B - B

5

6563210

SENDER Fuel - includes gasket

6

42HS04

CLAMP, HOSE Was 6515575 - A

7

HOSE NLA - 58'' (1473 mm) long - Order Ref. 36

8

HOSE NLA - 35'' (899 mm) long - Order Ref. 37

9

6562559

BAND

10

6661114

CAP. DIESEL Green - Was 6632468 - A

10

CAP NLA - Code GC020 - W/Ref. 39 - Was 6635877 - A

10

6661696

CAP, FUEL LOCKING locking - Code PK510 - W/Ref. 39 - Was 6635877 - A

11

6559447

WASHER square

12

84G3720

BOLT

13

TANK See BTI216 NLA

14

6598753

ELBOW

15

6632593

VALVE shut-off - Was 6512138 - A

16

6505813

CONNECTOR barbed - Use W/Non Barbed Fuel Valve

17

79K5

O RING 10 Was 91F000004B - B

18

1324240

CONNECTOR

19

HOSE NLA - 38'' (965 mm) long - Order Ref. 36

20

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long - A

21

HOSE NLA - 3'' (76 mm) long - Order Ref. 36

22

6515682

PLUG

23

6515466

WASHER

24

17C616

BOLT 5

25

FILTER See Illustration FUEL FILTER/ B5653

26

6560355

FITTING

27

HOSE NLA - 12'' (305 mm) long - Order Ref. 37

28

6598121

FUEL PUMP See Illustration FUEL & INJECTION PUMP/ B17748 WAS 6599008 - A

29

30H31

CLAMP 10

30

5CM1012

BOLT

31

61D6

NUT 5

32

6515468

WASHER

33

6515676

PLUG

34

6513471

CLAMP

35

6515603

GROMMET

36

6577821

HOSE bulk - sold per foot - Was 672221 - B

37

6577822

HOSE bulk - Sold Per Foot - Was 6562515 - B

38

6630972

GASKET

39

6654374

KEY Code GC020

39

6587458

KEY Code PK510
