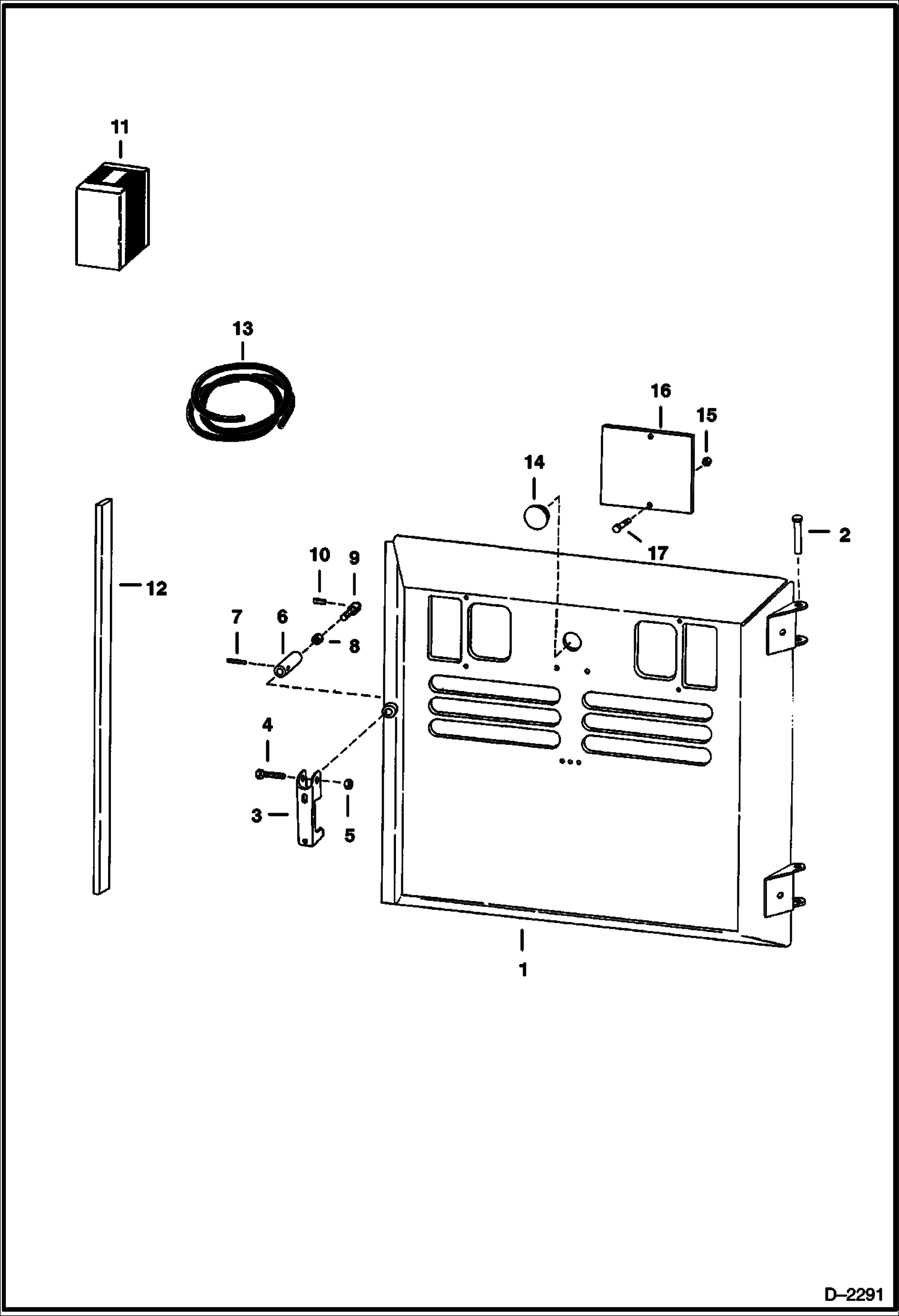

Запчасти Bobcat 500s REAR DOOR MAIN FRAME

1

6707690

REAR DOOR

2

6564340

PIN

3

6563681

HANDLE

4

38C624

BOLT 5

5

85D5

NUT 5

6

6565628

NUT

7

33G404

SET SCRW5

8

6565627

NUT

9

6565629

SCREW

10

6599361

PIN

11

6579448

LATCH KIT Latch - Ref. 3 - 10

12

SEAL NLA - 33.5'' (850,9MM) LONG - Order Ref. 12

13

SEAL NLA - bulk - sold per foot - Was 6632217 - B

14

6660646

PLUG

15

55D4

NUT

16

6707725

COVER Domestic

17

17C412

BOLT 5
