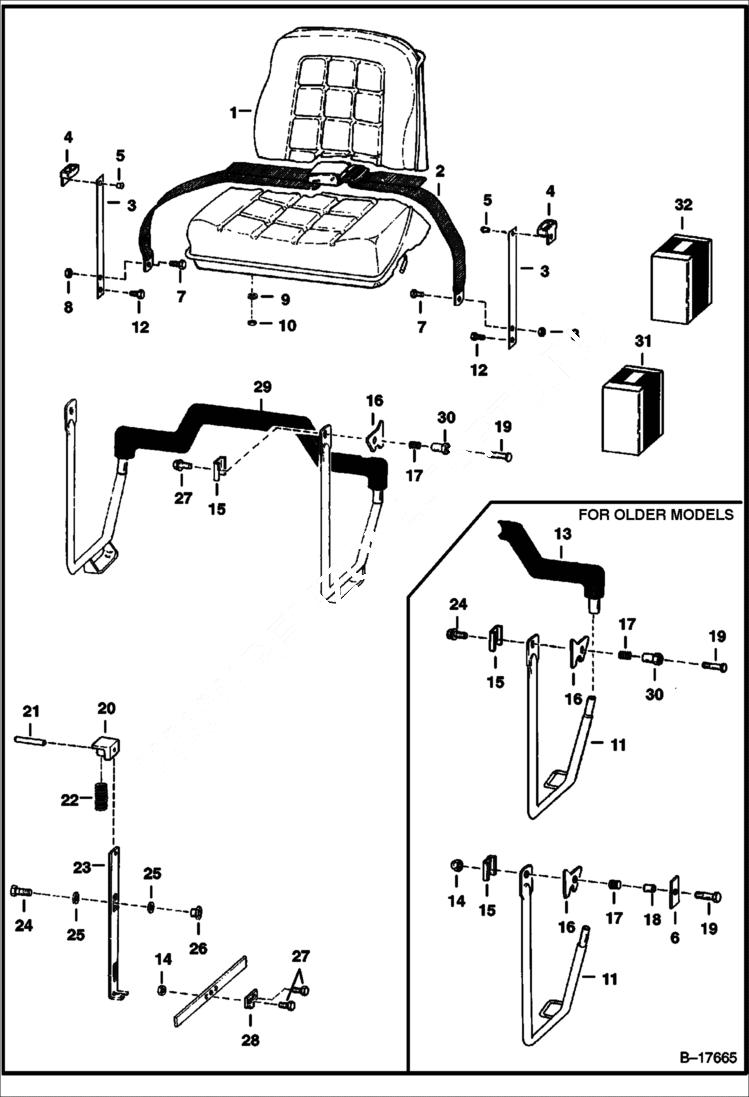

Запчасти Bobcat 500s SEAT & SEAT BAR MAIN FRAME

1

SEAT See Illustration SEAT/ B7185 NLA - WAS 6665401 - A

2

SEAT BELT NLA - Order Ref. 33 - Was 6564774 - A

2

SEAT BELT NLA - Order 6675074 Seat Belt & (2) of Ref. 3 (Ref. 3 (6725373 spring plates) - Was 6667875 - A

2

SEAT BELT NLA - W/Spring Plates - Order 6675074 Seat Belt & (2) of Ref. 3 (6725376 Spring Plate)

2

6675074

SEAT BELT W/O spring plates

3

GUIDE ASSY. NLA - W/Ref. 5 & 6 - (13.75'' (311,2 mm) Use W/NLA 6667875 Seat Belt - Was 6565354 - A

3

GUIDE ASSY. NLA - W/Ref. 5 & 6 - (12.25'' (311,2 mm) Use W/Ref. 2 (NLA 6667875 Seat Belt) - Was 6711907 - A

4

GUIDE NLA - Order 6703703 - Was 6565355

5

6630207

RIVET 5 Was 6512797 - A

6

6564506

WASHER

7

17C716

BOLT

8

61D7

NUT

9

4E5

WASHER Was 4E000006B - B

10

61D5

NUT Was 61D000006B - B

11

ARM NLA - L.H. - Order Ref. 31 - Was 6563296 - A

11

ARM NLA - R.H. - Order Ref. 31 - Was 6563295 - A

12

84G3712

BOLT 5

13

SEAT BAR NLA - Order Ref. - Was 6563095 - A

14

83D6

NUT 5

15

6563557

WASHER

16

6563313

RETAINER

17

6704453

SPRING Was 6503387 - A

18

6568742

BUSHING

19

17C636

BOLT

20

6563148

BLOCK, SPRING

21

14J2512

PIN 5

22

6702430

SPRING, COMPRESSION Was 6563149 - C

23

6563150

LOCK

24

17C612

BOLT 5

25

6700170

WASHER nylon - Was 6563152 - A

26

6559479

NUT

27

17C616

BOLT 5

28

6563151

LINK

29

6706324

SEAT BAR 1 piece - Was 6703301 - A

30

6564507

BUSHING

31

6706796

KIT See Illustration SEAT BAR KIT/ C3341 GAS SPRING SEAT BAR

32

KIT NLA - W/Ref. 2 & 3 - Order Ref. 2 (6725403 Seat Belt - Was 6713061 - A
