Запчасти Bobcat 500s VALVE TRAIN (S/N 12001 & Above) POWER UNIT

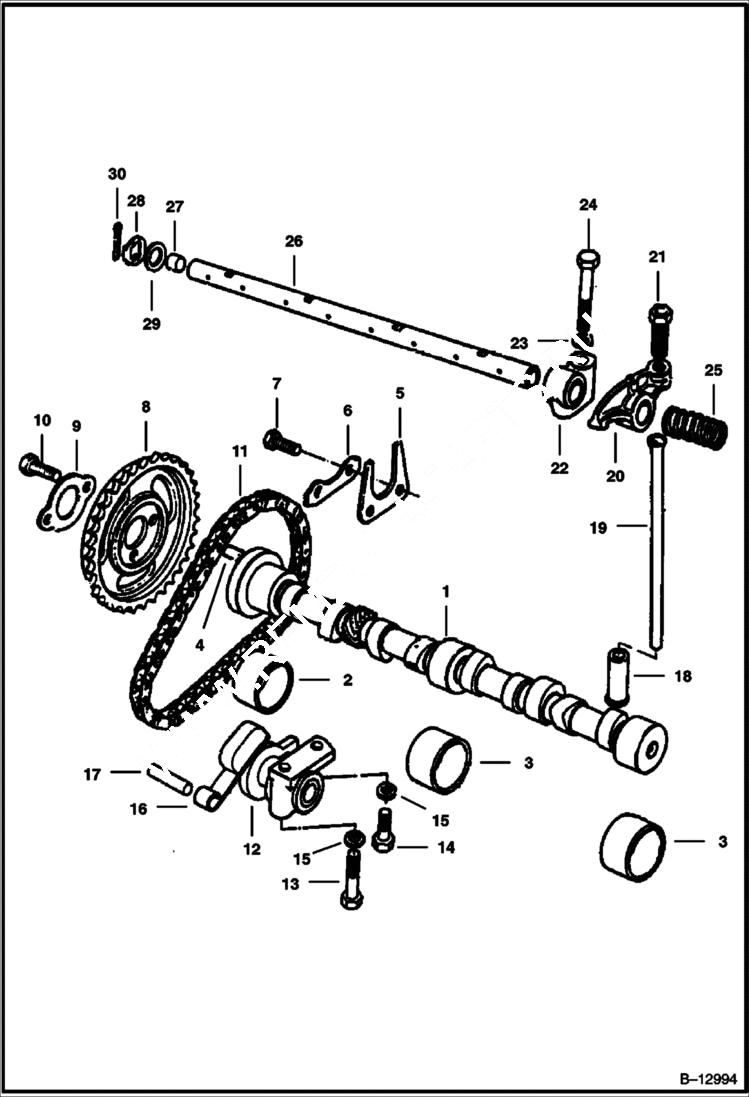

Схема запчастей Bobcat 500s - VALVE TRAIN (S/N 12001 & Above) POWER UNIT

Артикул

Название

Примечание

Количество

1

CAMSHAFT NLA - Was 6654287 - A

2

6512430

BEARING camshaft (Std. ID - STD. OD)

2

6512433

BEARING camshaft (Std. ID + .020 OD)

3

BEARING NLA - Order 6696958 - camshaft - Center & Rear - Std. I.D. & O.D. - Was 6512431 - A

3

BEARING NLA - Camshaft (Std. ID + .020 OD) - Was 6512434 - A

4

DOWEL NLA - Was 6512530 - A

5

6512437

PLATE

6

6672534

RETAINER Was 6512531 - A

7

6632902

BOLT

8

6648181

SPROCKET

9

RETAINER NLA - Was 6512429 - A

10

BOLT NLA - Was 6649585 - A

11

6512436

CHAIN

12

6512438

TENSIONER

13

6649586

BOLT

14

6632902

BOLT

15

6649598

WASHER

16

6648182

ARM tensioner

17

6661790

PIN Was 6512440 - A

18

6654289

TAPPET Std.

19

6654290

PUSH ROD

20

6654291

ARM Rocker - R.H. - W/Ref. 21

20

6654292

ARM Rocker - L.H. - W/Ref. 21

21

6512605

SCREW

22

BRACKET NLA - support - Was 6648187 - A

23

6649588

WASHER

24

6654293

BOLT

25

SPRING NLA - Was 6512478 - A

26

6648188

SHAFT

27

PLUG NSS - 11 mm - W/Ref. 26 - Was 6648189 - A

28

WASHER NLA - spring - Was 6648190 - A

29

6649590

WASHER

30

COTTER PIN NLA - 2.3 mm - Was 6649591 - A

Выбрано товаров: 33
