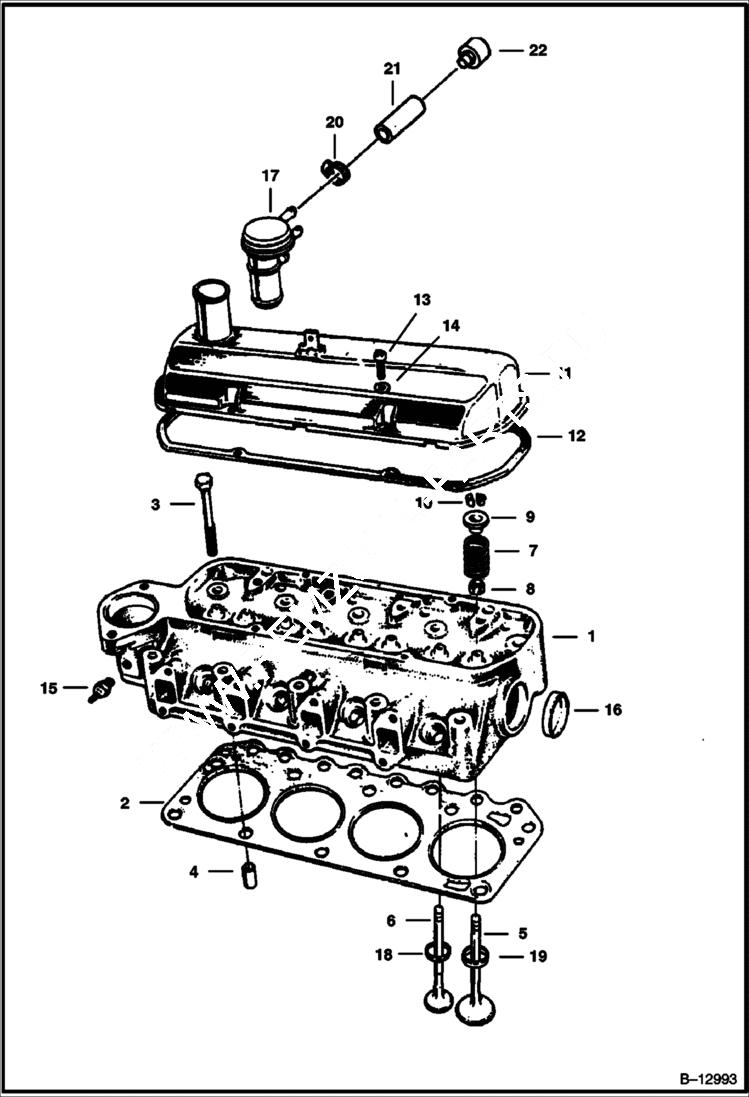

Запчасти Bobcat 500s CYLINDER HEAD (S/N 12001 & Above) POWER UNIT

1

6654264

HEAD

2

6654265

GASKET

3

6654267

BOLT

4

6648161

DOWEL

5

6654268

VALVE intake (Std.)

5

VALVE NLA - Intake (.40 mm Oversize) - Was 6654269 - A

6

VALVE NLA - exhaust (Std.) - Order 6672464 Valve & Ref. 18 - Was 6654273 - A

6

6672464

VALVE exhaust (Std.)

6

VALVE NLA - exhaust (.40 Oversize) - Was 6654272 - A

7

6654274

SEAL valve

8

6654275

SEAL valve stem

9

6654276

RETAINER

10

6654277

KEEPER

11

6578330

COVER Was 6654278 - D

12

6646505

GASKET

13

6654279

SCREW

14

1EM60

WASHER Was 6646507 - B

15

6632633

SWITCH hyd temp

16

6648191

PLUG

17

6646508

CAP oil fill

18

6654281

SEAT valve exhaust

19

SEAT NLA - valve intake - Was 6654282 - A

20

44H16

CLAMP Was 6666865 - A

21

6578604

HOSE

22

BREATHER NLA - Was 6599445 - A
