Запчасти Bobcat 500s CARBURETOR (S/N 11999 & Below) POWER UNIT

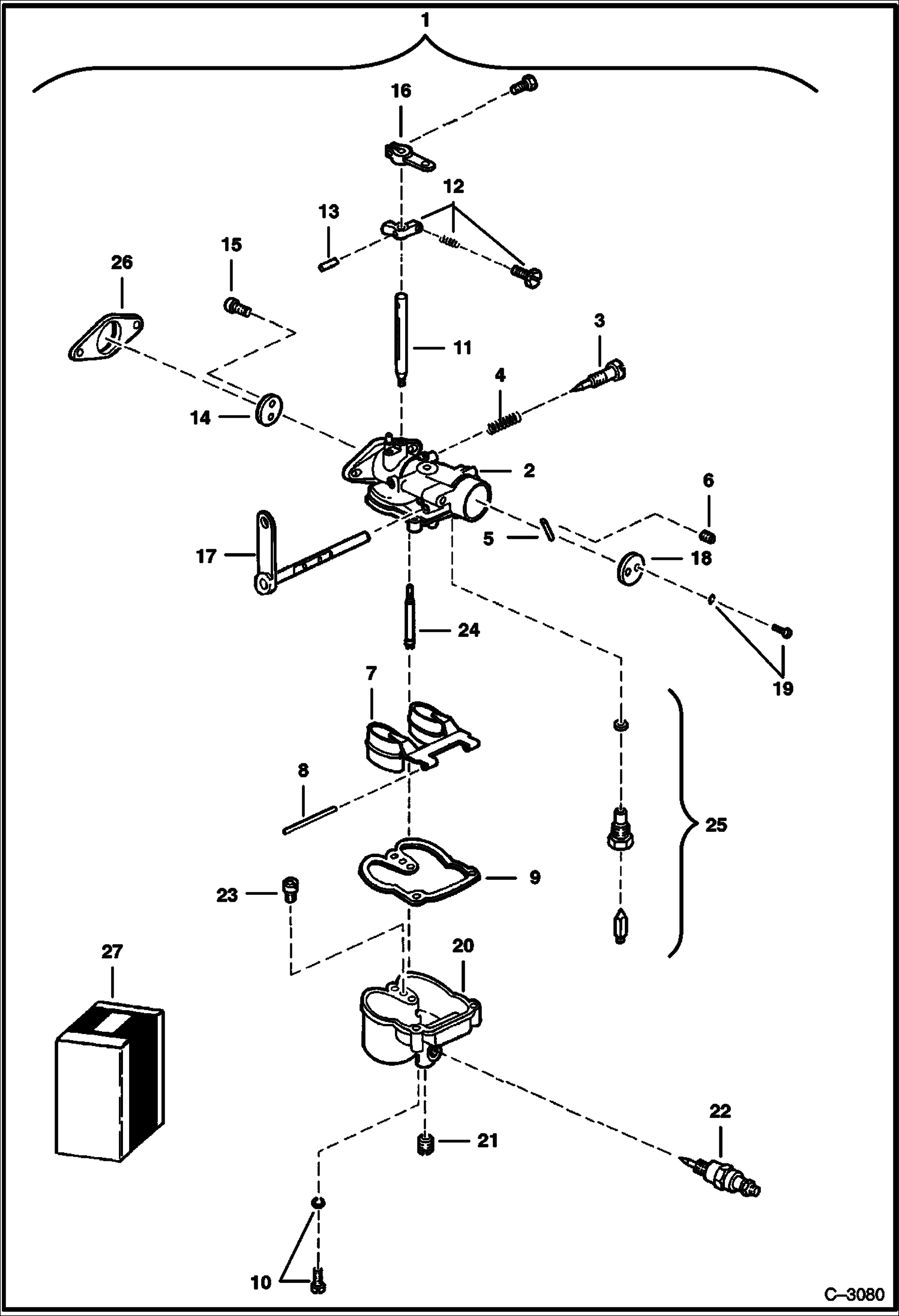

Схема запчастей Bobcat 500s - CARBURETOR (S/N 11999 & Below) POWER UNIT

Артикул

Название

Примечание

Количество

1

6649548

CARBURETOR

2

THROTTLE BODY NLA - Order Ref. 1 - Was 6649872 - A

3

6516748

NEEDLE adj.

4

6516749

SPRING

5

6649873

VENT TUBE

6

6649874

SET SCREW

7

6599349

FLOAT

8

6649875

AXLE FLOAT

9

GASKET NSS - Was 6516741 - A

10

6649876

SCREW includes washer

11

6649877

SHAFT throttle

12

6649878

LEVER

13

6649879

PIN

14

6649880

PLATE throttle

15

SCREW NLA - Was 6516750 - A

16

6649881

LEVER

17

6649882

SHAFT choke

18

6649883

PLATE choke

19

6649884

SCREW includes washer

20

6649885

FUEL BOWL

21

16F2

PLUG

22

6649886

SOLENOID

23

6649887

MAIN JET

24

6649888

DISCHARGE JET

25

6649889

NEEDLE & SEAT

26

6649890

GASKET

27

6513448

KIT Was 6649895 - A

27

6649891

REPAIR KIT Ref 3, 8, 9, 25 & 26

Выбрано товаров: 28
