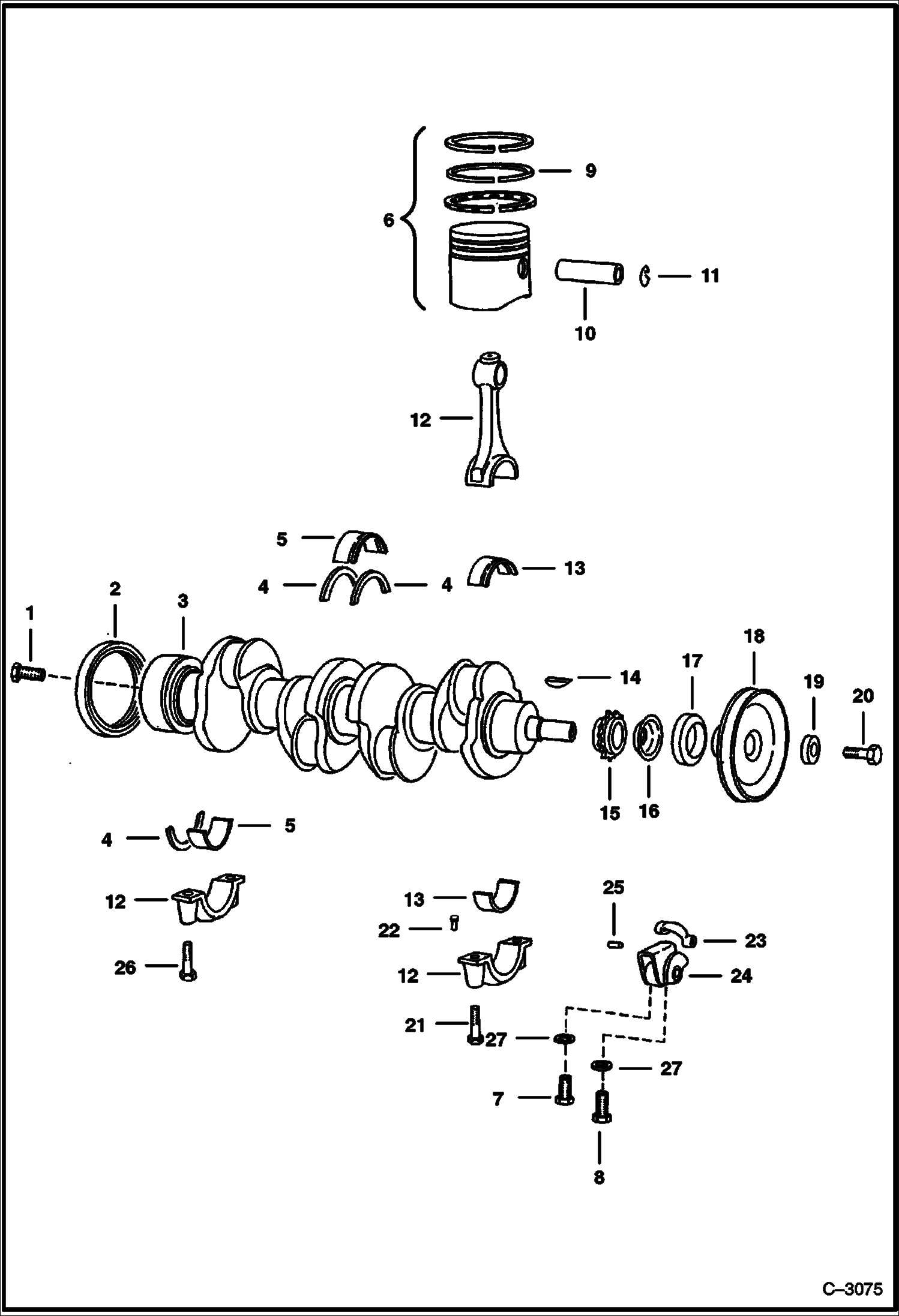

Запчасти Bobcat 500s CRANKSHAFT & PISTONS (S/N 11999 & Below) POWER UNIT

1

6646511

BOLT

2

6654252

SEAL Rear - Was 6648213 - A

3

CRANKSHAFT NLA - Was 6648197 - A

4

6654304

WASHER thrust (Std. - .091''-.093'' ) 1/2 of Washer - Was 6648207 - A

4

WASHER NLA - thrust (.015 O/S) 1/2 of Washer - Was 6648208 - A

5

6648198

BEARING main (Std.) 1/2 Bearing

5

6648200

BEARING main (-.010) 1/2 Bearing

5

6648201

BEARING main (-.020) 1/2 Bearing

5

BEARING NLA - main (-.030) 1/2 Bearing - Was 6648202 - A

5

BEARING NLA - main (+.015 OD, Std. ID) 1/2 of Bearing - Was 6648203 - A

5

BEARING NLA - main (+.015 OD, -.010 ID) 1/2 of Bearing - Was 6648204 - A

5

BEARING NLA - main (+.015 OD, -.020 ID) 1/2 of Bearing - Was 6648205 - A

5

BEARING NLA - main (+.015 OD, -.030 ID) 1/2 of Bearing - Was 6648206 - A

6

PISTON ASSY. NLA - W/Pins & Rings - Std. - Was 6648214 - A

6

PISTON ASSY. NLA - W/Pins & Rings +.020 - Was 6648215 - A

6

6648216

PISTON ASSY. W/Pins & Rings +.040

7

6632902

BOLT

8

1CM650

SCREW

9

6648217

RINGS Std. - For One Piston

9

RINGS NLA - +.020 - For One Piston - Was 6648218 - A

9

6648219

RINGS +.040 - For One Piston

10

PIN NSS

11

RETAINER NSS

12

ROD NLA - connecting - Was 6648220 - A

13

6648221

BEARING Rod (Std.) - 1/2 Bearing

13

6648223

BEARING Rod (-.010) - 1/2 Bearing

13

6648224

BEARING Rod (.020) - 1/2 Bearing

13

6648225

BEARING Rod (-.030) - 1/2 Bearing

13

BEARING NLA - Rod (.040) - 1/2 Bearing - Was 6648226 - A

14

6512641

KEY

15

SPROCKET NLA - Was 6512442 - A

16

6648210

SLINGER oil

17

6648169

SEAL Was 6648209 - A

18

6649592

PULLEY

19

WASHER NLA - Was 6649594 - A

20

BOLT NLA - Was 6649593 - A

21

6649595

BOLT Rod

22

6648227

DOWEL

23

6648182

ARM

24

6512438

TENSIONER timing chain

25

6512440

PIN

26

BOLT NLA - main - 1 is package of 4 - Was 6649578 - A

27

6649598

WASHER Was 6649587 - A
