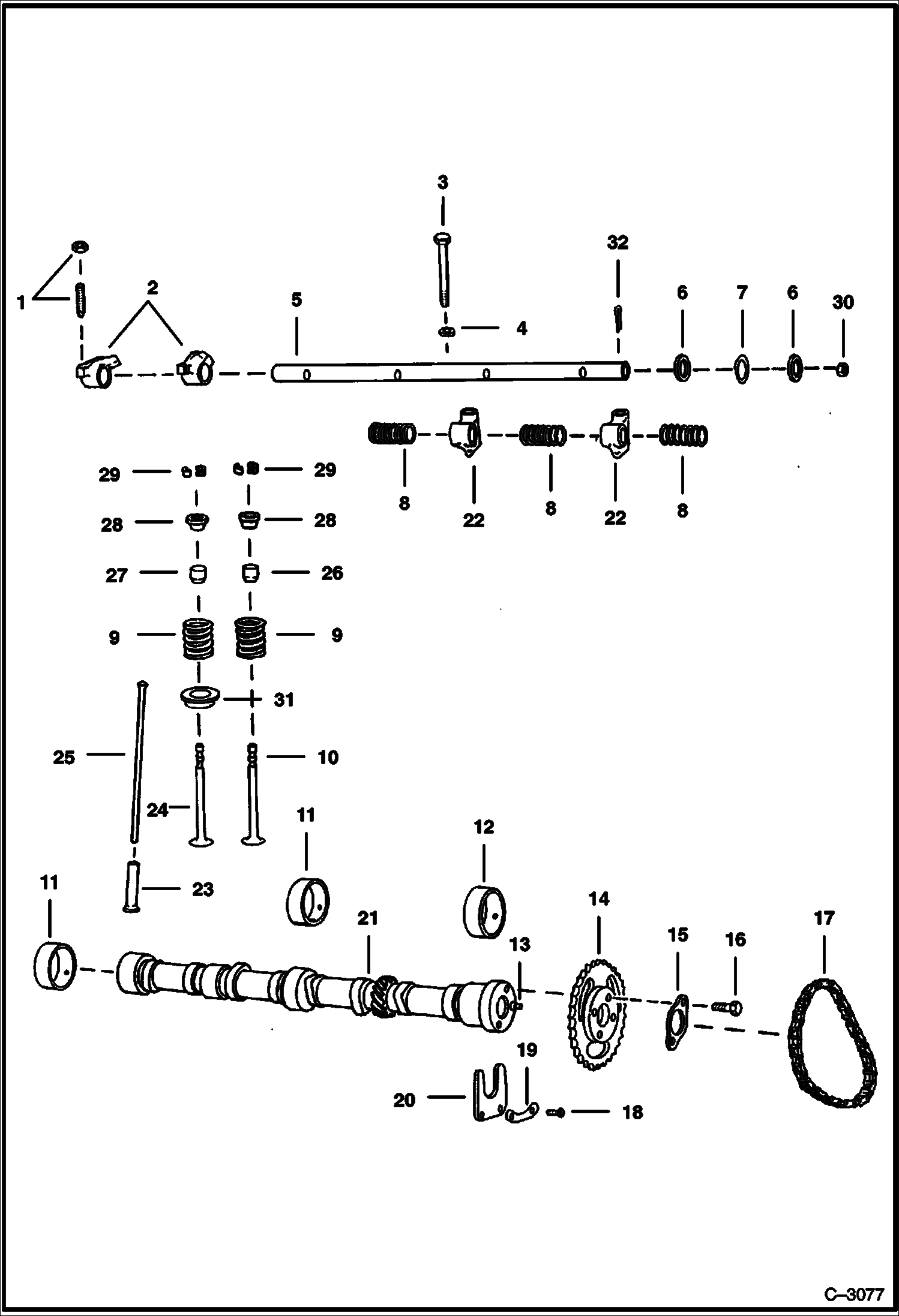

Запчасти Bobcat 500s VALVE TRAIN (S/N 11999 & Below) POWER UNIT

1

6512605

SCREW Rocker arm adjusting

2

6648185

ARM NLA - Rocker - RH - W/Ref. 1 - Was 6648185

2

ARM NLA - Rocker - LH - W/Ref. 1 - Was 6648186 - A

3

BOLT NLA - Was 6649589 - A

4

6649588

WASHER

5

6648188

SHAFT W/Ref. 30

6

WASHER NLA - Was 6649590 - A

7

WASHER NLA - Was 6648190 - A

8

SPRING NLA - Was 6512478 - A

9

SPRING NLA - intake valve - Was 6598077 - A

10

6648162

VALVE intake - Std.

10

VALVE NLA - intake - .015 oversize - Was 6648163 - A

11

BEARING NLA - Order 6696958 - camshaft - Center & Rear - Std. I.D. & O.D. - Was 6512431 - A

11

BEARING NLA - Center & Rear - Std. ID .020 OD - Was 6512434 - A

12

6512430

BEARING camshaft - Front - Std. IS & OD

12

6512433

BEARING camshaft - Front Std. ID-.020 OD

13

DOWEL NLA - Was 6512530 - A

14

6648181

SPROCKET camshaft

15

RETAINER NLA - Was 6512429 - A

16

BOLT NLA - Was 6649585 - A

17

6512436

CHAIN timing

18

6632902

BOLT

19

6672534

RETAINER Was 6512531 - A

20

6512437

PLATE

21

CAMSHAFT NLA - Was 6648180 - A

22

BRACKET NLA - support - Was 6648187 - A

23

6669568

TAPPET Std. - Was 6665230 - A

23

TAPPET .004 Oversize NLA - .004 Oversize - Was 6648183 - A

24

6649580

VALVE exhaust

25

PUSH ROD NLA - Was 6648184 - A

26

6512474

SEAL intake

27

6648166

SEAL exhaust

28

RETAINER NLA - Was 6512467 - A

29

1 LOCK NLA - stellite - Was 6690165 - A

30

PLUG NSS - W/Ref. 5 - Was 6648189 - A

31

6649632

GUIDE valve exhaust

32

COTTER PIN NLA - Was 6649591 - A
