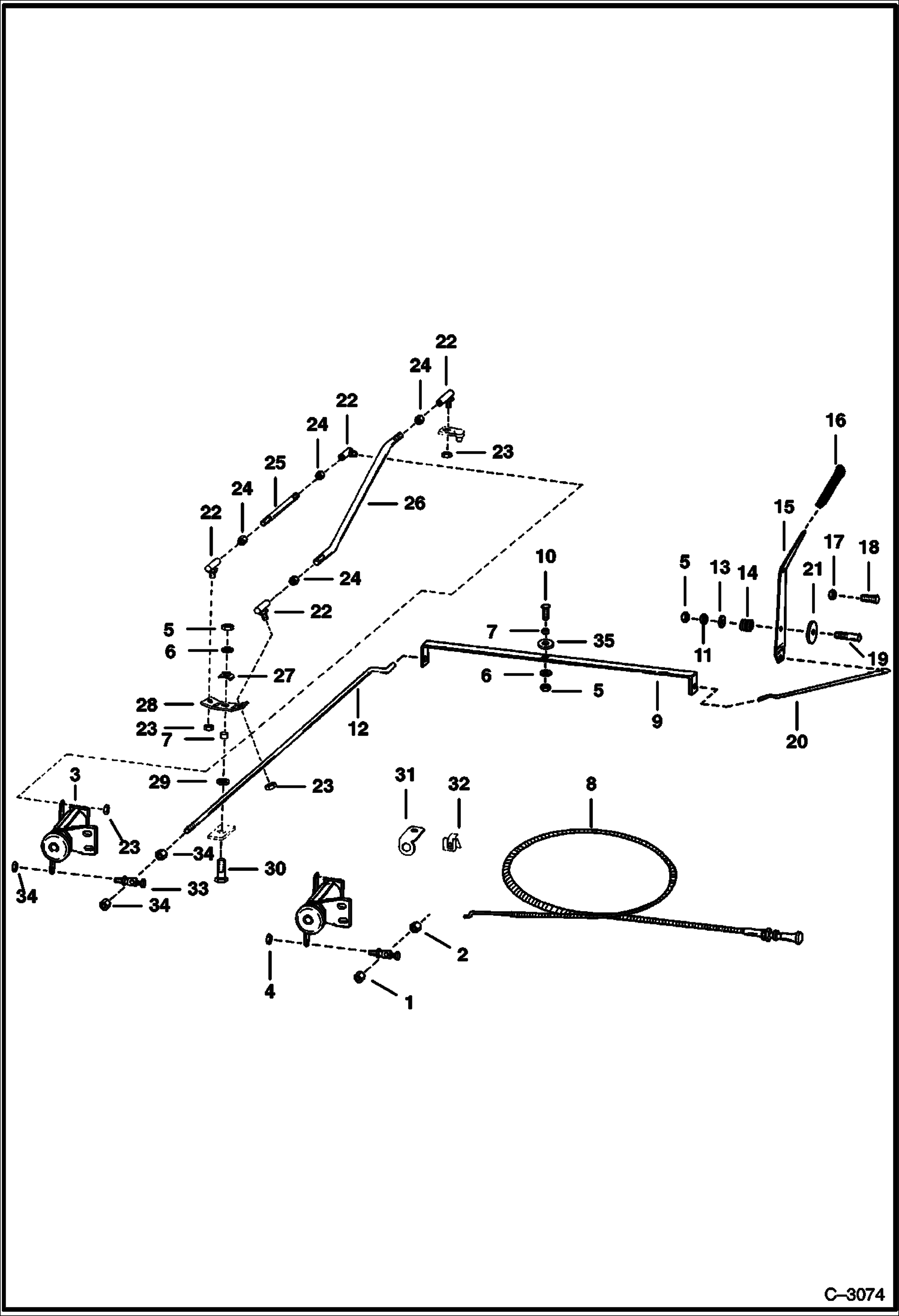

Запчасти Bobcat 500s THROTTLE & CHOKE (S/N 11999 & Below) POWER UNIT

1

6554858

BALL JOINT R.H. fine thread

2

62D4

NUT

3

6649547

GOVERNOR See Illustration GOVERNOR/ B12298

4

86D4

NUT

5

85D6

NUT, 5

6

872229

WASHER

7

6544654

BUSHING

8

6564914

CABLE choke

9

6563864

LEVER

10

6557432

BOLT

11

7D6

NUT

12

6578546

ROD 20.62''(523,8 mm) long - fine threads

12

6579124

ROD 22.62''(574,5 mm) long - course threads

13

27E6

WASHER 5

14

6562126

SPRING

15

6563940

LEVER

16

6553557

GRIP

17

57D6

NUT 5

18

37C616

BOLT Was 6514537 - B

19

7C640

BOLT

20

6563863

ROD

21

6562127

WASHER

22

6515194

BALL JOINT

23

51D10

NUT

24

14D10

NUT

25

6578544

ROD

26

6578545

ROD

27

6512913

WASHER

28

6578547

LEVER

29

6700170

WASHER Was 6563152 - A

30

17C620

BOLT

31

6578558

BRACKET

32

6514780

CLAMP

33

6557291

BALL JOINT course threads

34

61D4

NUT 5

35

6579756

WASHER
