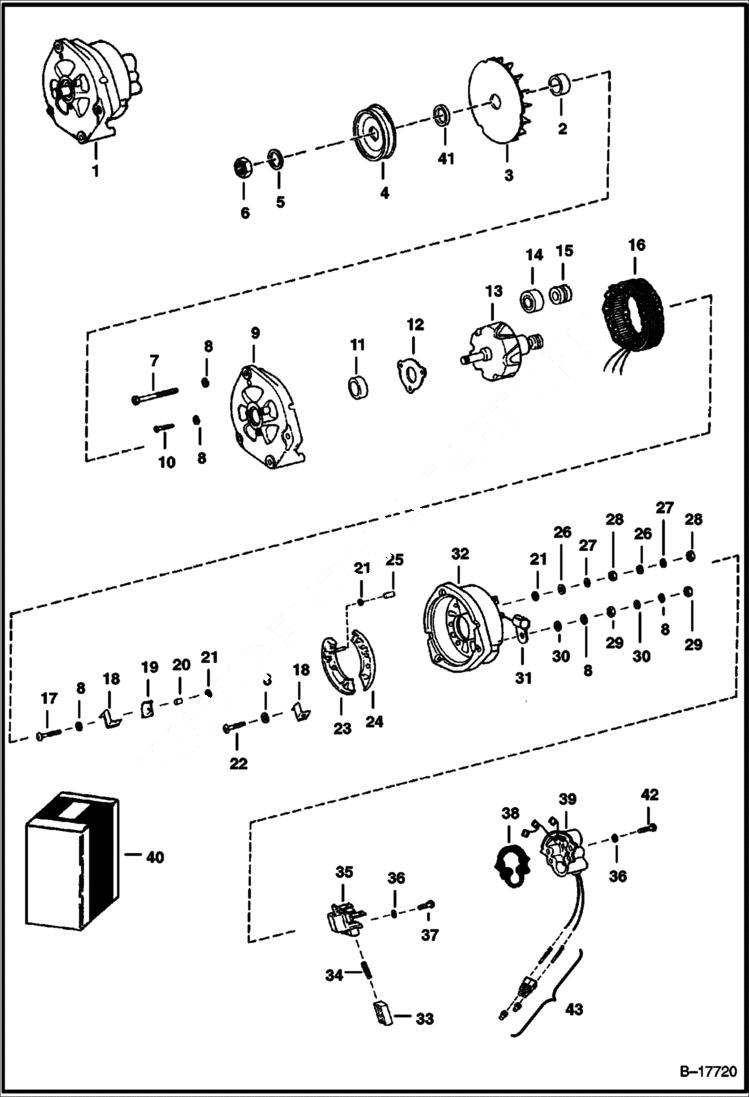

Запчасти Bobcat 500s ALTERNATOR (Bobcat) ELECTRICAL SYSTEM

1

ALTERNATOR NLA - Ref. 5-41 - Order 6661611 Alternator, 6659373 Pulley & 6659375 Fan - Was 6632211 - A

2

SPACER NLA - Was 6632210 - A

3

FAN NLA - Order 6661611 Alternator & 6659375 Fan - Was 6632209 - A

4

PULLEY NLA - Was 6646599 - D

5

WASHER NLA - Was 6632208 - A

6

NUT NLA - Was 6632207 - A

7

6632222

BOLT

8

WASHER NSS

9

BRACKET NLA - W/Ref. 8 & 10-12 - Was 6632224 - A

10

SCREW NSS

11

BEARING NSS

12

RETAINER NSS

13

6632229

ROTOR W/Ref. 14 & 15

14

BEARING NSS

15

SLIP RING NSS

16

STATOR NLA - Was 6632230 - A

17

BOLT NSS

18

CLAMP NSS

19

MOLD-U NSS

20

BUSHING NSS - insulation

21

WASHER NSS - insulation

22

SCREW NSS

23

HEATSINK NSS

24

HEATSINK NSS

25

BUSHING NSS - insulation

26

WASHER NSS

27

WASHER NSS

28

NUT NSS

29

NUT NSS

30

WASHER NSS

31

6632242

CONDENSER

32

BRACKET NSS - W/Ref. 8 & 17-31 - Was 6632231 - A

33

BRUSH NSS

34

SPRING NSS

35

BRUSH HOLDER NSS - W/Ref. 33 & 34 - Was 6632248 - A

36

WASHER NSS

37

SCREW NSS

38

6632253

GASKET

39

KIT NSS - Regulator - W/Ref. 36 & 38-42 - Was 6632384 - A

40

KIT NLA - bearing - W/Ref. 11, 14 & 15 - Was 6632381 - A

40

KIT NLA - external hardware - W/ Ref. 8, 21, 26-30, 36, 37 & 42 - Was 6632382 - A

40

6632383

KIT internal hardware - W/Ref. 8, 17-22 & 25

40

KIT NSS - brush holder - W/Ref. 33-37 - See Ref. 1- Was 6632385 - A

41

6632323

WASHER

42

SCREW NSS

43

6577456

KIT weather-pak connector - Includes both male & female parts
