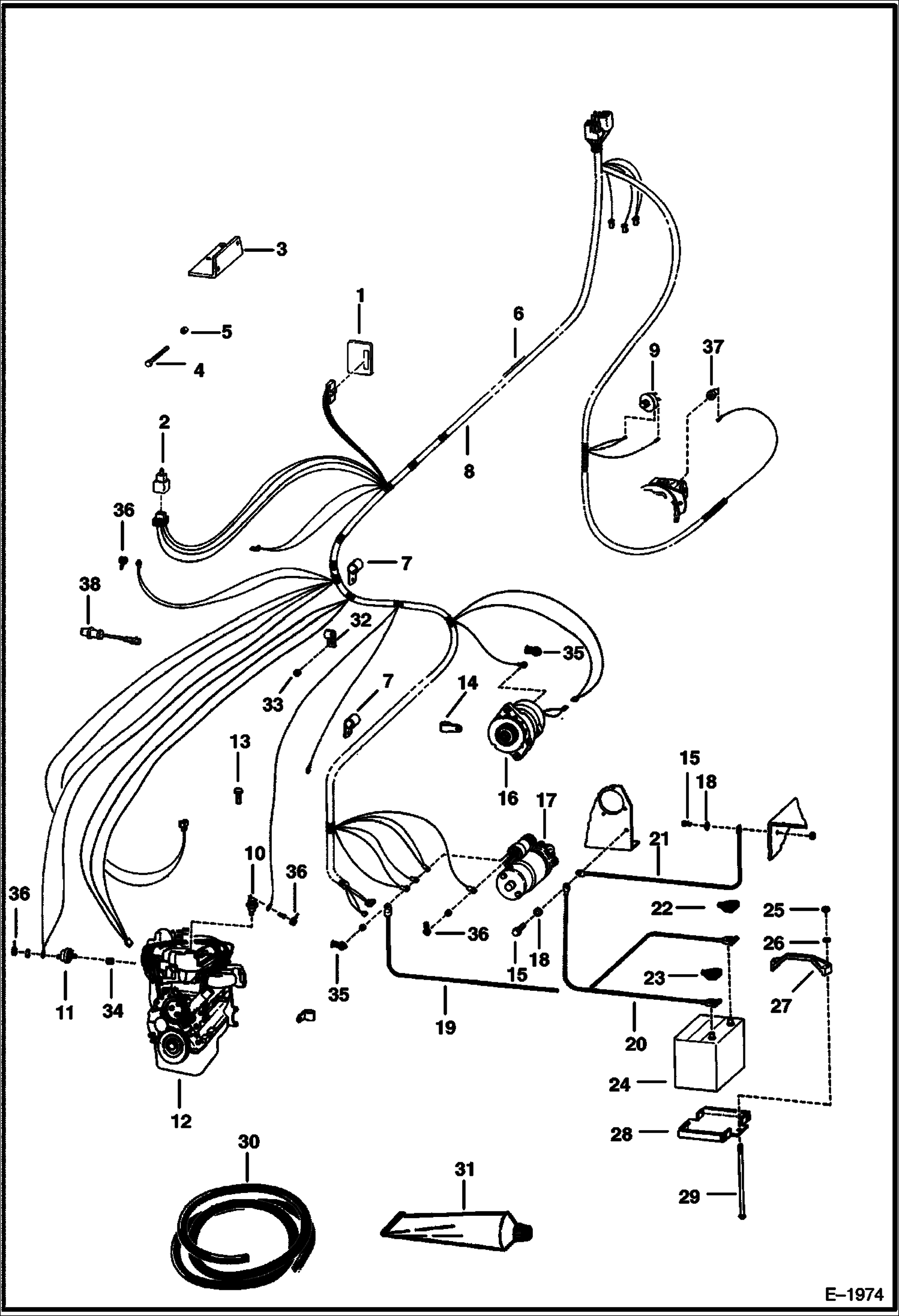

Запчасти Bobcat 500s ENGINE ELECTRICAL (S/N 12001 & Above) ELECTRICAL SYSTEM

1

MODULE See Illustration IGNITION SYSTEM/ B12986 - Ignition

2

6651975

SWITCH relay

3

6700398

BRACKET

4

35C412

BOLT Was 45G001012B - B

5

85D4

NUT 5 Was 50D000010B - B

6

3675725

DIODE

7

30H45

CLIP

8

6700405

HARNESS engine - Was 6578375 - D

9

6671062

SWITCH hydrostatic pressure - Was 6664577 - A

10

SENDER See BTI259 NLA - engine temp. - Use W/Gauge - Was 6599492 - A

10

6658818

SENDER See BTI259 eng temp - threaded connector

11

6631010

SWITCH, PRESS OIL ENG engine oil pressure

12

6651848

ENGINE See Illustration ENGINE/ B12995 Was 6648843 - B

13

40K8

PLUG Use when gauges are used

14

30H46

CLIP

15

84G3712

BOLT 5

16

ALTERNATOR See Illustration ALTERNATOR/ C3312 See Illustration ALTERNATOR/ B17720

17

STARTER See Illustration STARTER/ B17654 See Illustration STARTER/ B1192

18

6E6

WASHER

19

6578382

CABLE positive

20

6562905

CABLE ground - Was 6553094 - A

21

6563025

CABLE ground

22

2356058

BOOT

23

6599652

BOOT

24

6665228

BATTERY Was 6633910 - A

25

59D5

NUT 5

26

25E15

WASHER

27

6569203

CLAMP

28

6558826

MOUNT battery

29

6569623

BOLT

30

6563505

CONDUIT cable - Bulk

31

6599360

SEALANT, ELEC .3 OZ electrical - tube - 3 oz

32

30H55

CLIP

33

61D4

NUT 5

34

19F1

BUSHING

35

624425

COVER

36

616334

COVER

37

6632633

SWITCH hyd temp - Use W/light

38

6654261

CONTROL Speed
