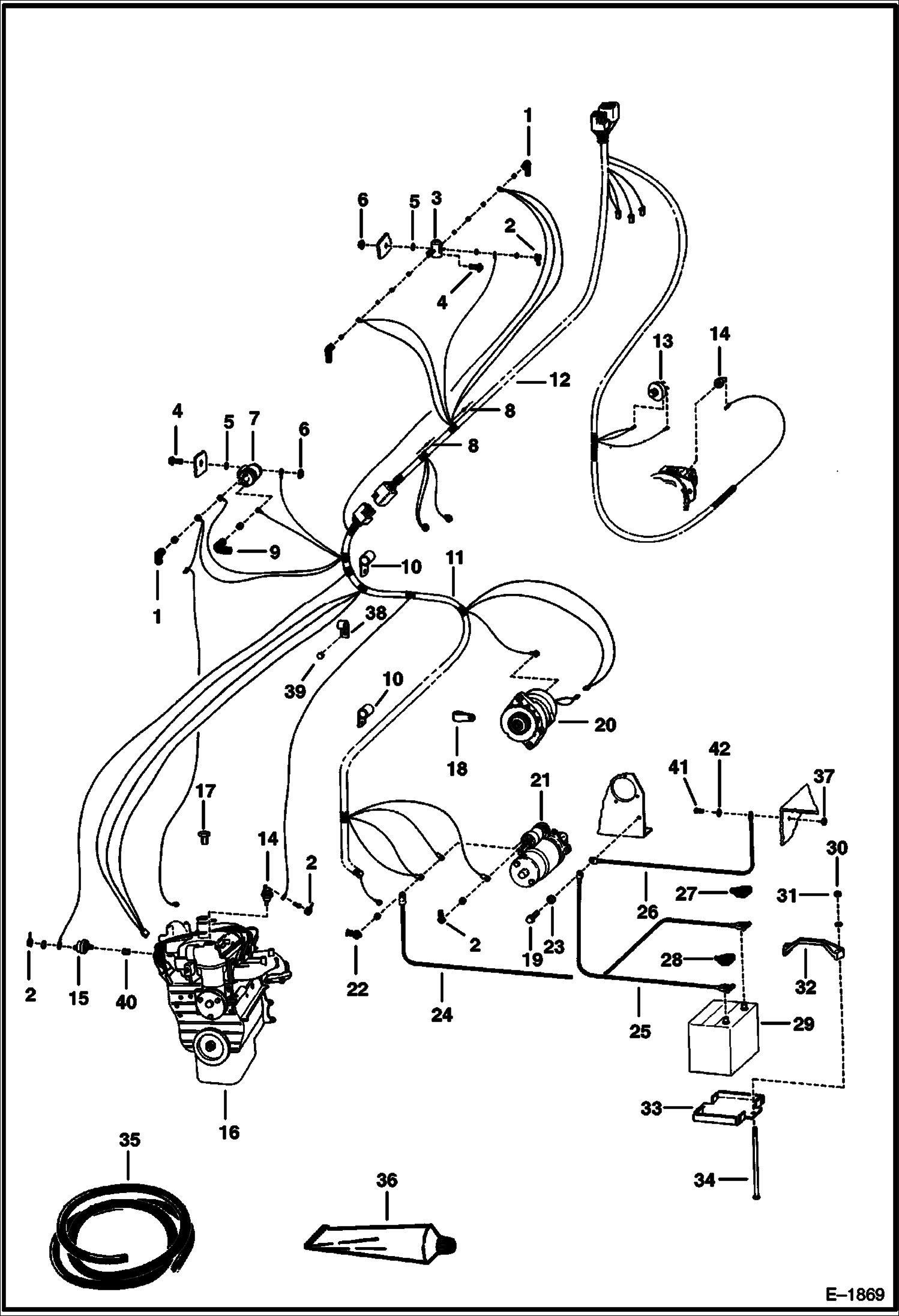

Запчасти Bobcat 500s ENGINE ELECTRICAL (S/N 11999 & Below) ELECTRICAL SYSTEM

1

624425

COVER

2

616334

COVER

3

6659319

SOLENOID relay - Was 6632186 - A

4

35C412

BOLT

5

6E4

WASHER 10

6

57D4

NUT

7

COIL See Illustration DISTRIBUTOR/ B12290

8

3675725

DIODE

9

BOOT NLA - Was 6649303 - A

10

30H45

CLIP

11

6578375

HARNESS engine

12

6564860

HARNESS solenoid

13

6671062

SWITCH hydrostatic pressure - Was 6664577 - A

14

6632633

SWITCH eng & hyd temp - Use W/light

14

SENDER See BTI259 NLA - Engine Temp. - Use W/Gauge - Was 6599492 - A

14

6658818

SENDER See BTI259 eng temp - threaded connector

15

6631010

SWITCH, PRESS OIL ENG engine oil pressure

16

ENGINE See Illustration ENGINE/ B17766

17

40K8

PLUG Use when gauges are used

18

30H46

CLIP

19

84G3712

BOLT 5

20

ALTERNATOR See Illustration ALTERNATOR/ C3312 See Illustration ALTERNATOR/ B17720

21

STARTER See Illustration STARTER/ B17654 See Illustration STARTER/ B1192

22

6560172

COVER

23

6E6

WASHER

24

6578382

CABLE positive

25

6553094

CABLE ground

26

6563025

CABLE ground

27

2356058

BOOT

28

6599652

BOOT

29

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

30

59D5

NUT 5

31

25E15

WASHER

32

6569203

CLAMP

33

6558826

MOUNT battery

34

6569623

BOLT

35

6563505

CONDUIT cable - Bulk

36

6599360

SEALANT, ELEC .3 OZ electrical - tube - 3 oz

37

61D5

NUT

38

30H55

CLIP

39

61D4

NUT 5

40

19F1

BUSHING

41

17C512

BOLT 5

42

6E5

WASHER
