Запчасти Bobcat 500s CAB ELECTRICAL CIRCUITRY (S/N 13171 & Above) ELECTRICAL SYSTEM

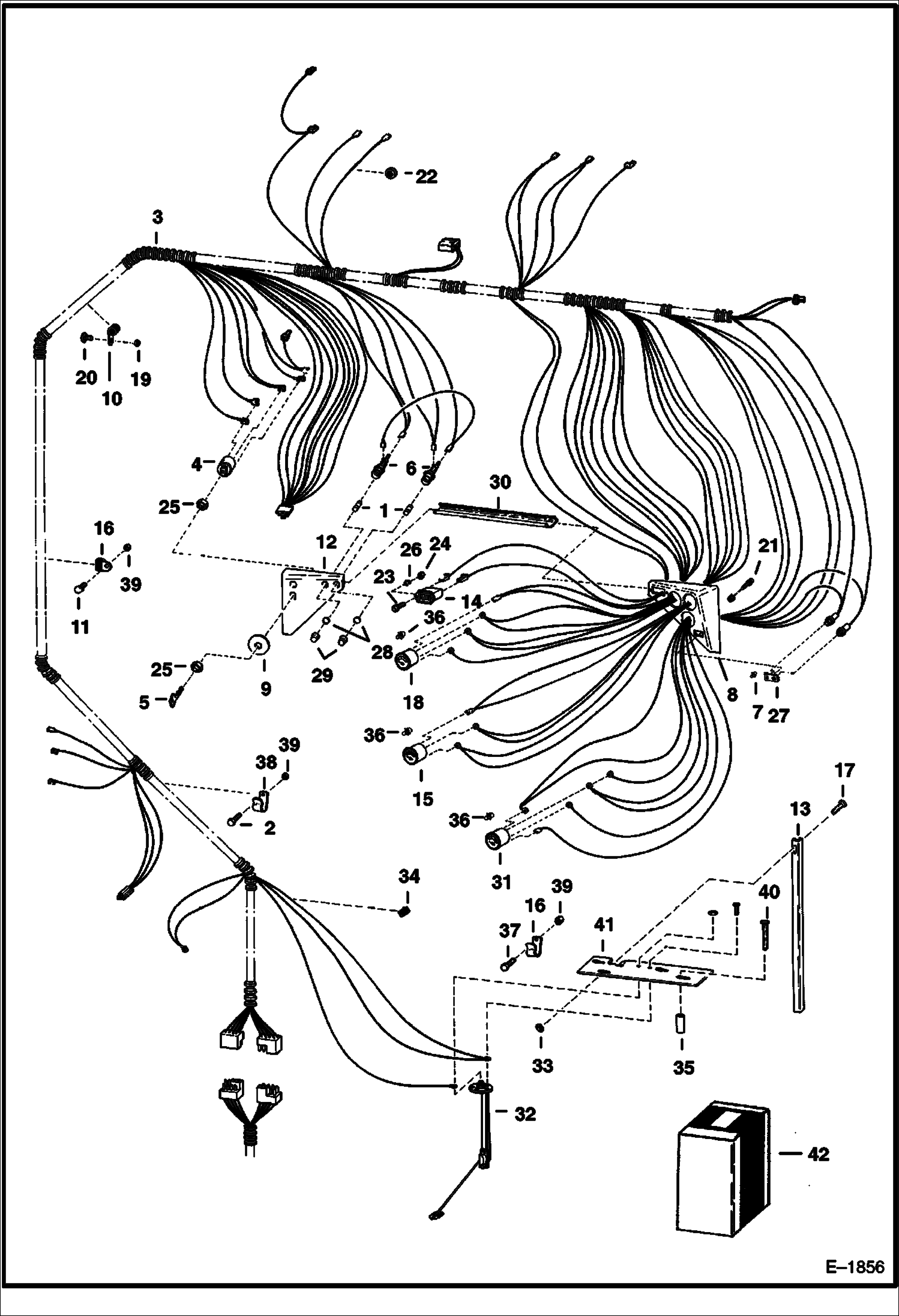

Схема запчастей Bobcat 500s - CAB ELECTRICAL CIRCUITRY (S/N 13171 & Above) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

1319451

FUSE 5

2

84G3712

BOLT 5

3

6572060

HARNESS

4

SWITCH See BTI289 NLA - Ignition - W/Ref. 5 & 25 - Order Ref. 42 - Was 6519592 - A

4

6665606

SWITCH

5

6512809

KEY For Ref. 4 (NLA/6519592 Switch)

5

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

5

6693241

KEY 10 ignition - single key W/O ring

6

6513469

HOLDER fuse

7

6572065

BULB

8

6572053

PANEL RH

9

6563431

PLATE brake start - For Ref. 4 (NLA/6519592 Switch) - Was 6703705 - D

9

6709172

PLATE brake start - For Ref. 4 (6665606 Switch)

10

30H55

CLIP

11

10C512

BOLT Was 6553808 - A

12

6572054

PANEL LH

13

6567897

HOUSING

14

6664886

HOURMETER Was 6631657 - A

15

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

15

6669664

VOLTMETER W/O clamp

16

30H45

CLIP

17

85G1008

SCREW

18

FUEL GUAGE NLA - W/clamp - Order 6669665 gauge & 6679027 clamp - Was 6658820 - A

18

6669665

FUEL GUAGE W/O clamp

19

83D4

NUT 10

20

35C412

BOLT

21

6702642

SCREW

22

6557493

GROMMET

23

65G608

SCREW

24

12D6

NUT 10

25

6598721

NUT For Ref. 4 (NLA/6519592 Switch)

25

6674202

NUT For Ref. 4 (6665606 Switch)

26

12E6

WASHER

27

6572056

LENS

28

6514643

GASKET

29

6514642

CAP

30

6578780

CROSSMEMBER

31

6631649

GAUGE See BTI259 engine temp.

31

GAUGE See BTI259 NLA - eng temp - W/clamp - Order 6669663 gauge & 6679027 clamp - Was 6658817 - A

31

6669663

GAUGE See BTI259 eng temp - W/O clamp

32

SENDER See Illustration FUEL SYSTEM/ E1873 - fuel

33

12D10

NUT

34

6632215

GROMMET

35

6567898

SPACER

36

6599696

SOCKET & BULB assy.

36

895771

#161 BULB

37

17C512

BOLT 5

38

31H38

CLAMP

39

85D5

NUT 5

40

89G544

SCREW

41

6567896

SHIELD

42

6724282

SWITCH KIT Ref. 4, 5 & 9

Выбрано товаров: 52
