Запчасти Bobcat 500s CAB ELECTRICAL (S/N 11116 - 13170) ELECTRICAL SYSTEM

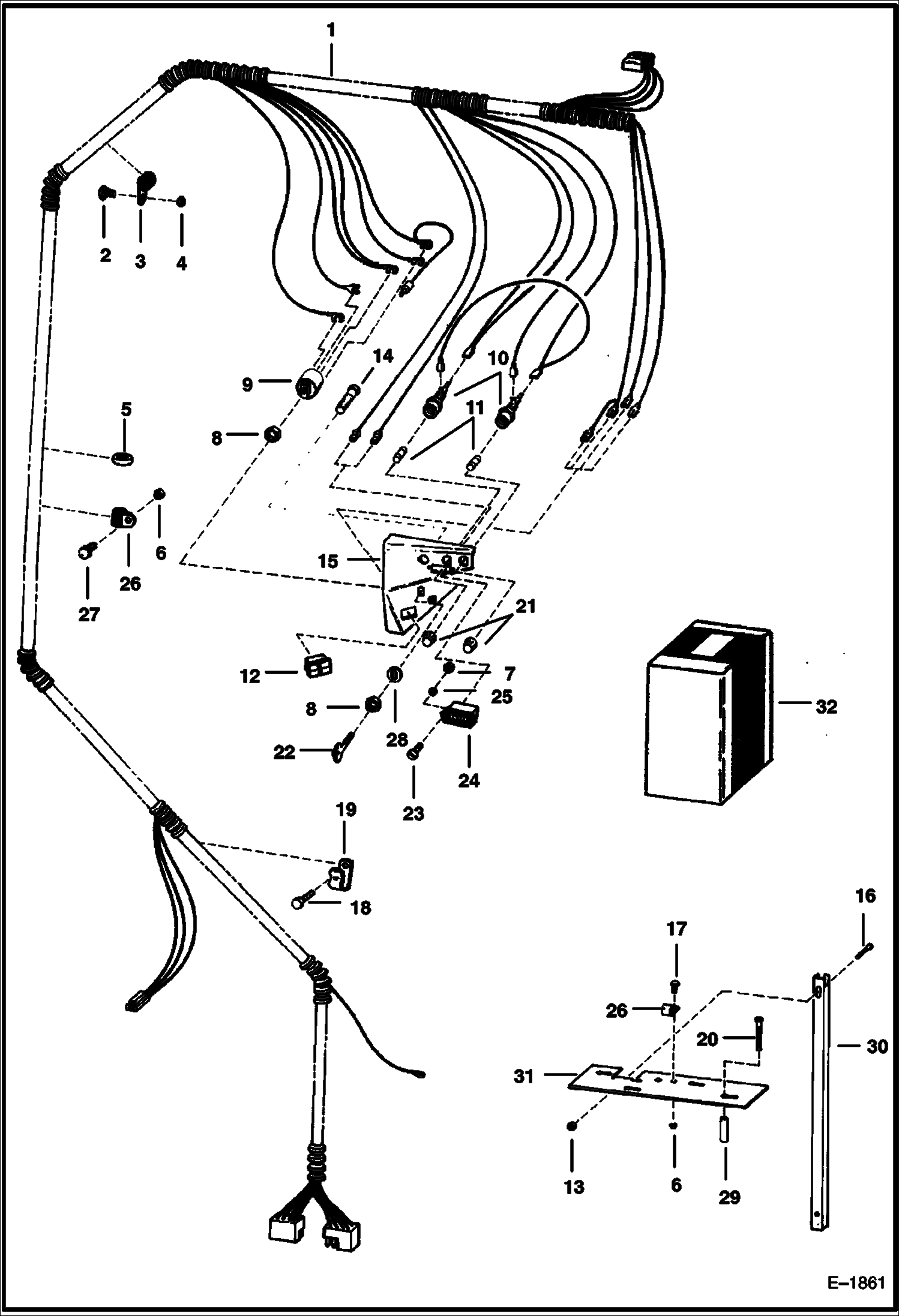

Схема запчастей Bobcat 500s - CAB ELECTRICAL (S/N 11116 - 13170) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6577280

HARNESS

2

25G412

CAPSCRW10

3

30H55

CLIP Was 30H000054B - B

4

83D4

NUT 10

5

6632215

GROMMET

6

85D5

NUT 5

7

12D6

NUT 10

8

6598721

NUT Use W/Ref. 9 (NLA/ 6519592 switch)

8

6674202

NUT Use W/Ref. 9 (6665606 switch)

9

SWITCH See BTI289 NLA - Ignition - W/Ref. 8 & 22 - Order Ref. 32 - Was 6519592 - A

9

6665606

SWITCH

10

6513469

HOLDER fuse - W/Ref. 21

11

1319451

FUSE 5

12

6636018

LIGHT indicator

13

12D10

NUT

14

6702642

SCREW Was 84G003112B - B

15

6572100

PANEL

16

85G1008

SCREW

17

17C512

BOLT 5

18

84G3712

BOLT 5

19

31H38

CLAMP

20

89G544

SCREW

21

6514642

CAP

22

6512809

KEY For Ref. 9 (NLA/6519592 Switch)

22

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241- Was 6709527 - A

22

6693241

KEY 10 ignition - single key W/O ring

23

85G608

SCREW

24

6664886

HOURMETER Was 6631657 - A

25

12E6

WASHER

26

30H41

CLIP

27

10C512

BOLT Was 6553808 - A

28

6563431

PLATE For Ref. 9 (NLA/6519592 Switch)

28

6709172

PLATE For Ref. 9 (6665606 Switch)

29

6567898

SPACER stand off

30

6567897

HOUSING

31

6567896

SHIELD

32

6724282

SWITCH KIT Ref. 9, 22 & 28

Выбрано товаров: 37
