Запчасти Bobcat 500s HAND CONTROLS HYDROSTATIC SYSTEM

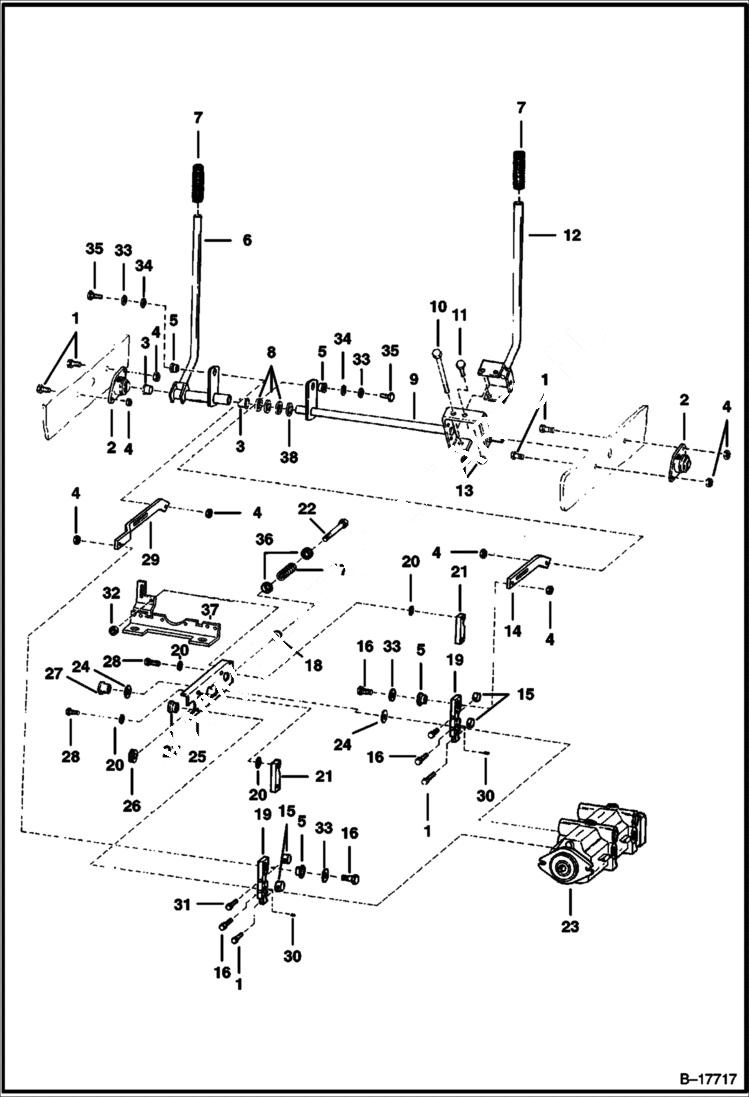

Схема запчастей Bobcat 500s - HAND CONTROLS HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

17C612

BOLT 5

2

6558736

FLANGE

3

6512027

BUSHING

4

85D6

NUT, 5

5

6665701

BUSHING, PRESS FIT Was 6630081 - A

6

6564103

LEVER steering - L.H.

7

6513963

GRIP

8

25E29

WSHR

9

6564710

SHAFT Was 6564104 - D

10

6553081

BOLT

11

17C620

BOLT

12

6558615

HANDLE steering - R.H.

13

61D6

NUT 5

14

6706534

BAR slot for 6703978 back-up alarm kit - Was 6563919 - A

15

6562062

CAM

16

17C628

BOLT

17

6572026

SPRING .75'' I.D.

18

6579990

WASHER Was 6558429 - A

19

LEVER NLA - Order 6733231 Lever, 6685060 Bushing & 619021 Washer - Was 6565753 - A

19

6733231

LEVER

20

6557831

WASHER

21

6563649

BAR

22

17C668

BOLT Was 17C000664B - B

23

PUMP See Illustration HYDROSTATIC PUMP/ D1607 - hydrostatic

24

6558680

WASHER

25

6563646

BRACKET

26

6558436

GUIDE

27

6565824

PIN

28

8C616

SCREW

29

6706535

BAR slot for 6703978 back-up alarm kit - Was 6563918 - A

30

6630170

KEY

31

17C624

BOLT 5

32

83D6

NUT 5

33

6563914

WASHER

34

6563965

WASHER

35

17C626

BOLT

36

6571991

GUIDE

37

6706536

MOUNT slot for 6703978 back-up alarm kit - Was 6576754 - A

38

6705033

WASHER 0.067

Выбрано товаров: 39
