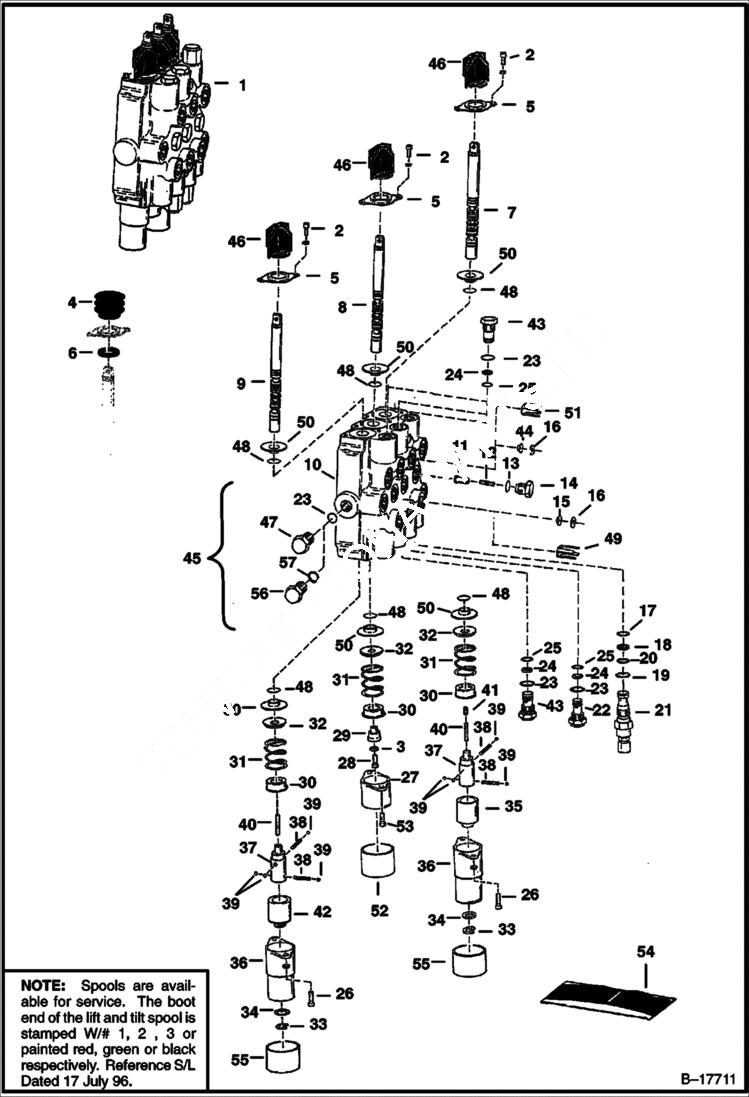

Запчасти Bobcat 500s HYDRAULIC CONTROL VALVE HYDRAULIC SYSTEM

1

VALVE NLA - Ref. 2-51 - Was 6586286 - A

2

6588165

SCREW Was 73G000410B - B

3

22E4

WASHER

4

BOOT NLA - Order Ref. 46 - Was 6592122 - A

5

6592123

RETAINER

6

FILTER NLA - sintered - Order Ref. 46

7

6666582

SPOOL lift - #1 or Red - SEE NOTE

7

6666583

SPOOL lift - #2 or Green - SEE NOTE

7

6666584

SPOOL lift - #3 or Black - SEE NOTE

8

6666585

SPOOL tilt - #1 or Red - SEE NOTE

8

6666586

SPOOL tilt - #2 or Green - SEE NOTE

8

6666587

SPOOL tilt - #3 or Black - SEE NOTE

9

6592119

SPOOL auxiliary - SEE NOTE

10

BODY NSS

11

6592115

SEAT

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT

15

ORIFICE NLA - .123/.130 - Was 6592110 - A

16

6593680

RETAINER

17

O-RING NSS

18

WASHER NSS

19

O-RING NSS

20

WASHER NSS

21

VALVE NLA - Main Relief - W/Ref. 17-20 - Was 6632172 - A

21

6676195

VALVE Main Relief - W/Ref. 17-20

22

6667549

VALVE anti-cavity check - W/Ref. 23-25 - Was 6661345 - A

23

79K10

O RING 10

24

80K14

BACK-UP WASHER Was 73K000014B - B

25

58K014

O-RING 10 back-up washer required - Was 25K20016 - B

25

6677106

O-RING back-up washer not required

26

6588163

SCREW .875'' - Was 69G000412B - B

26

29G416

BOLT 1''

27

BONNET NLA - W/.25'' flange thickness - Order 6587633 Bonnet, 6662848 Cap & (2) of 6588164 Screws - Was 6592097 - A

27

7101345

BONNET, DETENT HYD VALVE W/ .50 in. Flange Thickness - Was 6587633 - A

28

6588166

SCREW Was 74G000416B - B

29

6592109

ADAPTER

30

6592100

COLLAR

31

6587580

SPRING Was 6592106 - A

32

7211397

WASHER, SPRING Was 6587523 - A

33

799119

RING

34

6592098

WASHER

35

6592096

SLEEVE lift

36

BONNET NLA - W/.25'' flange - Order 6589226 Bonnet, 6660644 Cap & (2) of 29G000416B Screw

36

6589226

COVER, END 0.63'' flange

37

6587575

ADAPTER Was 6592099 - A

38

6592107

SPRING

39

6592105

BALL

40

6586918

SCREW Was 6632374 - A

41

PLUG NLA - plastic - Order 6596807 Plug, & 54K020002B O-Ring - Was 6592752 - A

41

6596807

PLUG plastic - 0.46'' long

41

54K20002

O'RING 10

42

6593349

SLEEVE auxiliary

43

6592720

PLUG W/Ref. 23-25

44

RESTRICTOR .107/.114 NLA - .107/.114 - Was 6592762 - A

45

SHORT BLOCK NLA - Order Ref. 1

46

6587763

BOOT See Note - Was 6583727 - A

47

47K7

PLUG .875-14 - W/Ref. 23

48

6665089

SEAL See BTI374 lip seal - Was 6659554 - A

48

6646372

SEAL See BTI374 quad ring seal

49

6587304

ORIFICE 0.125

50

6592103

BUSHING See S/L dated 5 Jan. 87

50

6538466

BUSHING W/part number stamped on face

51

6587315

ORIFICE 0.11

52

6662848

CAP Use W/6587633 Bonnet

53

69G414

BOLT Was 6588164 - A

54

6816251

KIT, SEAL See BTI374 - Ref. 13, 17-20, 23-26, 41, 46 & 48 - Was 6816717 - A

54

6816250

KIT, SEAL Ref. 26, 46 & 48 - For One Spool - Was 6803605 - A

54

6661328

SEAL KIT Ref. 17-20 - Was 6592474 - A

54

6809425

SEAL KIT Ref. 13 & 23-25 - Was 6586461 - A

55

6660644

CAP

56

47K9

PLUG 1.187-12 - W/Ref. 57

57

79K14

O RING 10
