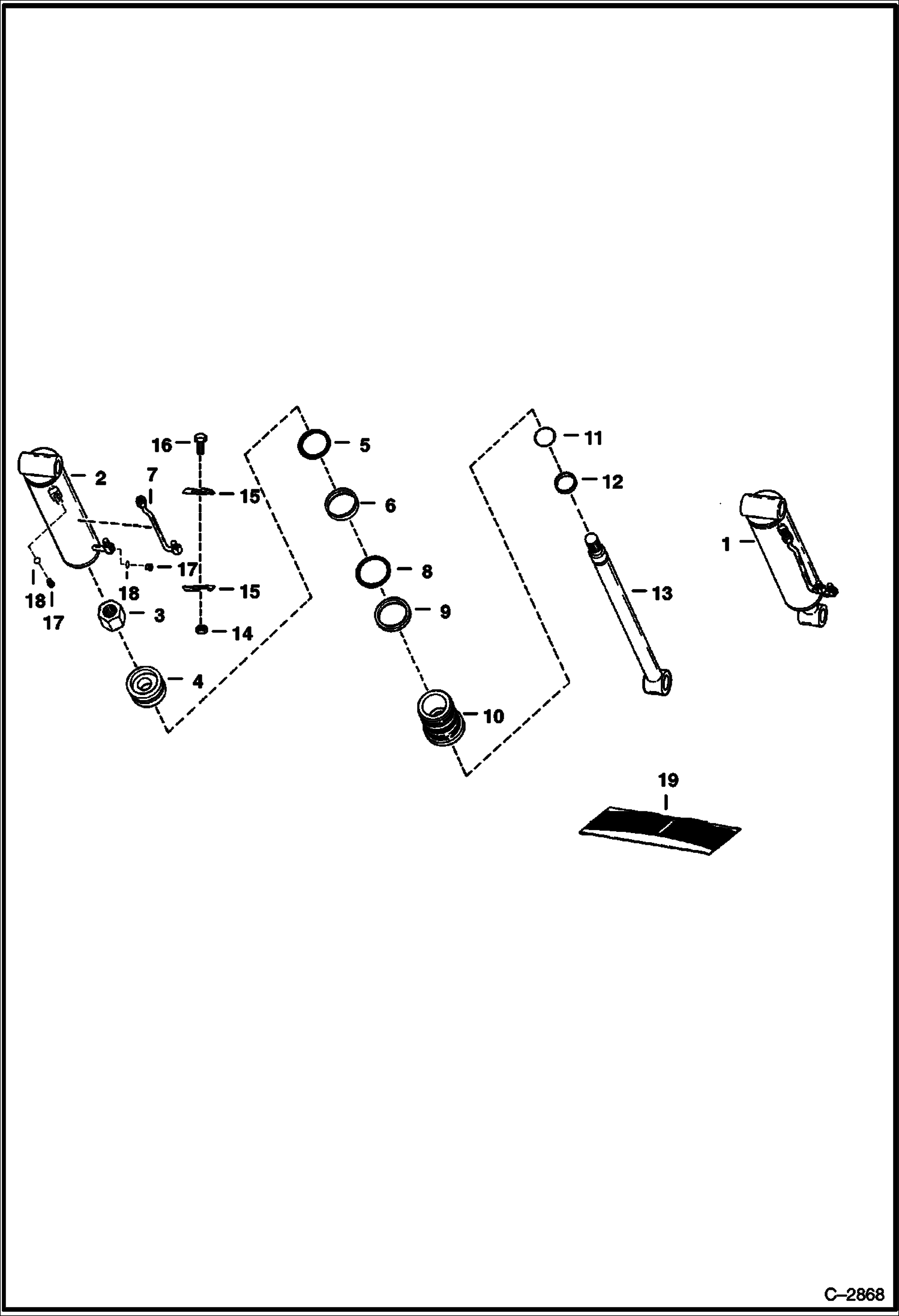

Запчасти Bobcat 500s TILT CYLINDER (W/Replaceable Tube) HYDRAULIC SYSTEM

1

CYLINDER NLA - tilt - Ref. 2-18 - Order 6589331 Cylinder - Was 6592974 - A

2

CASE NLA - Order 6589331 Cylinder - Was 6592972 - A

3

6810539

NUT Was 6804592 - A

4

6803870

PISTON Was 6553912 - A

5

25K30218

O RING 10

6

947088

RING, BACK-UP

7

6593392

TUBE Was 6592973 - B

8

58K232

O RING 10

9

73K232

RING, BACK-UP back-up - Was 80K232 - A

10

6588912

HEAD Was 6531649 - A

11

6538141

SEAL

12

6690707

WIPER, ROD CYL Was 6665086 - A

13

6592897

ROD interia welded

14

85D6

NUT, 5

15

6502426

CLAMP

16

17C620

BOLT

17

47K5

PLUG W/Ref. 18

18

79K6

O RING 10

19

6589798

SEAL KIT Ref. 3, 5, 6, 8, 9, 11 & 12 - Was 6587989 - B
