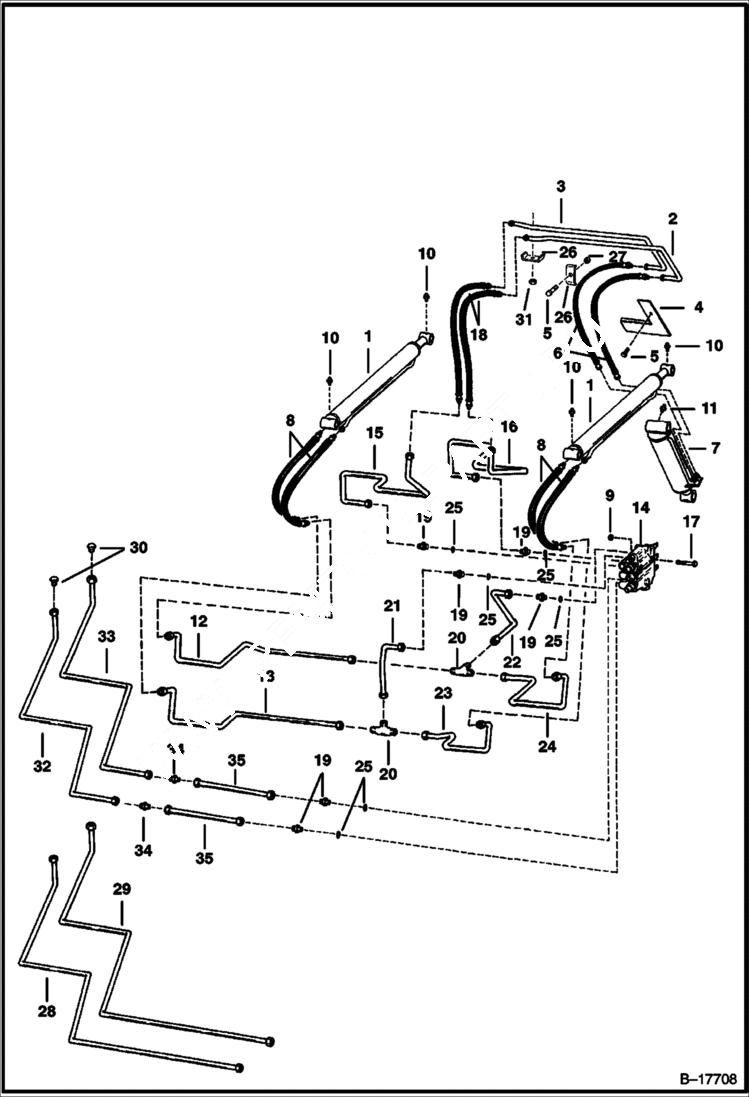

Запчасти Bobcat 500s HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ B6942 - lift

2

6553159

TUBE

3

6553160

TUBE

4

6553422

COVER

5

84G3724

BOLT Was 84G003720B - B

6

6553204

HOSE

7

CYLINDER See Illustration TILT CYLINDER/ C2868 - tilt

8

6553244

HOSE

9

85D5

NUT 5

10

11H15

GREASE FITTING

11

10H25

FITTING, GREASE 5

12

6564511

TUBE

13

6564510

TUBE

14

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17711 - hydraulic

15

6564509

TUBE

16

6564508

TUBE

17

17C560

BOLT

18

6553454

HOSE

19

731794

CONNECTR W/Ref. 25

20

10K6

FITTING

21

6564479

TUBE

22

6564478

TUBE

23

6564480

TUBE

24

6564481

TUBE

25

79K10

O RING 10

26

6502203

CLAMP

27

85D6

NUT, 5

28

TUBE NLA - Auxiliary - Order Ref. 32, (1) Each Of Ref. 34 & 35 - Was 6564512 - A

29

TUBE NLA - Auxiliary - Order Ref. 32, (1) Each Of Ref. 34 & 35 - Was 6564513 - A

30

6518121

PLUG

31

59D6

NUT

32

6709867

TUBE

33

6709868

TUBE

34

87F6

FITTING

35

6709866

TUBE
