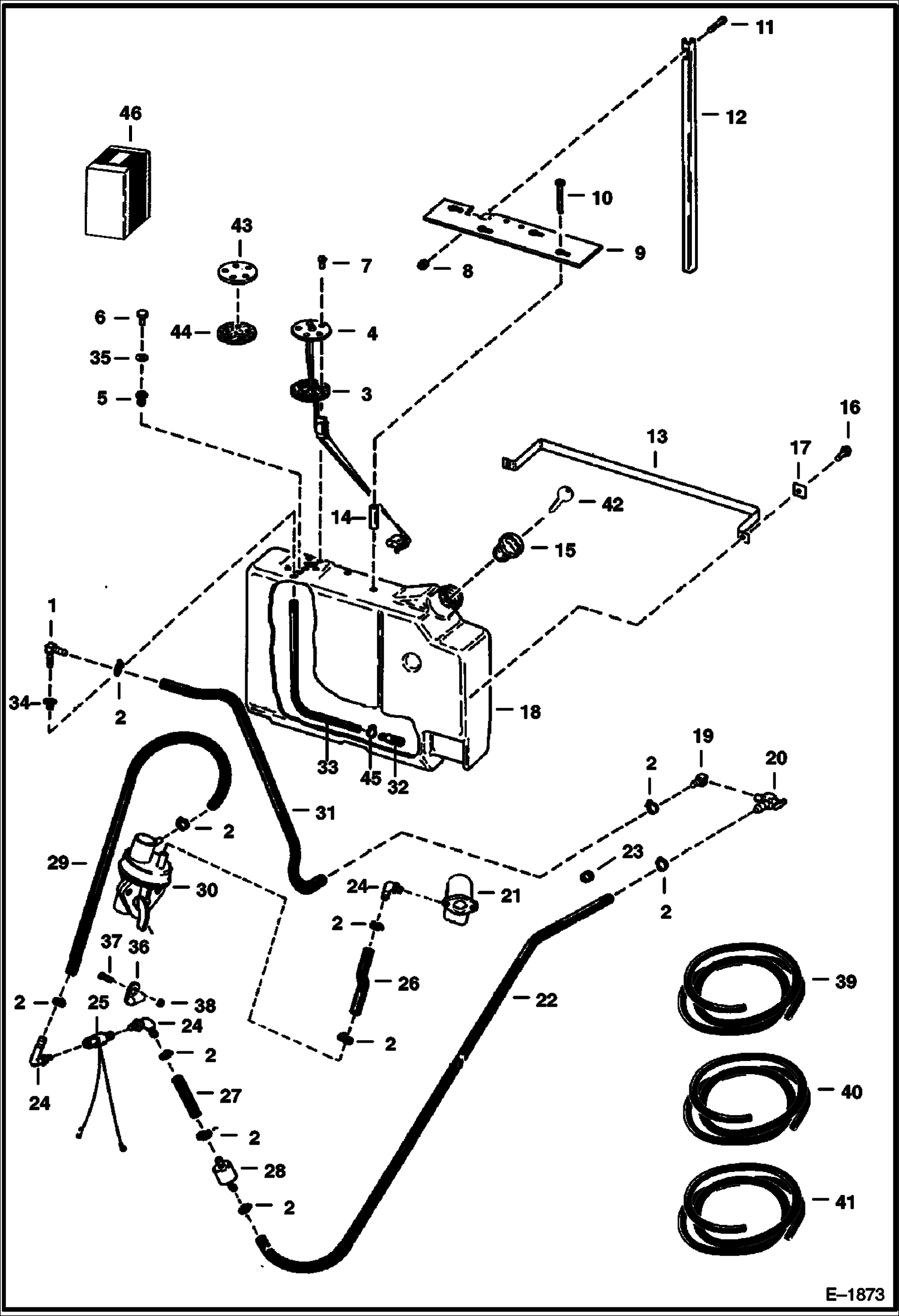

Запчасти Bobcat 500s FUEL SYSTEM MAIN FRAME

1

6598908

ELBOW Was 6681462 - A

2

42HS04

CLAMP, HOSE Was 6515575 - A

3

6630972

GASKET

4

6568175

SENDER, FUEL Ref 3 fuel level

5

1308362

WELL NUT

6

17C414

BOLT

7

SCREW NLA - Was 84G001010B - A

8

12D10

NUT

9

6567896

SHIELD

10

89G544

SCREW

11

87G1008

SCREW Was 85G001008B - B

12

6567897

HOUSING

13

6562559

BAND

14

6567898

SPACER

15

6632468

CAP

15

CAP NLA - locking - W/Ref. 42 - Code GC020 - Was 6654373 - A

15

6662770

CAP locking - W/Ref. 42 - Code PK510

16

84G3720

BOLT

17

6559447

WASHER square

18

6567909

TANK

19

6598753

ELBOW

20

6632593

VALVE shut-off

21

6649548

CARBURETOR See Illustration CARBURETOR/ C3080A See Illustration CARBURETOR/ C3080

22

HOSE NLA - 48'' (1219,2 mm) long - Order Ref. 40

23

6515603

GROMMET

24

6515156

CONNECTOR Was 6624564 - D

25

7024822

SOLENOID, FUEL Was 6559117 - A

26

HOSE NLA - 9''(228,6 mm) long

27

HOSE NLA - 3.25'' (82,6 mm) long - Order Ref. 40

28

FILTER NLA - Was 6511393 - A

29

HOSE NLA - 21'' (533,4 mm) long - Order Ref. 40

30

6646520

FUEL PUMP See Illustration FUEL PUMP/ B12988 See Illustration FUEL & WATER PUMP/ B12291

31

HOSE NLA - 35'' (889 mm) long - Order Ref. 39

32

6650239

SCREEN, FUEL PICKUP Was 6598911 - A

33

HOSE NLA - 21'' (533,4 mm) long - Order Ref. 41 - A

34

6553411

BUSHING 0.38'' ID

35

25E13

WASHER 5

36

30H57

CLAMP

37

7C512

SCREW

38

61D5

NUT

39

6577822

HOSE bulk - sold per foot

40

6577821

HOSE bulk - sold per foot

41

6569752

HOSE BULK/FT bulk - sold per foot

42

6654374

KEY Code GC020

42

6587458

KEY Code PK510

43

6519201

GASKET

44

6571711

FLANGE

45

6661213

RING, COMPRESSION
