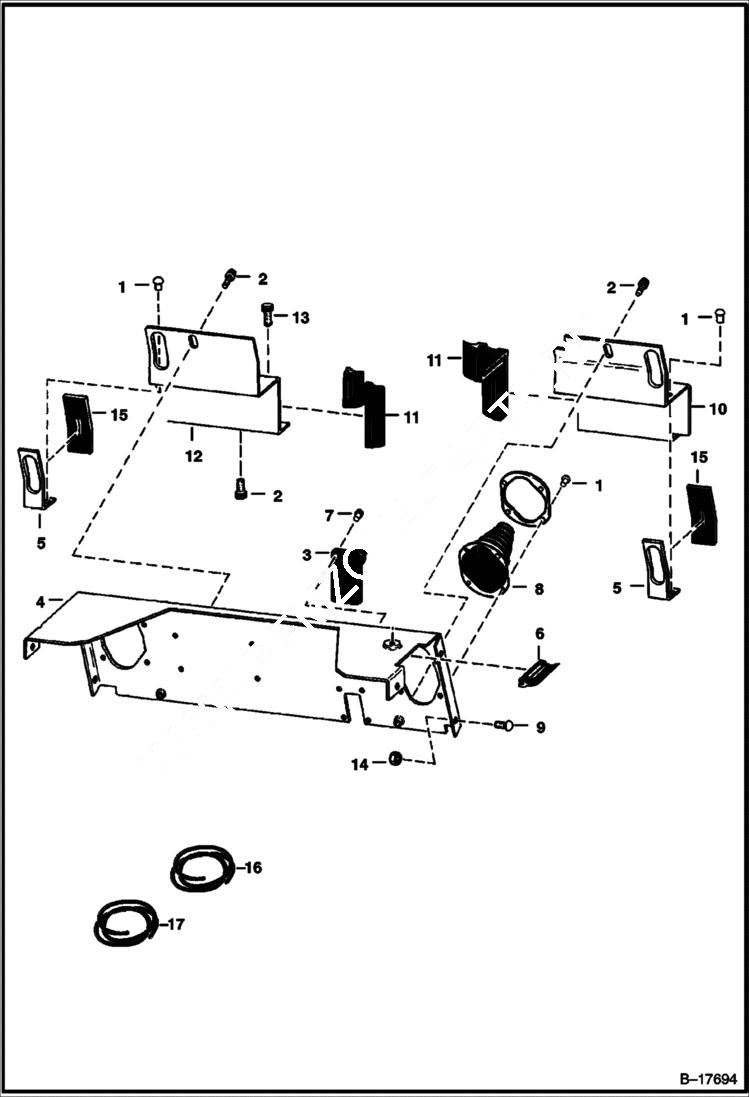

Запчасти Bobcat 500s PANELS MAIN FRAME

1

6630207

RIVET 5 Was 6598092 - A

2

84G3716

SCREW 5

3

BOOT NLA - W/Metal Insert - Was 6571648 - A

4

6564672

SHIELD

5

6564982

RETAINER

6

MOULDING NLA - 4.5'' (11,4 mm) long - Order Ref. 16

7

6630207

RIVET 5 Was 6512797 - A

8

6532127

BOOT rubber - Was 6563540 - A

9

37C616

BOLT carriage - Was 6514537 - B

10

6564670

SHIELD

11

MOULDING NLA - 9.5'' (24,1 mm) long - Order Ref. 17

12

6564671

SHIELD

13

84G3712

BOLT 5

14

57D6

NUT 5

15

6564976

SEAL foam block

16

6646705

SEAL bulk - Sold per foot - Was 6559764 - B

17

6513152

SEAL bulk - sold per foot
