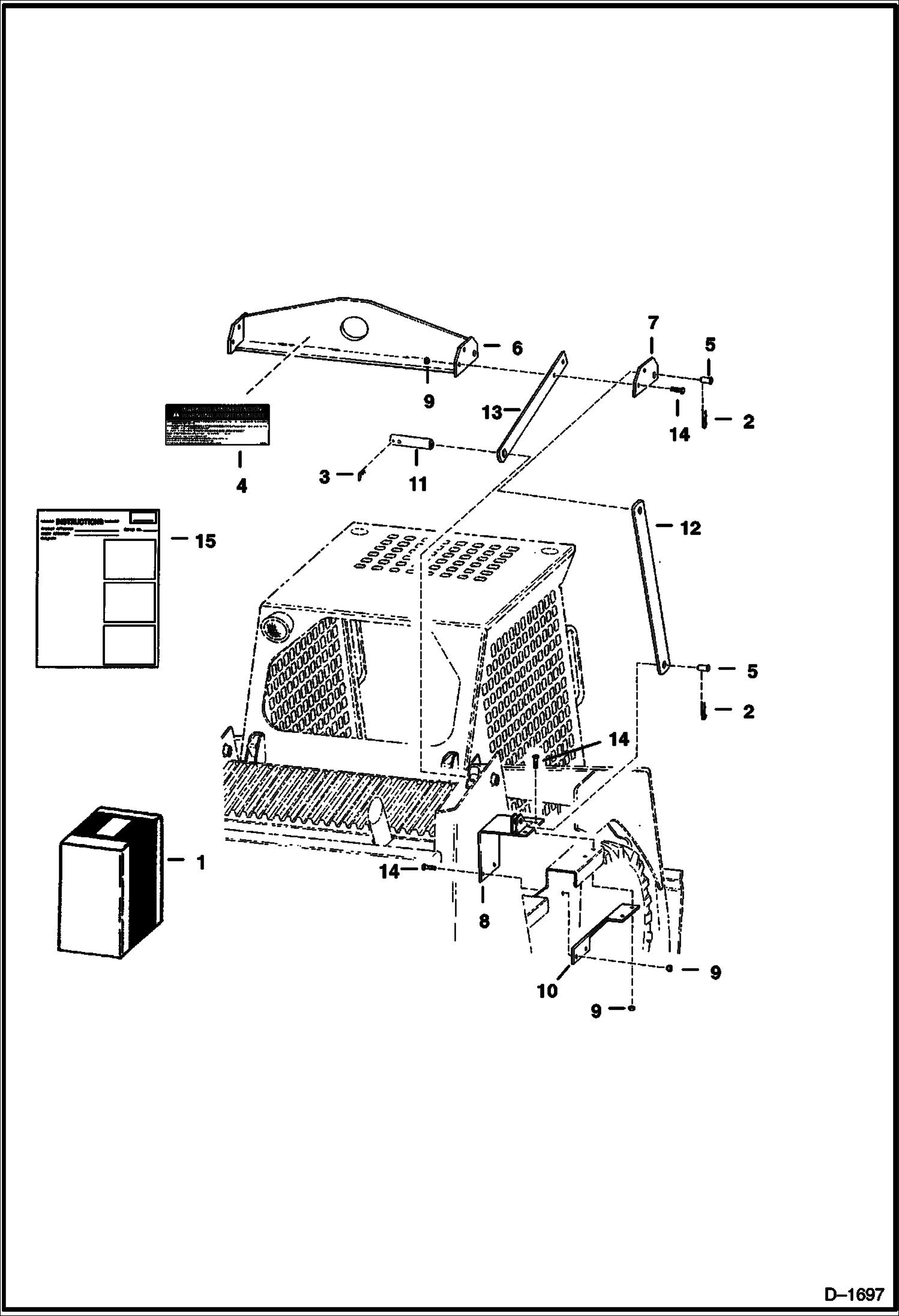

Запчасти Bobcat 500s SINGLE POINT LIFT ACCESSORIES & OPTIONS

1

6568281

KIT Ref. 2-14

2

1320075

PIN, COTTER

3

6005562

PIN

4

6565932

DECAL

5

17C824

BOLT 5

6

6568182

ANGLE

7

6568184

MOUNT

8

6568188

MOUNT R.H.

8

6568189

MOUNT L.H.

9

85D8

NUT, 5

10

6568190

BRACE

11

6568193

PIN

12

6568278

ARM

13

6568279

ARM

14

6567838

PIN

15

6566946

INSTRUCT
