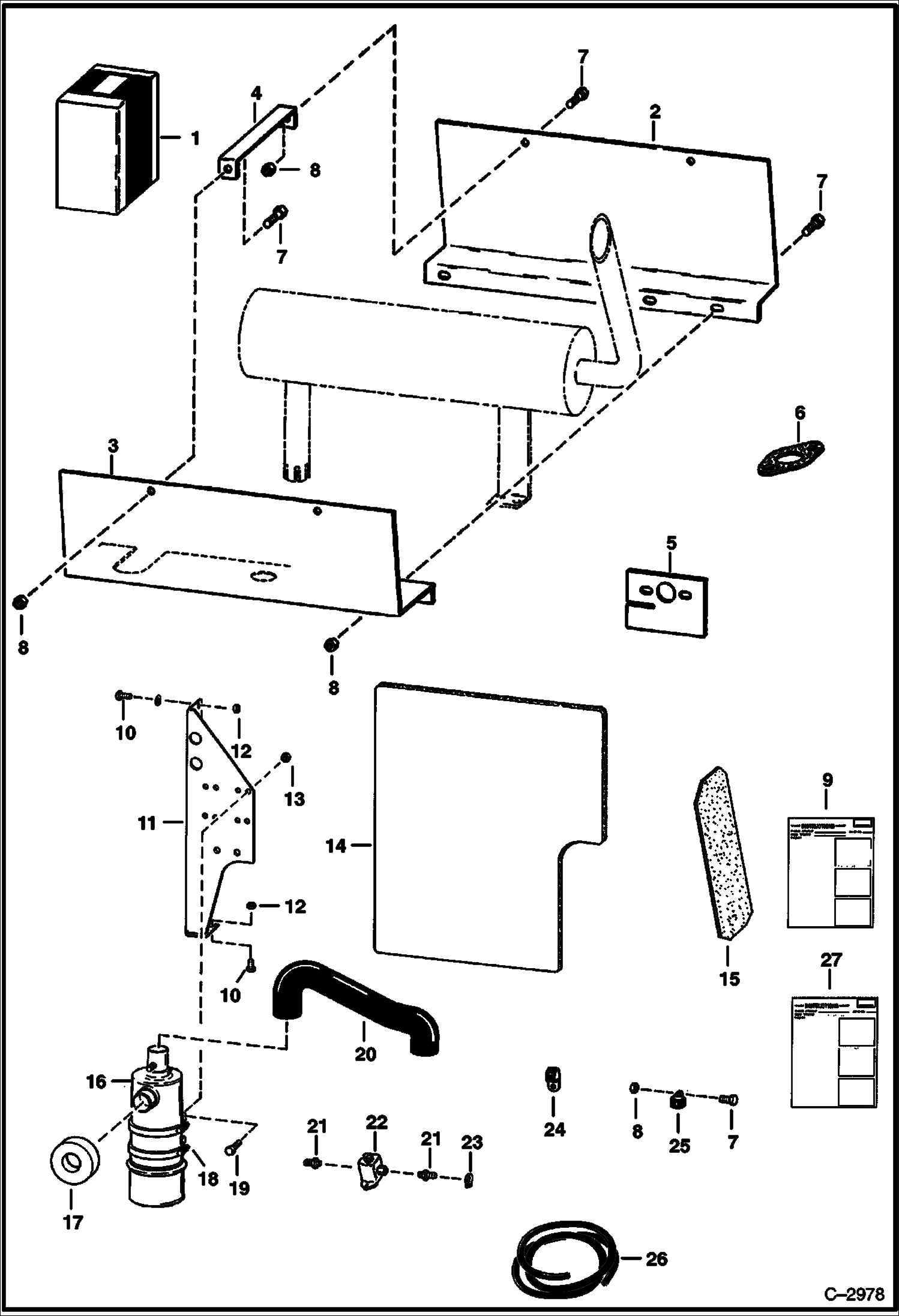

Запчасти Bobcat 500s VAPOR LOCK & HEAT SHIELD KIT ACCESSORIES & OPTIONS

1

6571519

KIT heat shield - Ref. 2-9 & 21-23

1

6571563

KIT vapor lock - Ref. 2-27

2

6571511

SHIELD

3

6571512

SHIELD

4

6571513

STRAP

5

6571514

SHIELD

6

6518866

GASKET carb.

7

17C412

BOLT 5

8

61D4

NUT 5

9

INSTRUCTIONS NLA - Print Instructions from BASS - Was 65702019 - A

10

17C612

BOLT 5

11

6563905

MOUNT

12

61D6

NUT 5

13

61D5

NUT

14

6564404

INSULATION

15

6565012

INSULATION

16

6631693

AIR CLEANER

17

6564538

INSULATION

18

335902

BAND

19

17C510

BOLT

20

6564537

HOSE

21

6505813

CONNECTOR

22

6558398

FUEL PUMP Electric

23

42HS04

CLAMP, HOSE Was 6515575 - A

24

30H34

CLAMP

25

30H33

CLIP

26

6577821

HOSE bulk - sold per foot - Was 672221 - A

27

INSTRUCTIONS NLA - Print Instructions from BASS - Was 6570220 - A
